JTS CS-1CU/2xD7P-20 Conference System Package

The JTS CS-1CU/2xD7P-20 is a comprehensive conference system package designed to facilitate organized and efficient meetings. This package combines the CS-1CU Control and Power Supply Unit with two D7P-20 extension cables, offering an integrated solution for conference discussions.

Package Components

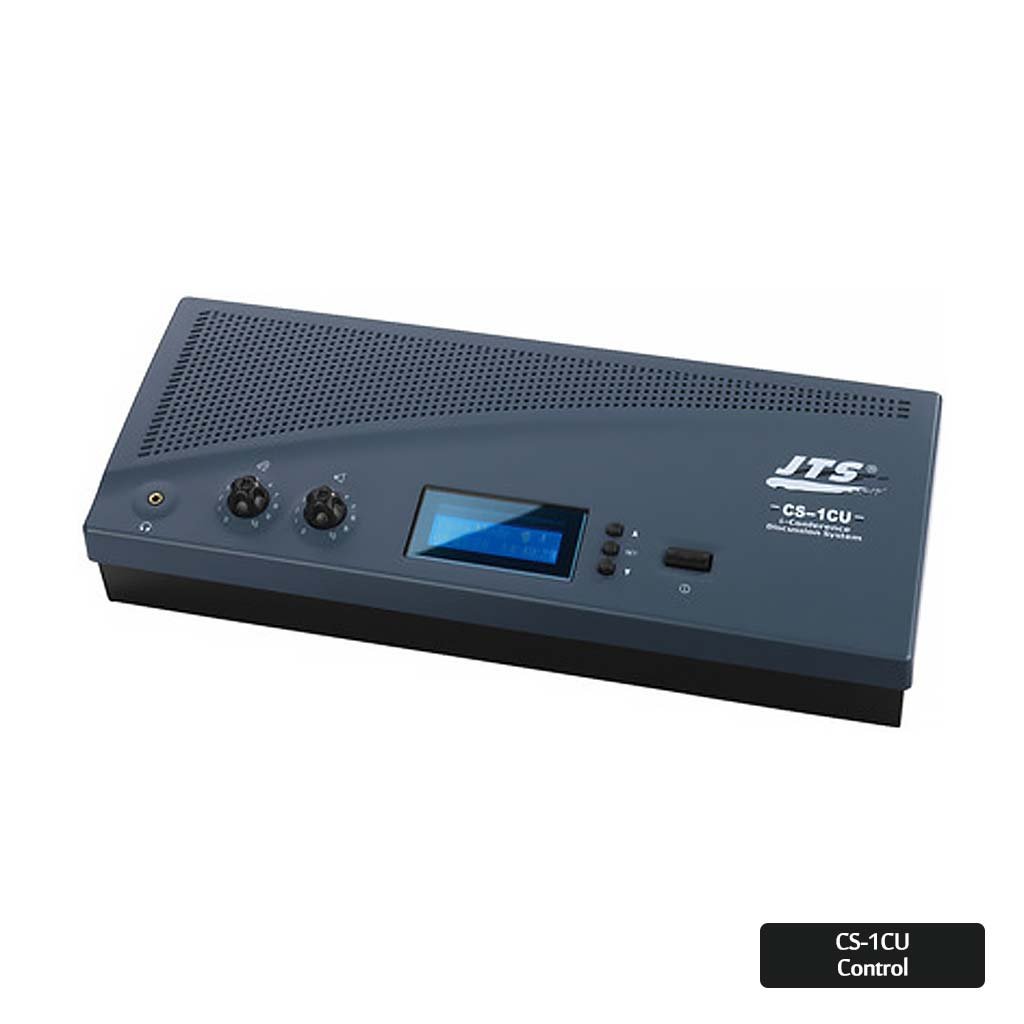

CS-1CU Control and Power Supply Unit

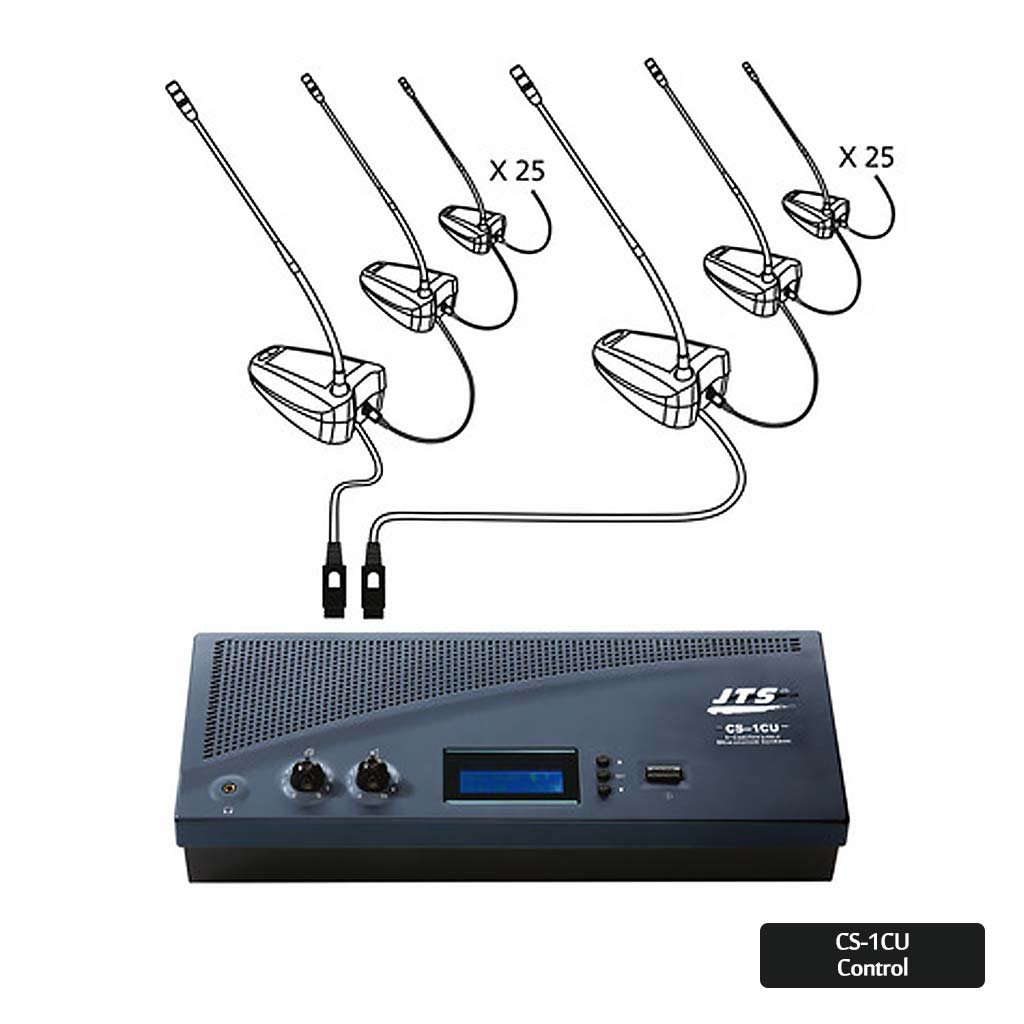

The CS-1CU serves as the central hub of the CS-1 i-Conference Discussion System, managing microphone stations and connecting various audio inputs and outputs.

Key Features:

• Power Supply: Operates on AC 100-240V, 50-60Hz, consuming 90 VA.

• Microphone Connectivity: Supports up to 50 chairman and delegate units through two 7-pin DIN jacks.

• Audio Connections: Offers multiple RCA inputs and outputs for line signals, recorders, equalizers, and telephone couplers.

• External Microphone Input: Includes an XLR input with phantom power for connecting external microphones.

• Dimensions and Weight: Measures 360 mm (W) x 90 mm (H) x 150 mm (D) and weighs 1.7 kg.

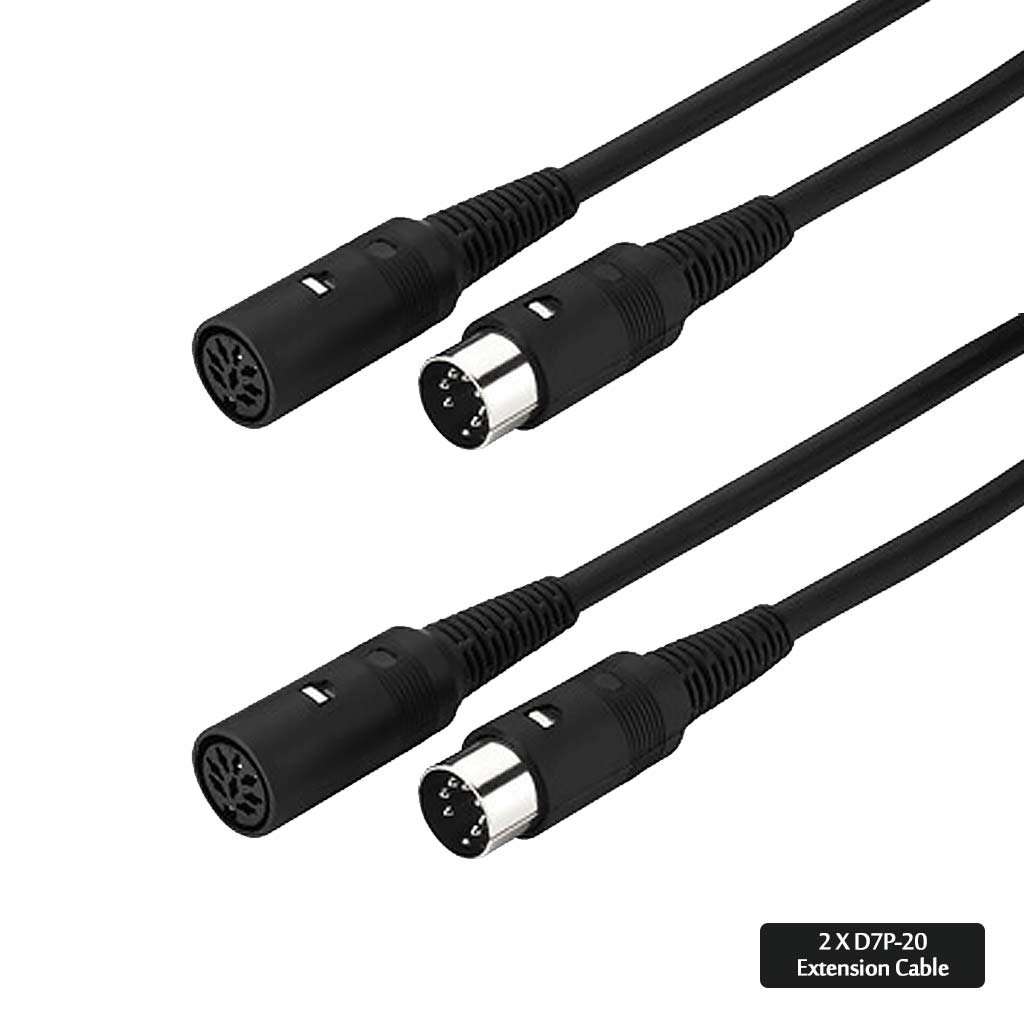

D7P-20 Extension Cables (2 units)

The D7P-20 extension cables are designed to extend the operational range of the conference system, ensuring reliable connectivity between the control unit and microphone stations.

Specifications:

• Length: Each cable is 20 meters long.

• Connectors: 7-pin DIN plug to 7-pin DIN jack, facilitating seamless connection between system components.

• Compatibility: Suitable for use with CS-1CU, CS-1CH, and CS-1DU units.

• Weight: Each cable weighs approximately 1.32 kg.
