The JTS US‑8001D + PT‑920B + CM‑214Ui is a reliable and professional wireless microphone system designed for presenters, instructors, and performers. The system includes the US‑8001D diversity receiver, PT‑920B body-pack transmitter, and the lightweight CM‑214Ui headset microphone. Operating on 16 UHF PLL channels, the system offers clear audio transmission with built-in noise and pilot-tone squelch. The compact half-rack receiver offers dual antenna diversity and balanced/unbalanced outputs, while the body-pack transmitter includes gain control, a lock function, and LCD status display. The cardioid headset microphone ensures excellent vocal clarity and feedback rejection. Whether on stage or in the classroom, this system delivers dependable wireless performance.
16 selectable PLL UHF channels (502–960 MHz).
US‑8001D receiver with full diversity reception and LED indicators.
Balanced XLR and unbalanced ¼″ outputs with adjustable audio level.
Pilot-tone squelch and noise mute for stable and clear signal.
Compact half-rack size and DC power input for easy integration.
PT‑920B body-pack transmitter with 10 mW RF output.
Frequency stability ±10 kHz and deviation up to ±48 kHz.
Gain control, lock switch, and LCD display for channel and battery status.
Uses 2 × AA batteries with long operating time.
CM‑214Ui headset mic with cardioid pattern for focused vocal pickup.
Comfortable, secure fit with clear and extended audio response.
US‑8001D Receiver:
Frequency Range: 502–960 MHz
Tuning Method: PLL synthesized, 16 channels
Signal-to-Noise Ratio: > 105 dB
Total Harmonic Distortion: < 0.6% @ 1 kHz
Audio Frequency Response: 40–18,000 Hz
Outputs:
Balanced XLR (600 Ω, –12 dB)
Unbalanced ¼″ jack (150 Ω)
Controls: Power switch, channel selection, audio level knob
Indicators: RF/AF LEDs, antenna A/B status
Power Supply: 12–18 V DC, 150 mA
Dimensions: 21.0 cm × 4.0 cm × 17.1 cm
Weight: 455 g
PT‑920B Body-Pack Transmitter:
Frequency Range: 502–960 MHz
RF Output Power: 10 mW
Frequency Stability: ±10 kHz
Max Deviation: ±48 kHz
Audio Frequency Response: 50–16,000 Hz
Signal-to-Noise Ratio: > 105 dB
Total Harmonic Distortion: < 0.6%
Controls: Power switch, channel buttons, gain control, lock switch
Display: LCD showing channel and battery status
Power Source: 2 × AA batteries
Battery Life: Approx. 25–30 hours
Dimensions: 7.0 cm × 19.0 cm × 3.0 cm
Weight: 130 g (without batteries)

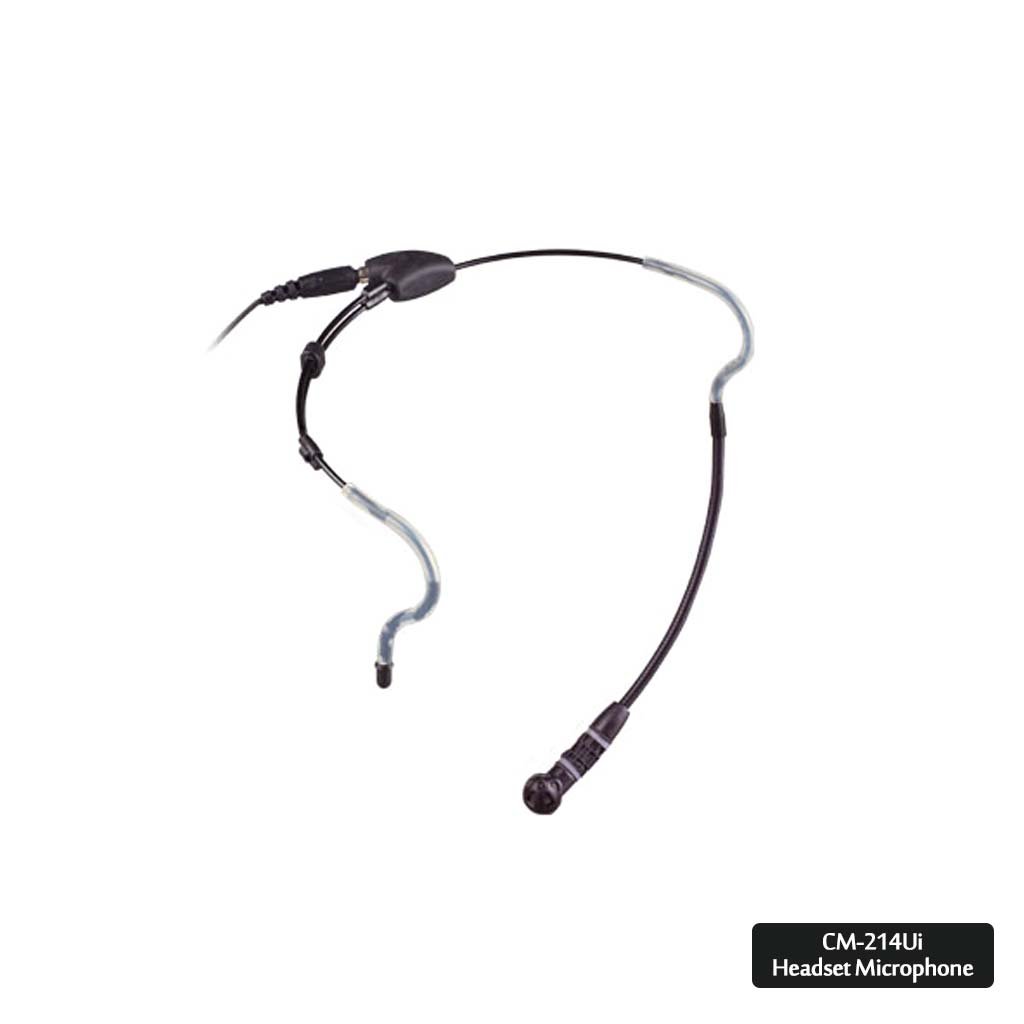

CM‑214Ui Headset Microphone:
Connector: 4-pin mini XLR
Frequency Response: 30 Hz – 18 kHz
Sensitivity: –60 ± 3 dB (1 kHz)
Polar Pattern: Cardioid
Design: Lightweight, secure over-the-ear fit
Weight
1.5 kg
