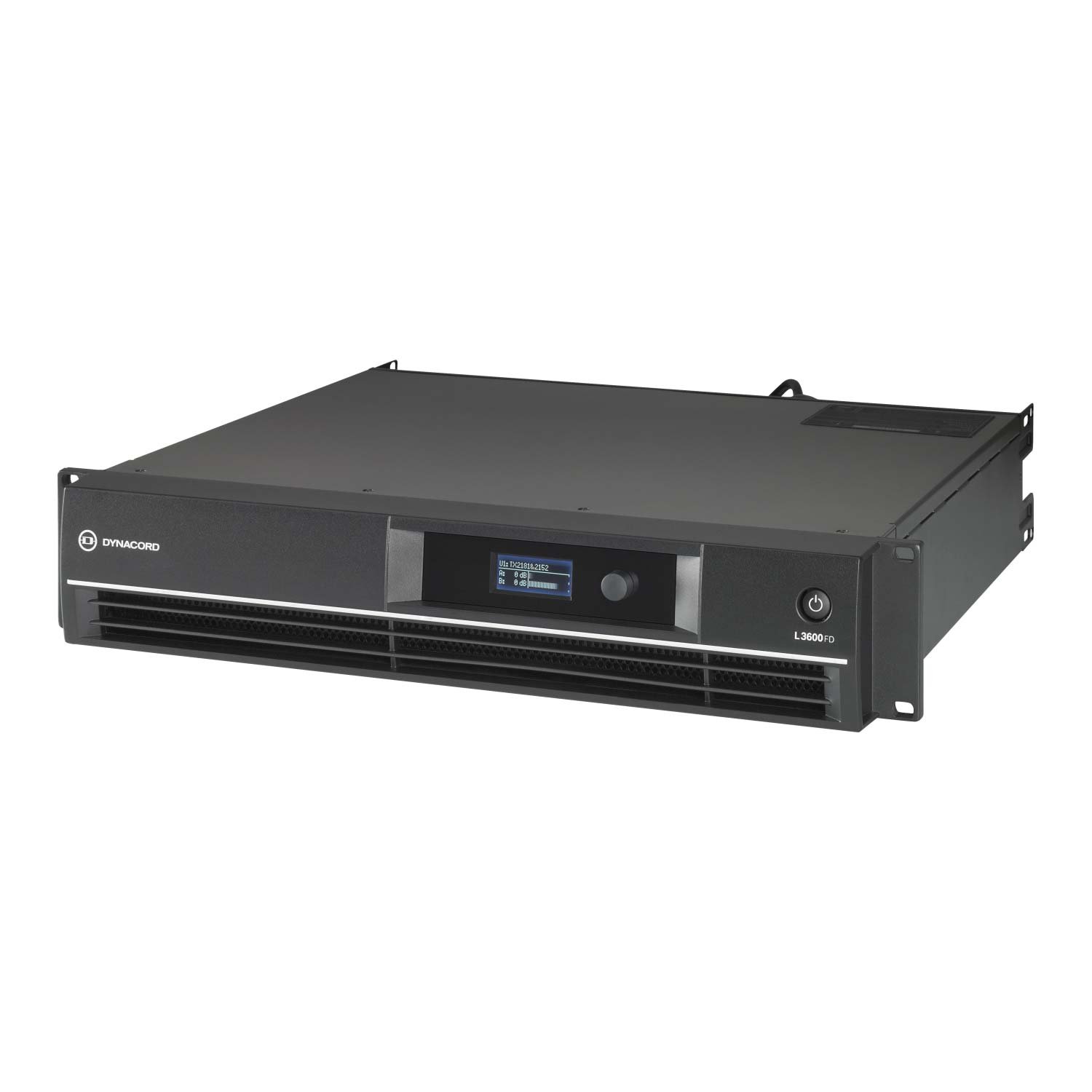

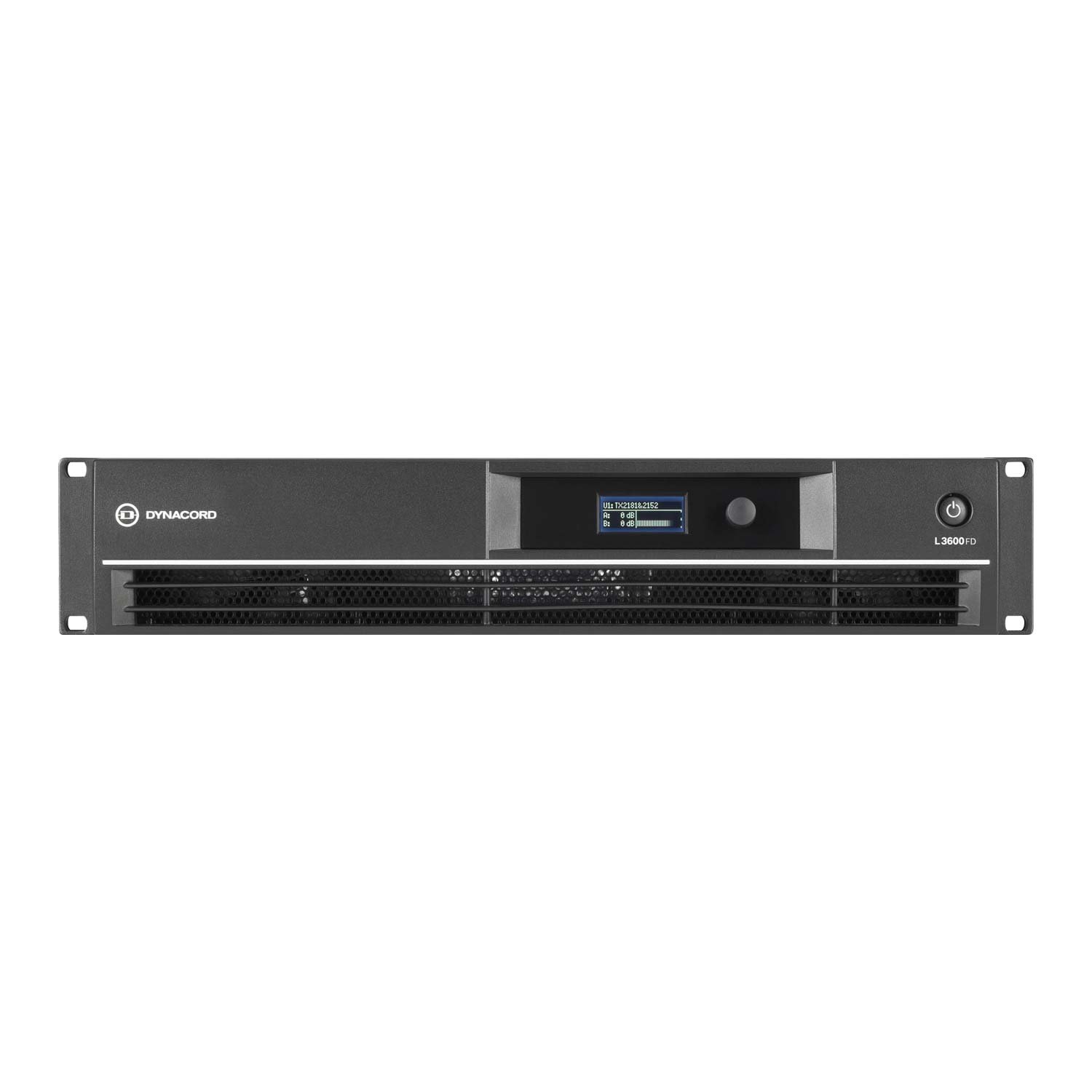

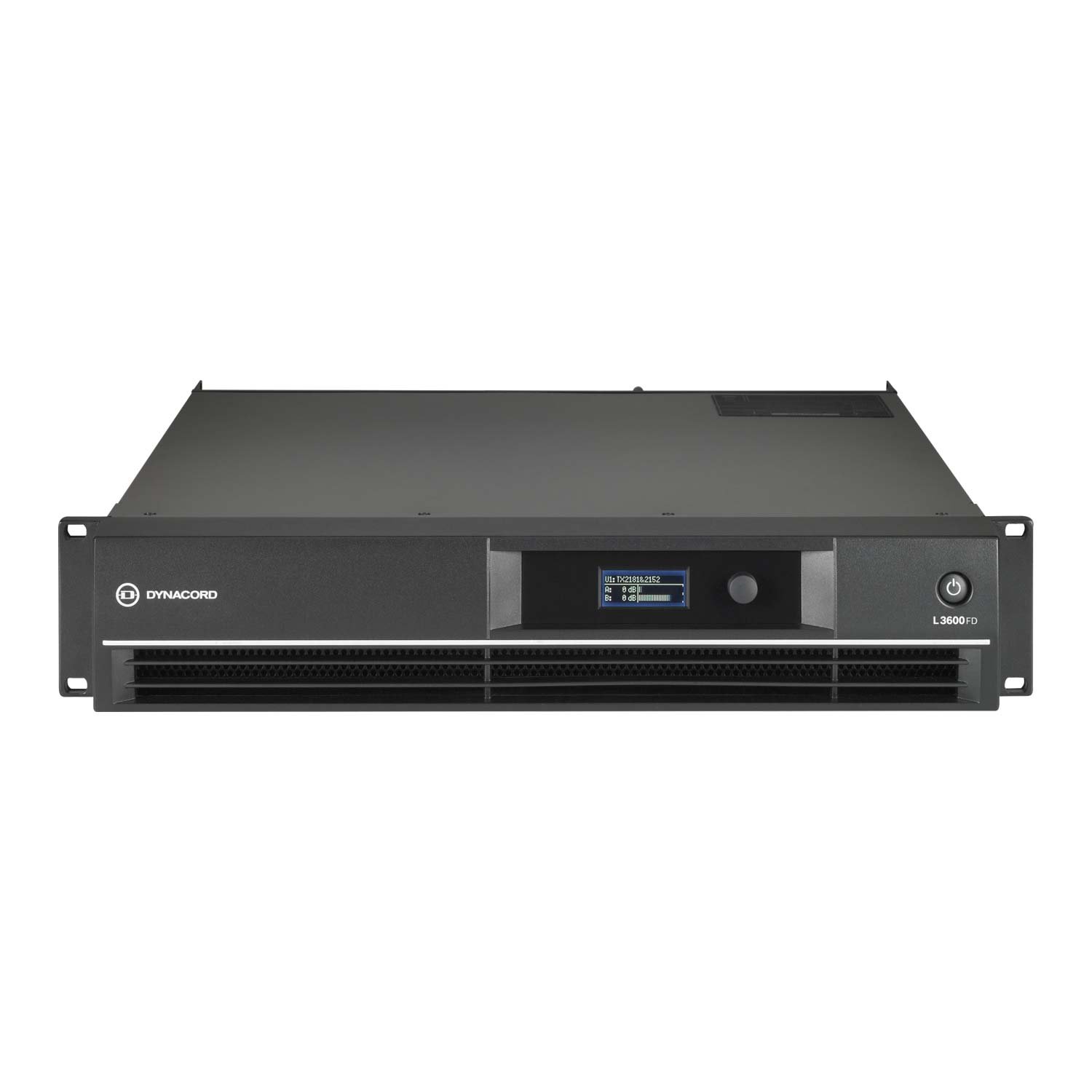

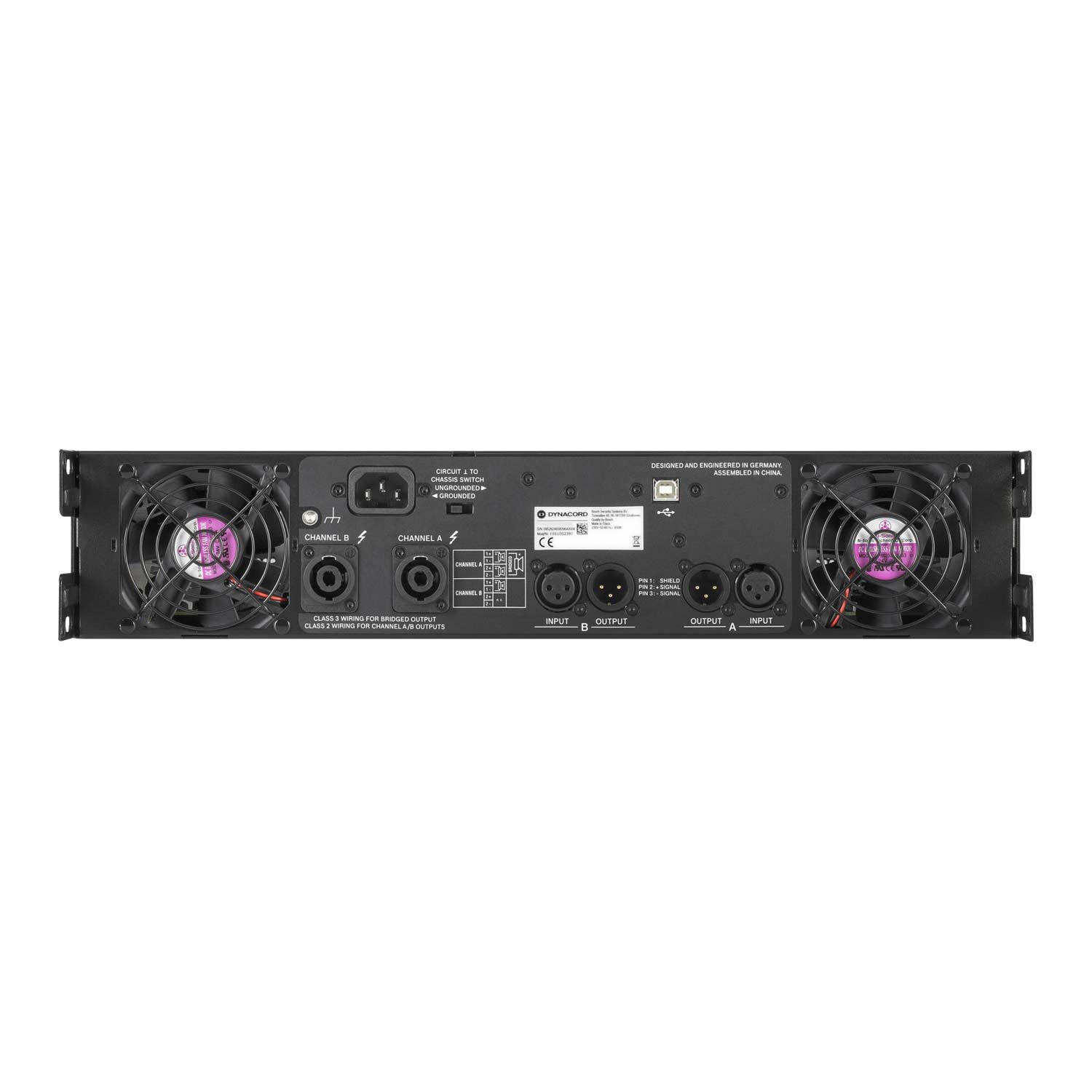

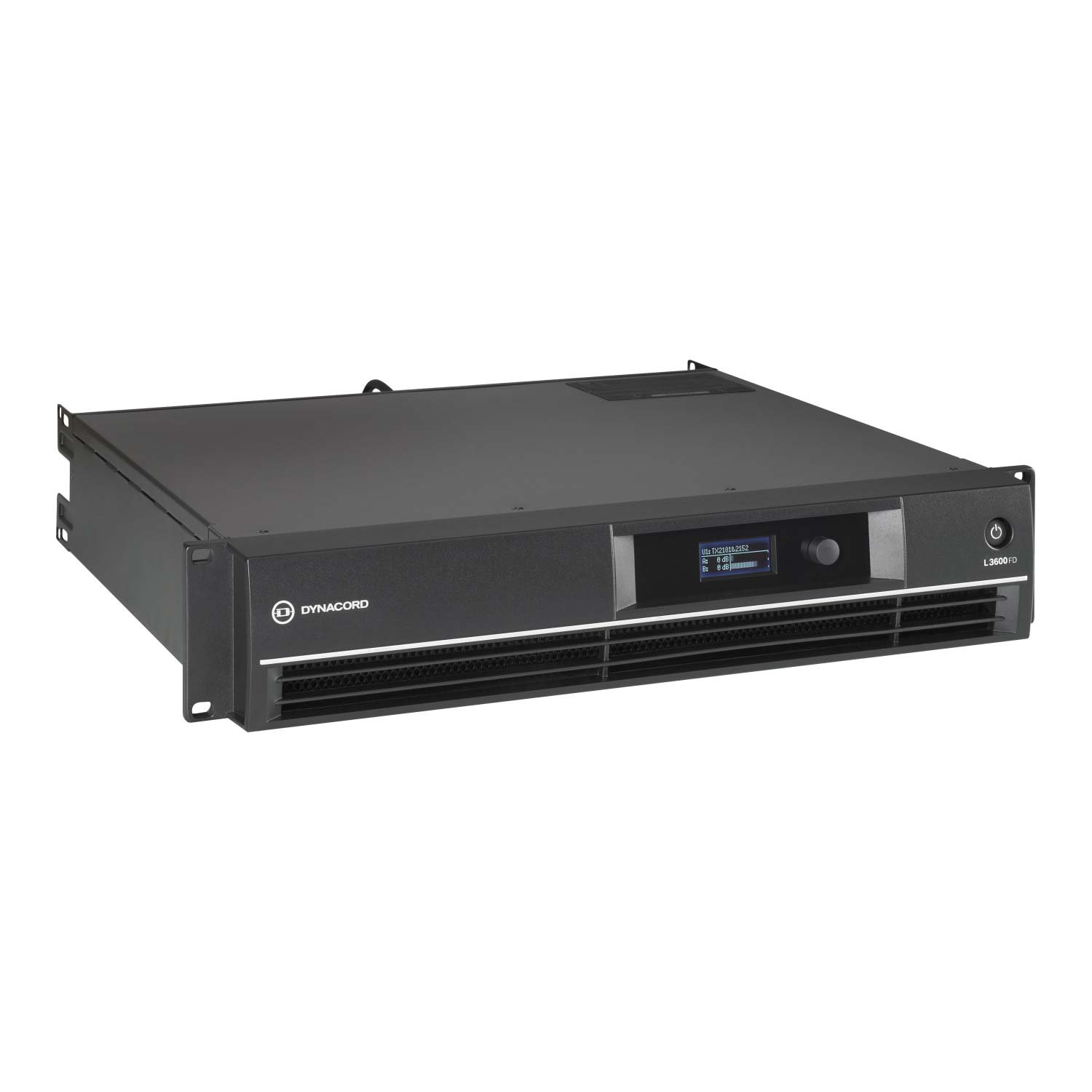

Dynacord L3600FD DSP 2 x 1800W Power Amplifier

Power Output:

• Load Impedance: 2 Ω / 2.7 Ω / 4 Ω / 8 Ω​

• Maximum Output Power (Single Channel): 3200 W / 2700 W / 1800 W / 950 W​

• Maximum Output Power (Dual Channel): 3000 W / 2500 W / 1700 W / 900 W​

• Maximum Output Power (Bridged): Not applicable / Not applicable / 6000 W / 3400 W​

Performance:

• Maximum RMS Voltage Swing (THD = 1%, 1 kHz): 90.6 V​

• Voltage Gain (Ref. 1 kHz): 32.0 dB​

• Total Harmonic Distortion (THD) at 1200 W/4 Ω (MBW = 80 kHz, 1 kHz): < 0.05%​

• Intermodulation Distortion (IMD-SMPTE, 60 Hz, 7 kHz): < 0.1%​

• DIM30 (3.15 kHz, 15 kHz): < 0.05%​

• Maximum Input Level: +21 dBu​

• Crosstalk (ref. 1 kHz, at 100 W/4 Ω): < -80 dB​

• Frequency Response (ref. 1 kHz): 10 Hz to 21 kHz (±1 dB)​

• Input Impedance (Active Balanced): 20 kΩ​

• Signal-to-Noise Ratio (A-weighted, ref to Max. Output Power @ 8 Ω):

  109 dB

  ​

• Output Noise (A-weighted): < -68 dBu​

Amplifier Topology:

• Output Stage: Class H​

Power Requirements:

• Voltage: 240 V, 230 V, 120 V, or 100 V; 50 Hz to 60 Hz (factory configured)​

• Power Consumption (⅛ Maximum Output Power @ 4 Ω): 850 W​

• Mains Fuse: 240 V/230 V: T15AH; 120 V/100 V: T30AH​

Protection Features:

• Audio limiters​

• High temperature protection​

• DC detection​

• HF protection​

• Back-EMF protection​

• Peak current limiters​

• Inrush current limiters​

• Turn-on delay​

Cooling System:

• Front-to-rear airflow with 3-stage fans​

Environmental Conditions:

• Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)​

• Safety Class: I​

Physical Specifications:

• Color: Black​

• Dimensions (W x H x D): 48.3 cm x 8.8 cm x 46.24 cm​

• Weight: 18.2 kg​

Signal Processing:

• FIR filters​

• Audio limiters​

• Output and array delay​

• 10-band user PEQ​

• 5-band array PEQ per channel​

• Load impedance monitoring​

Remote Control:

• Compatible with SONICUE sound system software (requires firmware 2.0)
