The Wharfedale CPD 3600 is a professional-grade power amplifier designed for medium to large-sized PA systems, both for mobile and fixed installations. It delivers 870W RMS per channel at 8 Ohms and 1300W at 4 Ohms in stereo mode. In bridged mono mode at 4 Ohms, it provides 3600W RMS, suitable for powering high-demand speakers. Utilizing Class H technology, the CPD 3600 offers efficient power delivery with reduced heat generation. Protection features such as thermal, overcurrent, DC, and short-circuit safeguards ensure safe operation. The amplifier is equipped with user-friendly indicators and a variable-speed fan for optimal cooling.
Wharfedale CPD 3600 Power Amplifier
34,350 EGP
✔️ Delivers 870W RMS per channel at 8 Ohms in stereo mode.
✔️ Provides 1300W RMS per channel at 4 Ohms.
✔️ Bridgeable to 3600W RMS at 4 Ohms.
✔️ Class H technology for efficient high-power output.
✔️ Includes comprehensive protection features.
- Top Brands
- Secure Payments
- Cash On Delivery Available
- Stereo Power Output: Delivers 870W RMS at 8 Ohms and 1300W RMS at 4 Ohms per channel.
- Bridged Mono Output: Provides 3600W RMS at 4 Ohms for demanding applications.
- Class H Technology: Ensures efficient power output with reduced heat generation.
- Protection Circuitry: Includes thermal, overcurrent, DC, and short-circuit protection for safe operation.

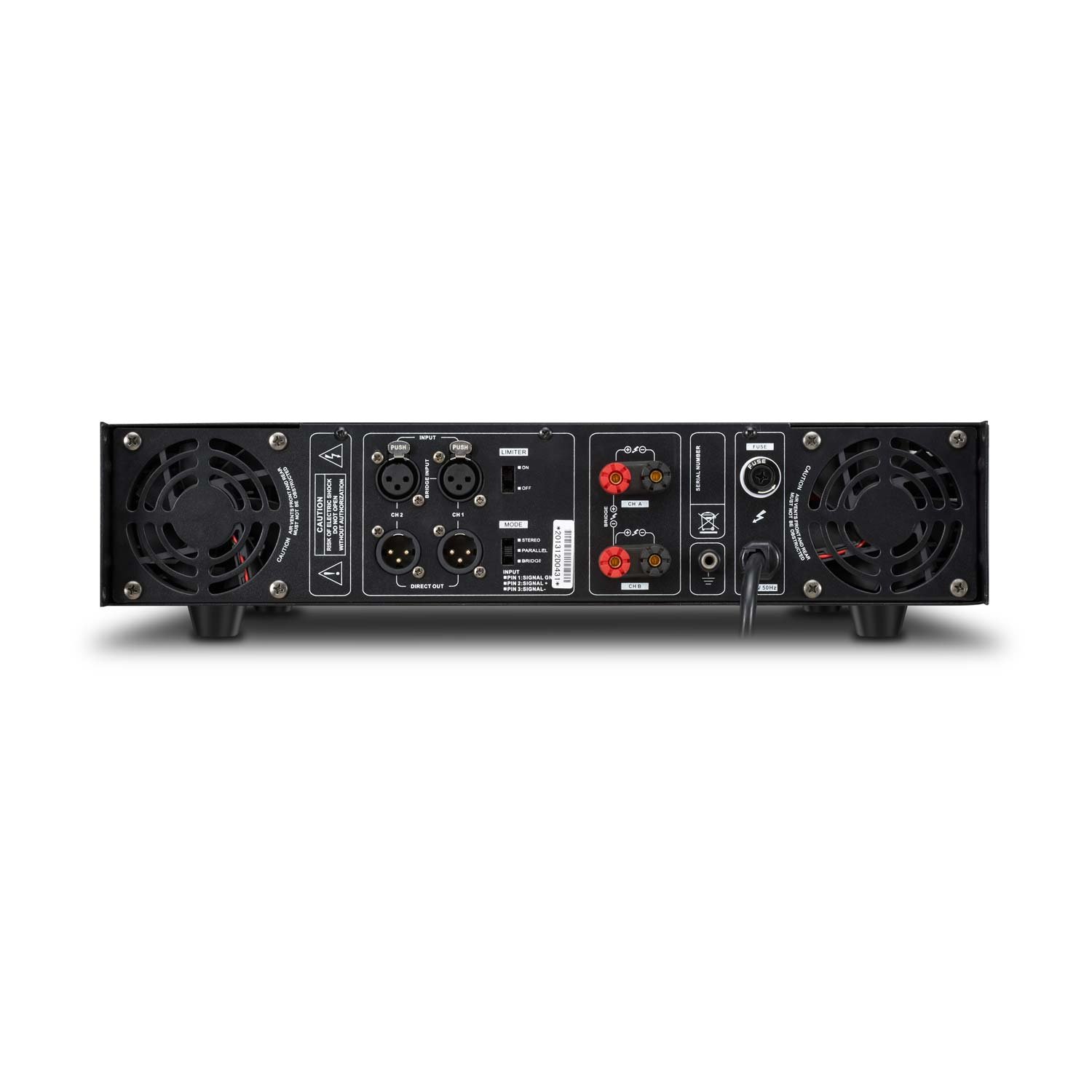

- Connectivity: Features 2 x XLR inputs, 2 x XLR outputs, and 2 x Speakon outputs for versatile integration.
- User Indicators: Equipped with status and clip LEDs for easy monitoring.
- Cooling System: Incorporates a variable-speed fan with a front-mounted air filter for efficient cooling.
Amplifier Performance:
Stereo Mode:
8 Ohms: 870W RMS per channel.
4 Ohms: 1300W RMS per channel.
Bridged Mono Mode:
4 Ohms: 3600W RMS.
Frequency Response: 20Hz – 30kHz.
Topology: Class H.
Sensitivity: 0dBu (0.775Vrms).
Input Impedance: 20k Ohms.
Maximum Input Level: 22dBu (9.7Vrms).
Slew Rate: >40V/µs.
Crosstalk: <-70dB.
Signal to Noise Ratio: >100dB.
Inputs and Outputs:
Inputs: 2 x XLR balanced inputs.
Outputs: 2 x XLR balanced outputs, 2 x Speakon outputs.
Protection Features:
Switchable limiter.
Thermal protection.
Over-current protection.
Output DC protection.
Output short protection.
Power on/off mute.
Cooling System:
Variable-speed fan with front-mounted air filter for easy maintenance.
| Weight | 26 kg |
|---|---|
| Dimensions | 45.1 × 48.3 × 8.8 cm |
