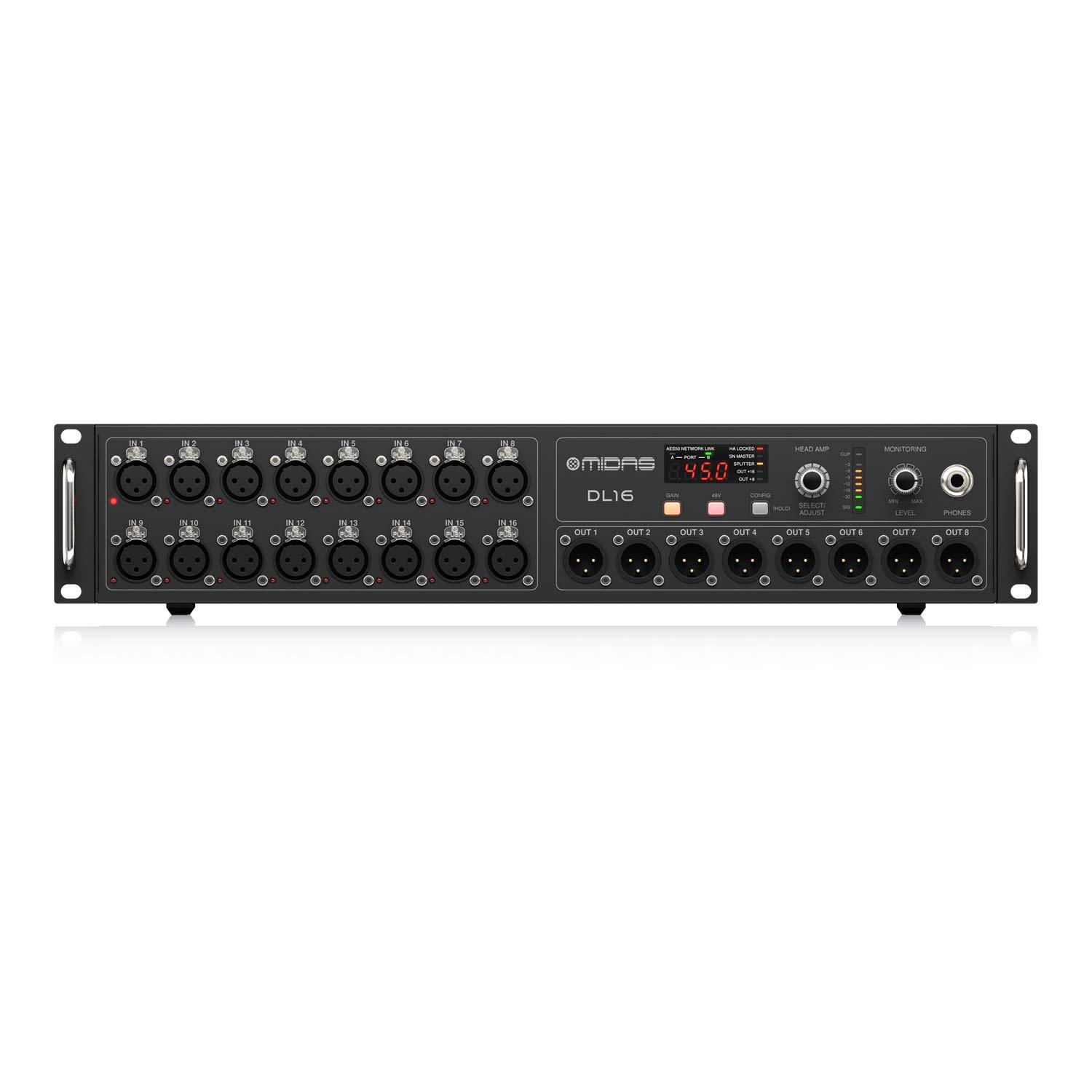

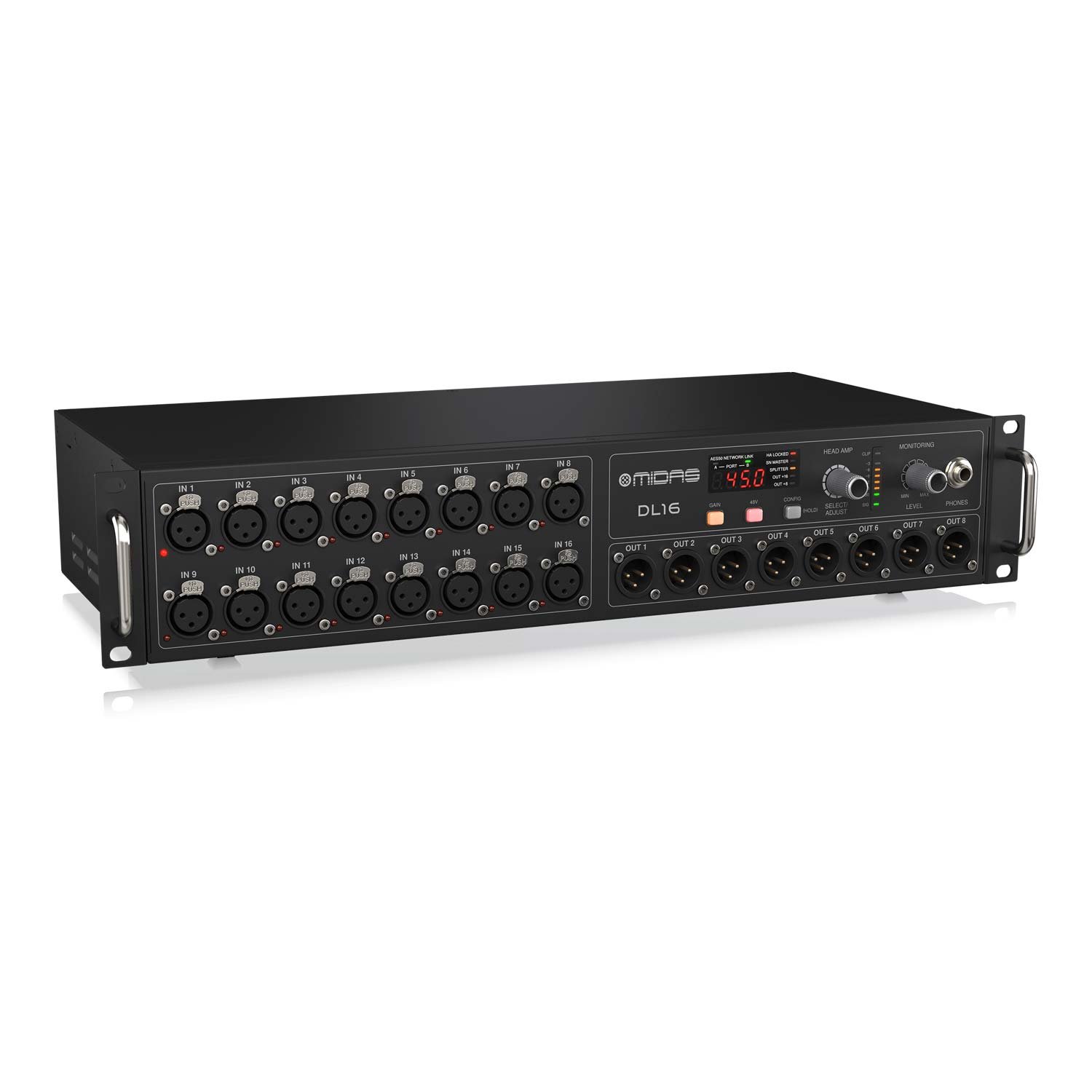

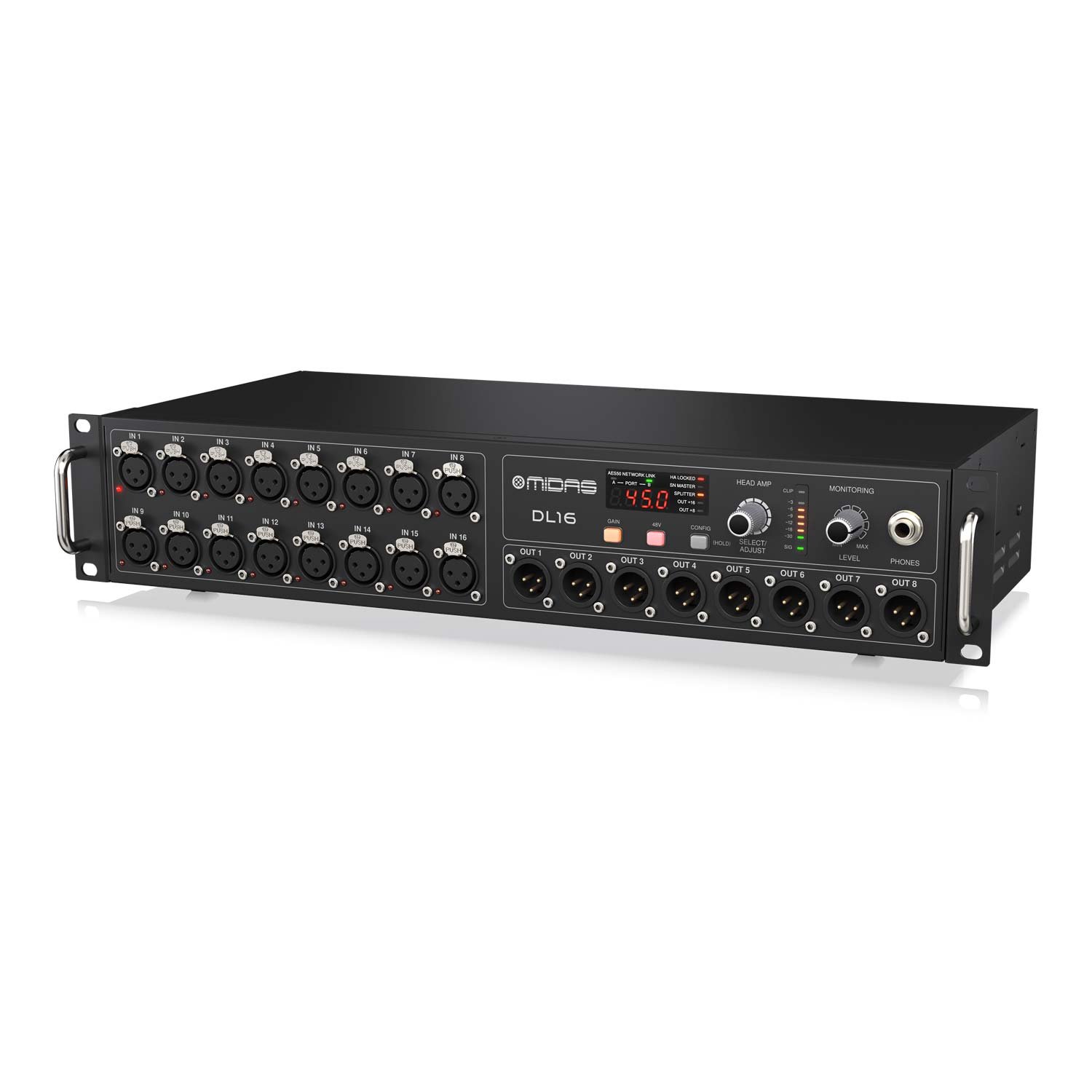

Midas DL16 – Digital Stage Box with 16 Preamps

58,500 EGP

✔️ 16 Midas PRO microphone preamps with phantom power
✔️ 8 balanced XLR outputs
✔️ ULTRANET connectivity for monitoring systems
✔️ Dual AES50 ports for cascading
✔️ Compact 2U rack-mountable design

Add to Wishlist
Add to Wishlist
SKU: DL16 Categories: , Tags: , , , , Brand:
  • Top Brands
  • Secure Payments
  • Cash On Delivery Available

The Midas DL16 is a high-performance digital stage box designed for live sound and recording applications. Featuring 16 Midas PRO preamplifiers, it ensures pristine audio quality with remote-controlled gain and +48V phantom power. The DL16 provides 8 balanced XLR outputs for flexibility in routing audio and integrates with personal monitoring systems via ULTRANET connectivity.

Dual AES50 ports allow for the cascading of up to three DL16 units, while dual ADAT outputs provide 16 channels of digital audio. Its compact 2U rack-mountable design is ideal for touring and fixed installations, making it a versatile choice for professionals in need of high-quality, expandable stage boxes.

    • 16 Midas PRO preamps with remote gain control and phantom power
    • 8 balanced XLR outputs for analog routing
    • Dual AES50 ports for cascading multiple DL16 units
    • ULTRANET connectivity for personal monitoring systems
    • Dual ADAT outputs for digital audio routing
    • Assignably controlled headphone output
    • MIDI In/Out ports for communication with MIDI devices
    • Durable 2U rack-mountable chassis

    Audio Inputs

    • Type: 16 x XLR-3F (microphone/line)

    • Preamplifiers: 16 x Midas PRO with remote-controllable gain and +48V phantom power

    Audio Outputs

    • Analog Outputs: 8 x XLR-3M (balanced line-level)

    • Digital Outputs:

      • ADAT: 2 x Optical TOSLINK (up to 16 channels)

      • AES50: 2 x Neutrik etherCON (networking and cascading)

    Networking

    • ULTRANET: 1 x Neutrik etherCON (personal monitoring system integration)

    • MIDI: In/Out via 5-pin DIN connectors

    Monitoring

    • Headphone Output: 1 x 1/4″ TRS (assignable to any input/output)

    Controls and Indicators

    • Front Panel:

      • Gain control for each input

      • +48V phantom power switches per input

      • 8-segment LED meters for each input/output

      • 7-segment display for channel status

      • Headphone level control

      • System status LEDs

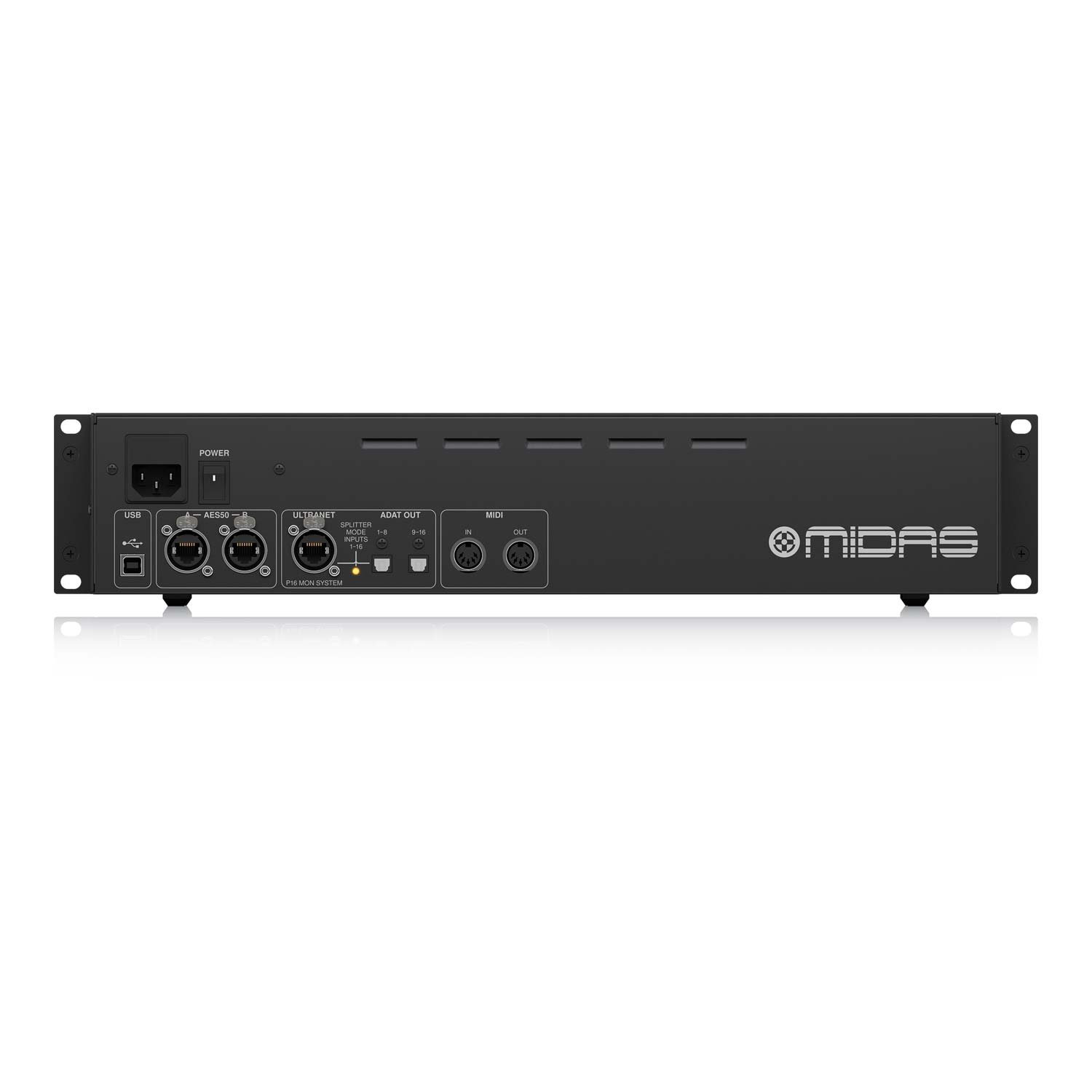

    • Rear Panel:

      • Network and I/O connections

    Power

    • Input: 100-240V AC, 50/60Hz, auto-ranging

    • Consumption: Approximately 25W

    Weight4.7 kg
    Dimensions22.5 × 48.2 × 8.9 cm
