Midas DL32 – Digital Stage Box with 32 Preamps

102,000 EGP

✔️ 32 Midas PRO microphone preamps with phantom power
✔️ 16 balanced XLR outputs
✔️ ULTRANET connectivity for personal monitoring
✔️ Dual AES50 ports for cascading
✔️ Sturdy 3U rack-mountable design

Add to Wishlist
Add to Wishlist
SKU: DL32 Categories: , Tags: , , , , Brand:
  • Top Brands
  • Secure Payments
  • Cash On Delivery Available

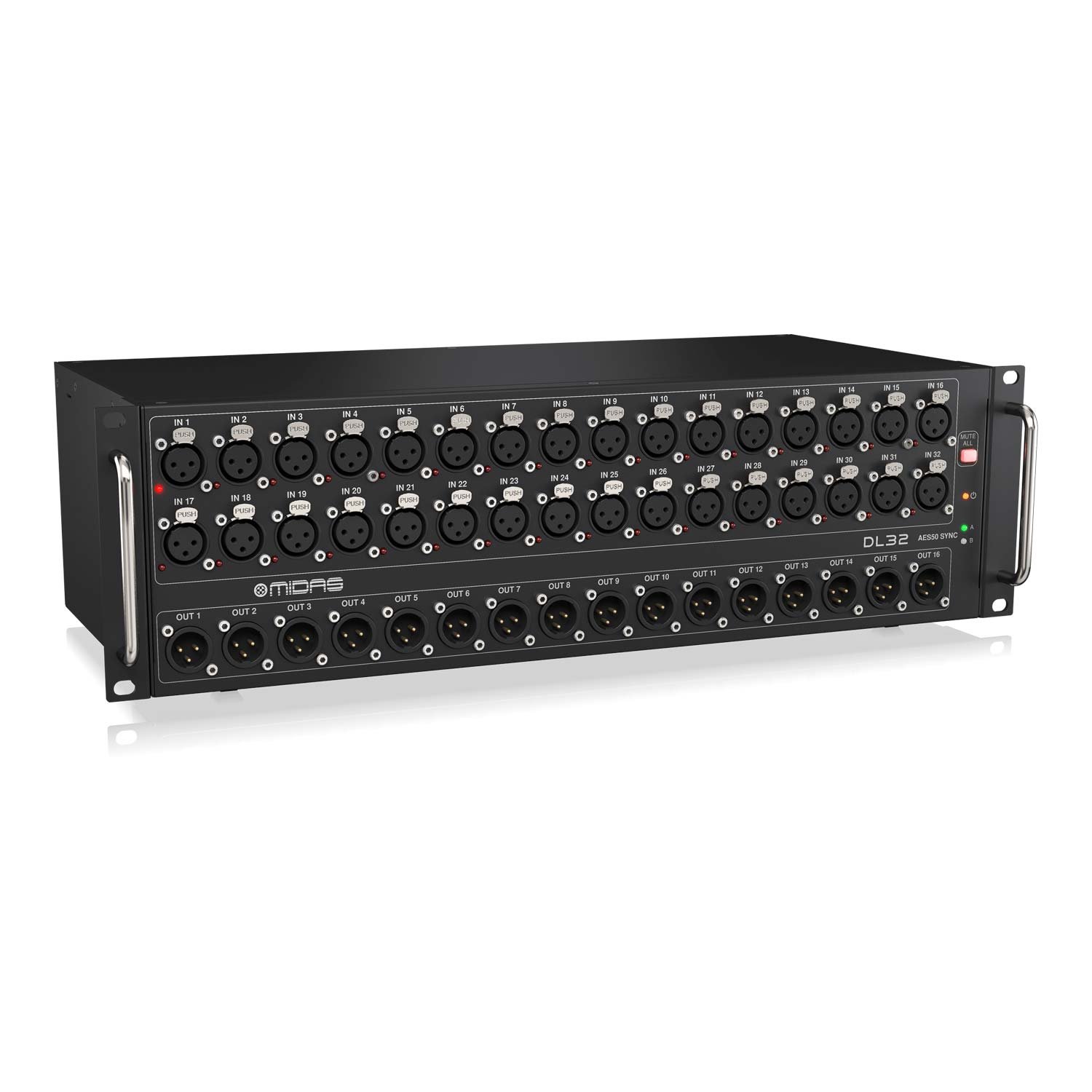

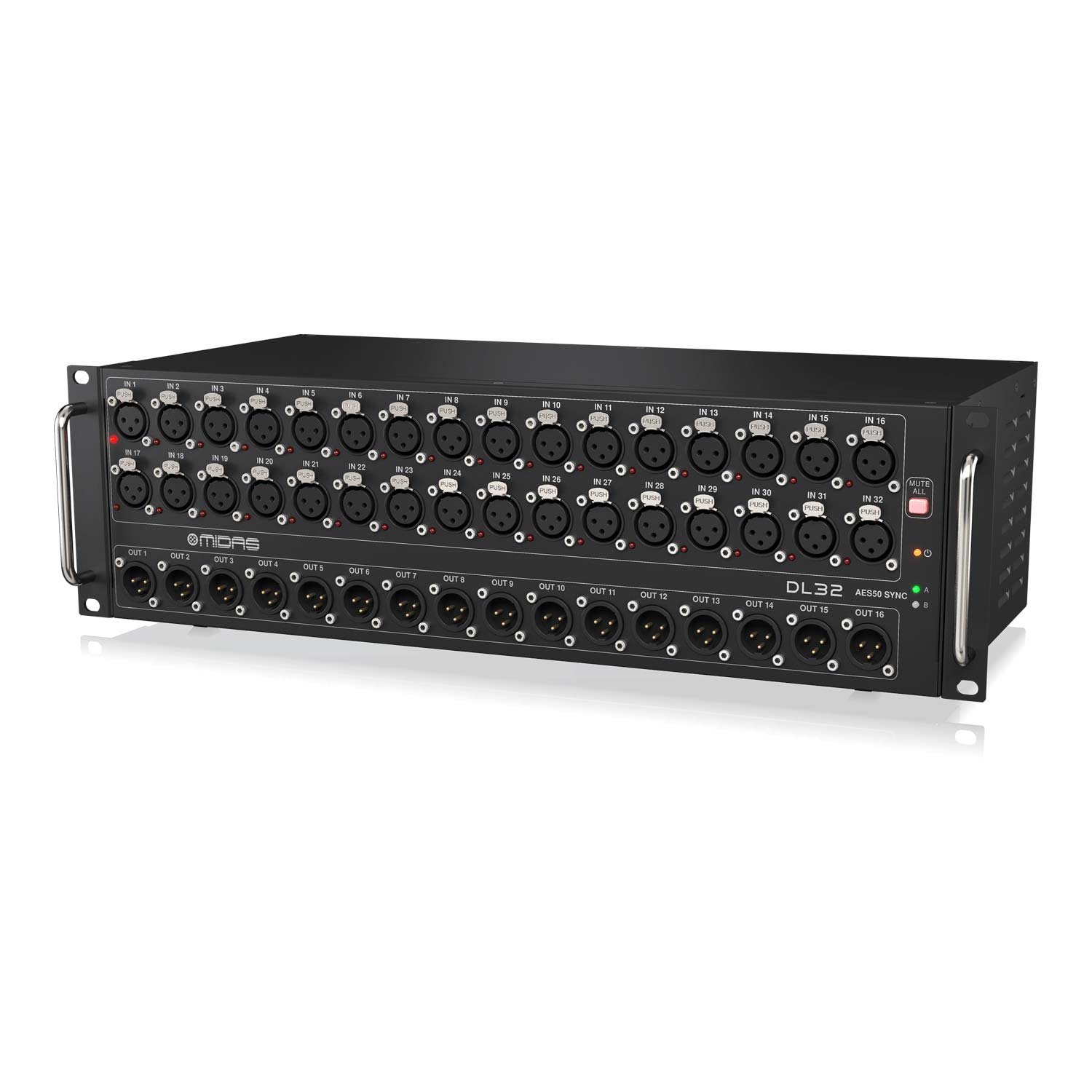

The Midas DL32 is a professional-grade digital stage box crafted for demanding live sound and studio environments. It features 32 remote-controlled Midas PRO microphone preamplifiers, ensuring rich, transparent audio with exceptional headroom and dynamic range. Each input is equipped with switchable +48V phantom power for condenser mics and active DI boxes.

The DL32 offers 16 balanced XLR outputs and integrates seamlessly with personal monitoring systems via ULTRANET. Dual AES50 ports allow cascading with other DL-series stage boxes, supporting flexible expansion and routing without additional hardware. With ADAT optical outputs and MIDI connectivity, the DL32 is a robust, versatile solution that fits perfectly in touring racks and permanent installations.

    • 32 Midas PRO preamps with remote gain control and +48V phantom power
    • 16 balanced XLR outputs for analog routing
    • Dual AES50 ports for cascading additional DL units
    • ULTRANET output for personal monitoring system integration
    • Dual ADAT outputs for digital connectivity
    • Assignable headphone output with volume control
    • MIDI In/Out ports for device communication
    • Rugged 3U rack-mountable steel chassis

    Audio Inputs

    • Type: 32 x XLR (microphone/line)

    • Preamplifiers: 32 x Midas PRO with remote-controllable gain and +48V phantom power

    Audio Outputs

    • Analog Outputs: 16 x XLR (balanced line-level)

    • Digital Outputs:

      • ADAT: 2 x Optical TOSLINK (16 channels)

      • AES50: 2 x Neutrik etherCON (for networking and cascading)

    Networking

    • ULTRANET: 1 x RJ45 (for Behringer Powerplay personal monitor systems)

    • MIDI: In/Out via 5-pin DIN

    Monitoring

    • Headphone Output: 1 x 1/4″ TRS (assignable to any input/output)

    Controls and Indicators

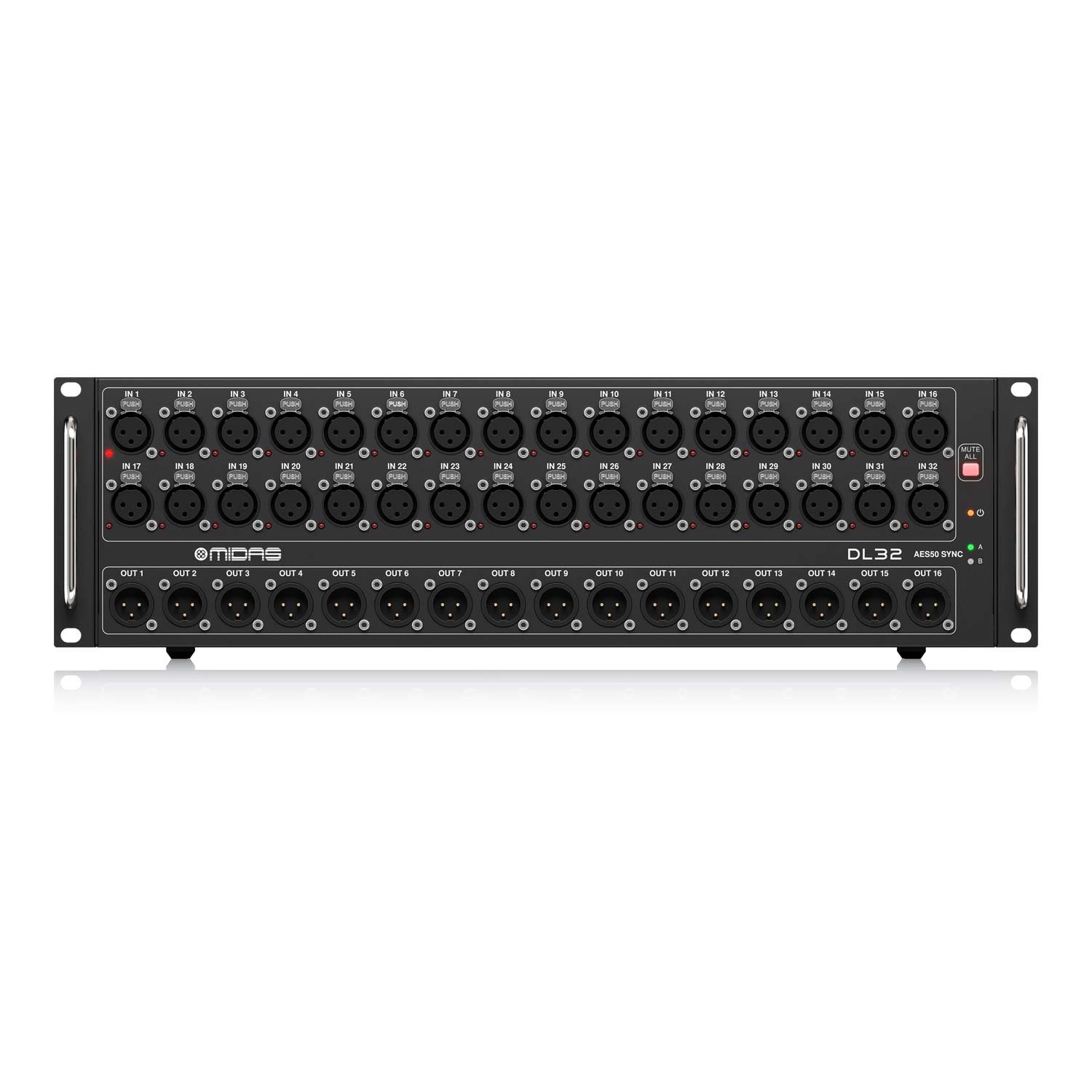

    • Front Panel:

      • Phantom power and signal presence LEDs per channel

      • Mute All button for safe re-patching

      • 7-segment display for status

      • Headphone level knob

    • Rear Panel:

      • 32 mic/line XLR inputs

      • 16 balanced XLR outputs

      • AES50, ADAT, MIDI, and ULTRANET connections

    Power

    • Input: 100-240V AC, 50/60Hz, auto-ranging

    • Consumption: Approx. 30W

    Weight6.8 kg
    Dimensions24.2 × 48.2 × 13.8 cm
