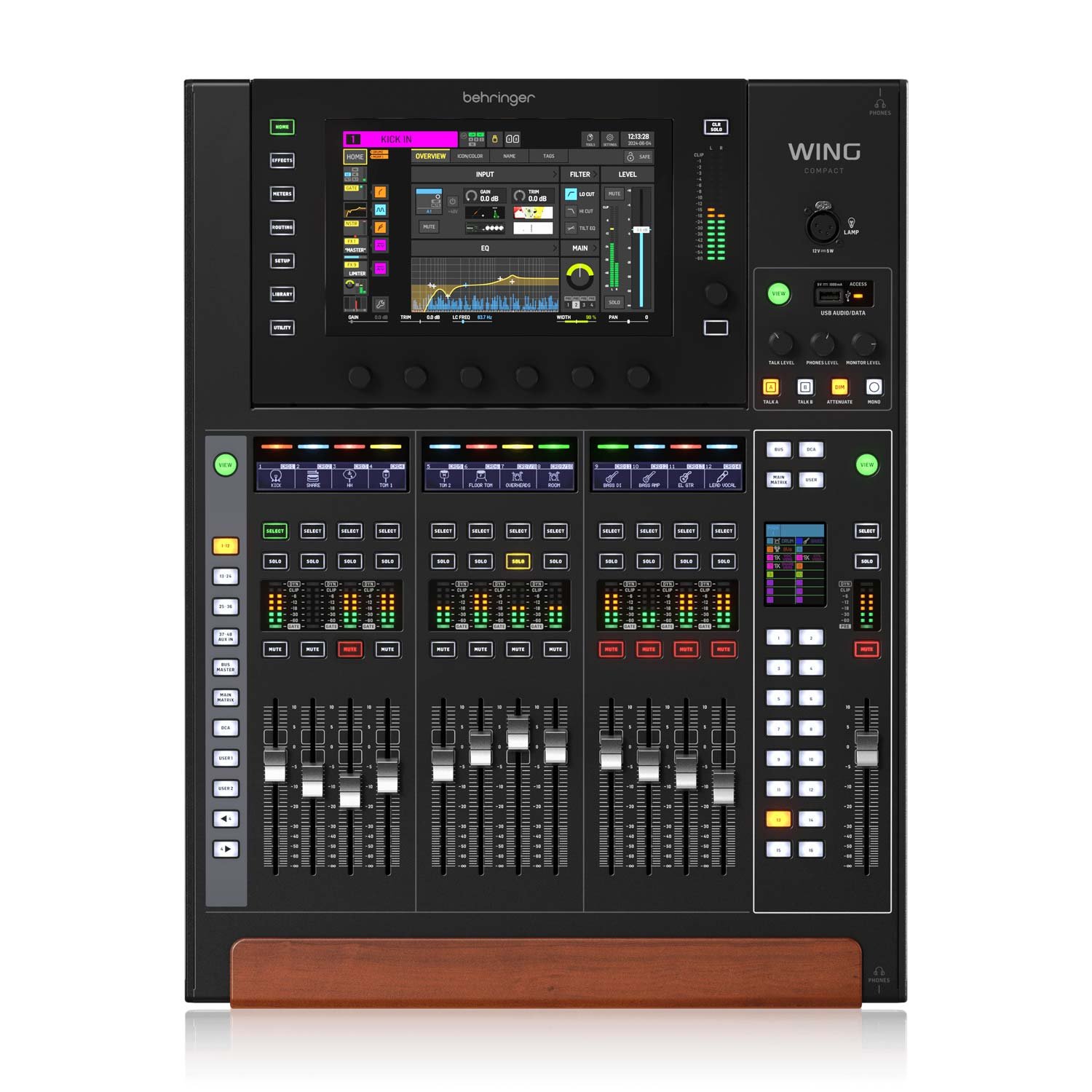

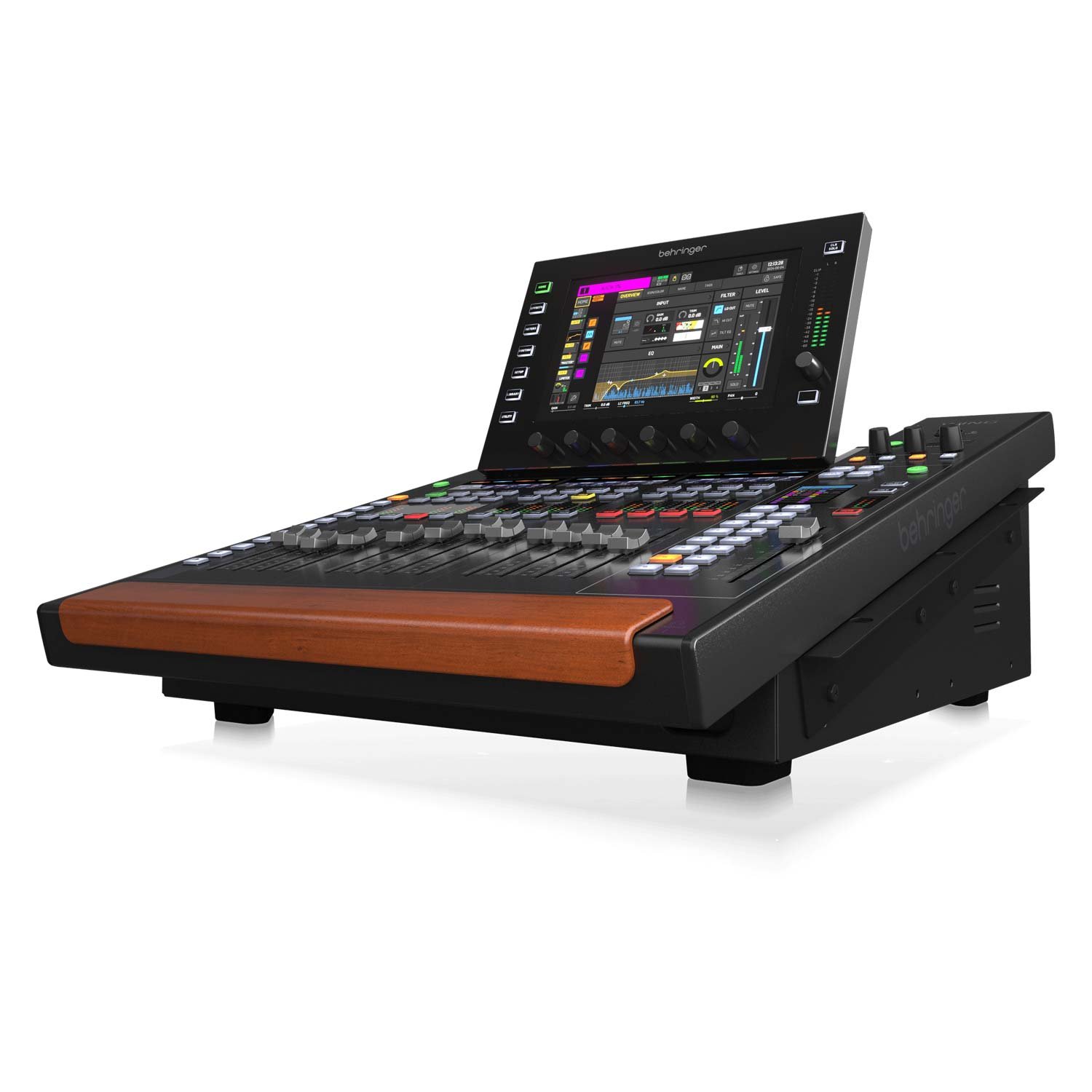

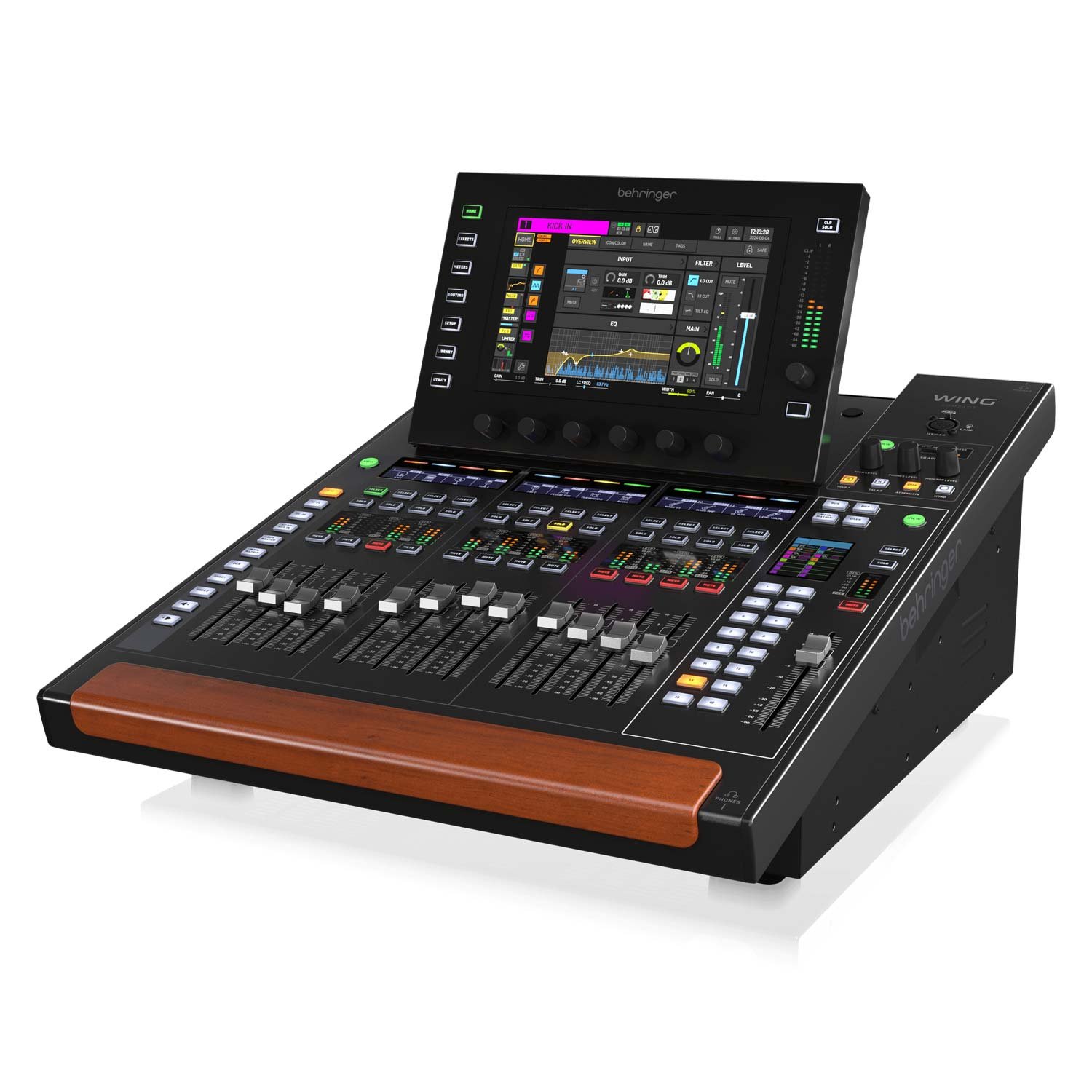

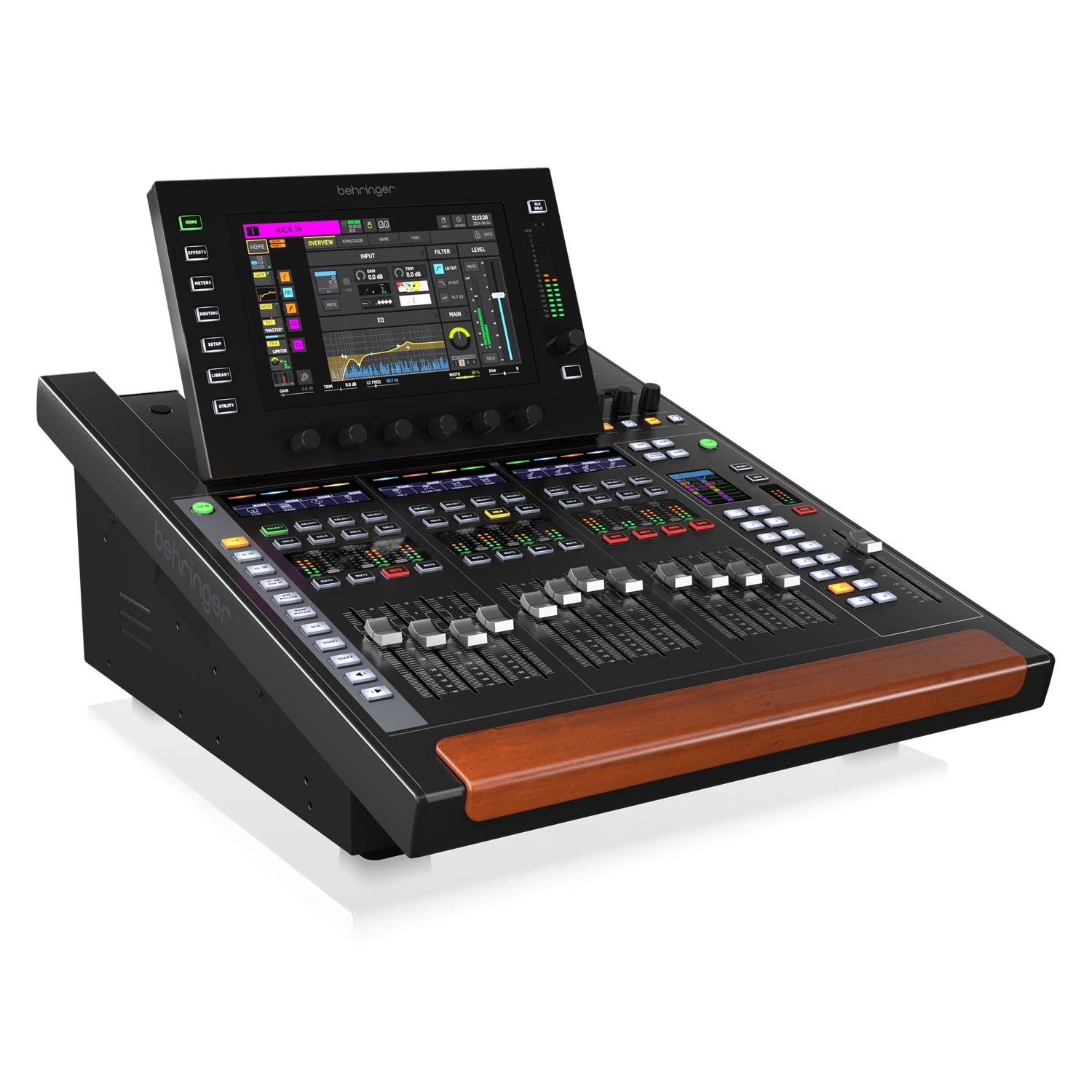

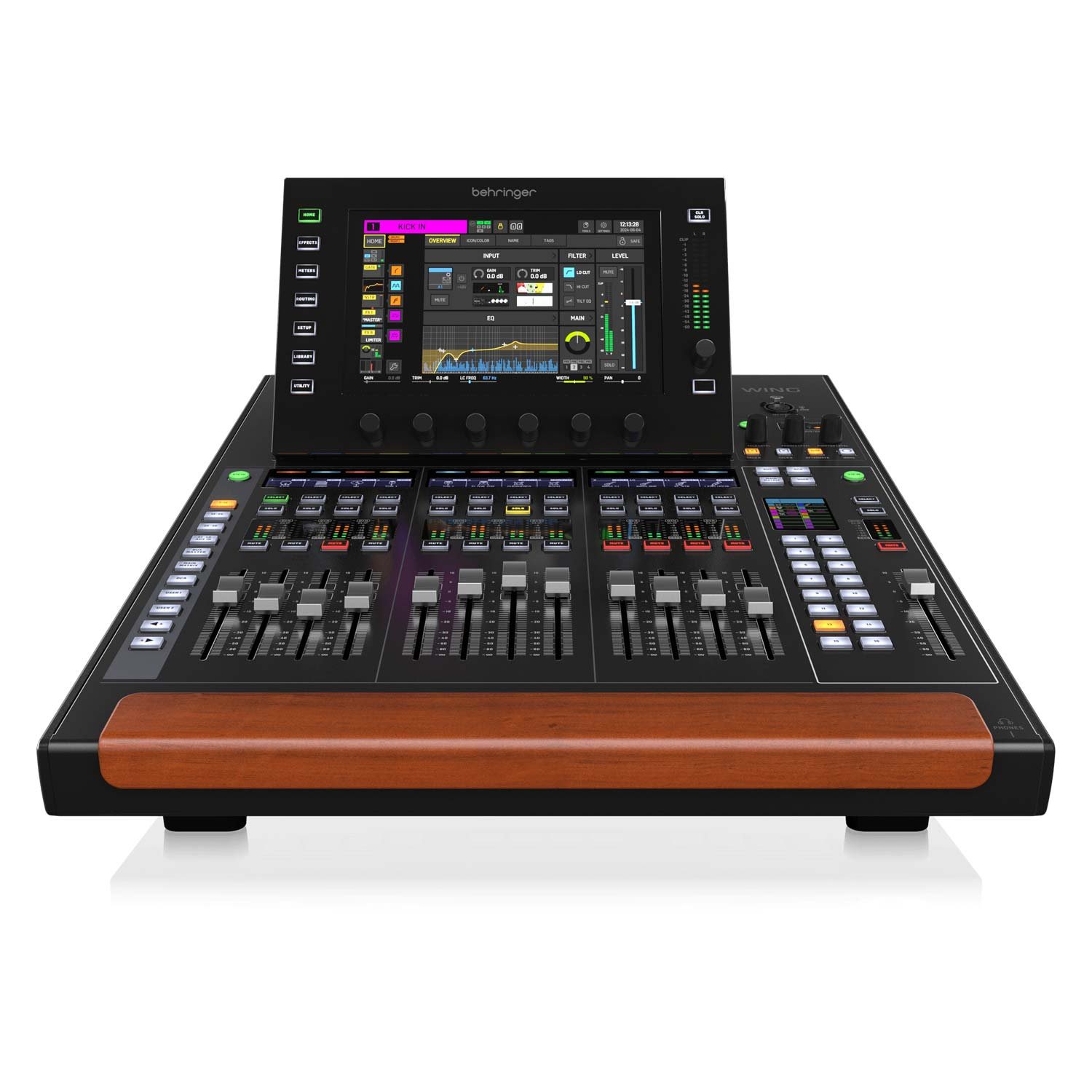

The Behringer WING COMPACT is a feature-rich, road-ready digital mixer delivering all the power and flexibility of the flagship WING in a more compact footprint. With 48 input channels—24 via premium MIDAS PRO mic preamps—and 13 motorized faders, it offers deep control and rock-solid audio quality. Its centerpiece is a 10.1″ daylight-readable touchscreen optimized for intuitive “Sends on Fader” workflow. Add in dual-SD live recording, a 48×48 USB interface with DAW control, 16 stereo FX processors, and expandable AoIP options (Dante / SoundGrid), and you’ve got a mixing solution that excels in live, studio, or broadcast environments. The WING COMPACT is also fully compatible with X32/M32 ecosystems via AES50 and StageConnect.
Behringer WING COMPACT 48‑Channel / 28‑Bus Full‑Stereo Digital Mixing Console
170,000 EGP
✔️ 48 stereo channels with 24 MIDAS PRO mic preamps.
✔️ 28 buses (4 Main, 16 Aux, 8 Matrix).
✔️ 13 motorized 100 mm faders + master.
✔️ 10.1″ adjustable multi‑touch screen.
✔️ Dual SD live recorder/player (up to 64 tracks).
✔️ 48‑in/48‑out USB audio interface.
✔️ 3 AES50 ports (up to 144 I/O).
✔️ Built‑in effects rack with 16 true‑stereo processors.
- Top Brands
- Secure Payments
- Cash On Delivery Available
- Inputs / Preamps: 24 MIDAS PRO mic/line (XLR-¼″ combo), +48 V phantom.
- Outputs: 8 XLR main, plus 1/4″ TRS headphone.
- Buses: 4 Main, 16 Aux, 8 Matrix stereo buses.
- Faders & Controls: 13×100 mm motorized faders + master; 20 custom assignable buttons; touch-sensitive rotary encoders.
- Displays: 10.1″ capacitive touchscreen (1280×800, swivel), 2.4″ channel scribble strips, 18-seg stereo meter.
- Networking: 3×AES50 (SuperMAC) for 144ch I/O; 2×Gigabit Ethernet ports; StageConnect 32ch; optional Dante/SoundGrid module.
- Digital I/O: AES/EBU in/out (XLR), GPIO, MIDI In/Out.
- USB Interface: 1×USB-B (48×48 audio + DAW remote), 1×USB-A (playback/record).
- Recording & Playback: Dual-SD/SDHC slots, record up to 64 tracks WAV with markers.
- Effects: 8 premium stereo FX, 8 standard stereo FX, 5 plugin slots/channel (gate, compressor, EQ), insert FX per Aux.
- Workflow & Recall: Sends-on-fader; Scenes / Snapshots / Snippets; FX, Channel, Bus, Show recall.
- DAW Control: MIDI HUI / Mackie Control Universal; WING-CoPilot, WING-Q, WING-Edit wirelessly.
- Expandability: One expansion slot (Dante, MADI, ADAT/WC).
- Remote Control: USB, Ethernet (incl. Wi-Fi router support).
- Build: Three rack-mount positions; backlit patchbay; standard IEC power supply.

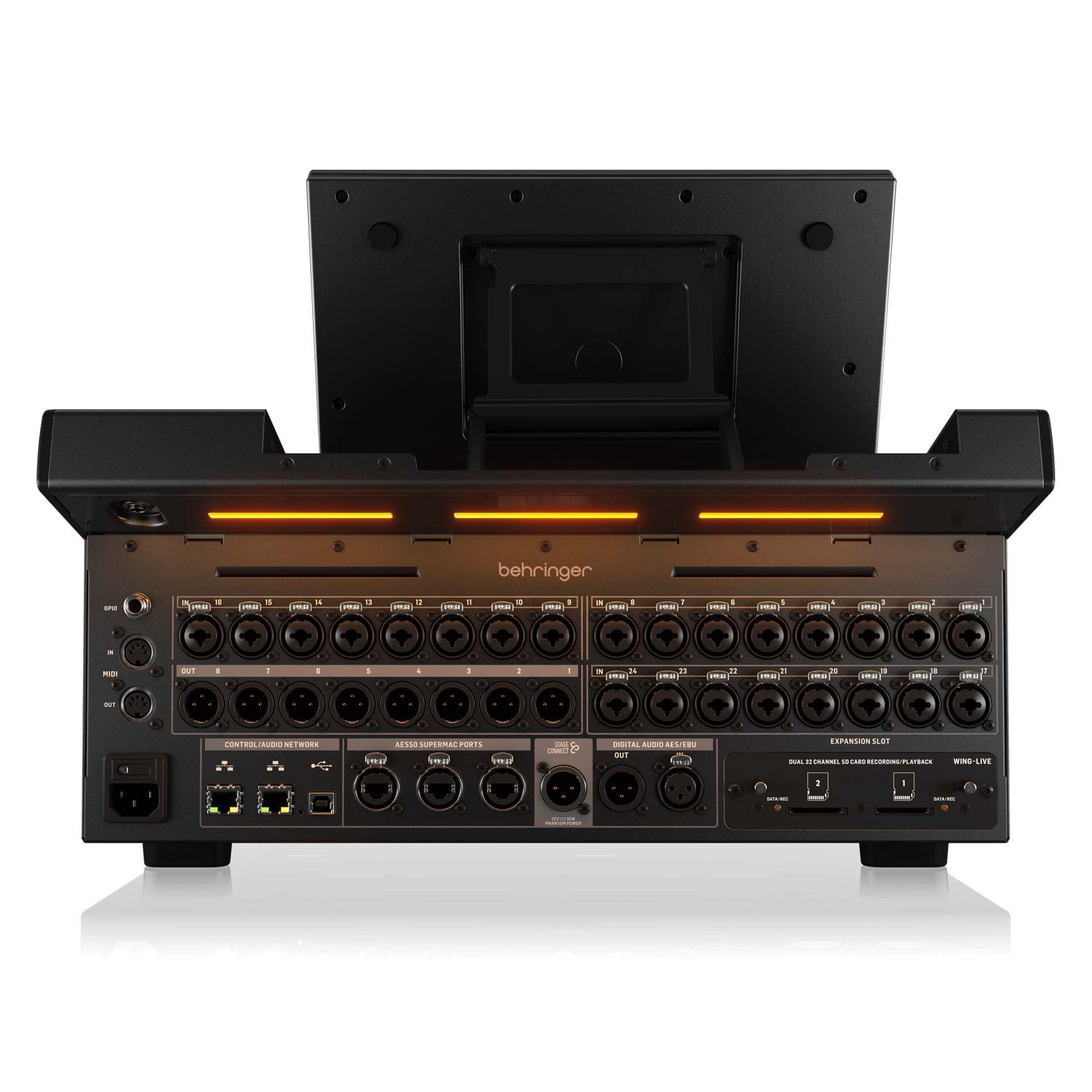

Analog Inputs: 24 MIDAS PRO mic/line combo XLR–¼″ jacks with +48 V phantom power.
Analog Outputs: 8 XLR main outputs, dual ¼″ TRS headphone outputs.
Digital Inputs and Outputs: 3 AES50 ports, AES/EBU input and output, StageConnect, USB-B, USB-A, expansion slot.
Channel Count: 48 stereo input channels and 28 stereo buses.
Audio Interface: 48-in/48-out USB audio interface, 24-bit / 48 kHz resolution.
Recording: Dual SD/SDHC card slots for up to 64-track recording and playback in WAV format.
Effects: 16 stereo FX engines (8 premium, 8 standard), 5 plugin slots per channel.
Display: 10.1″ touch screen (1280×800 resolution), 2.4″ scribble strip displays.
Faders: 13 motorized 100 mm touch-sensitive faders plus master.
Networking: 2 Gigabit Ethernet ports, 3 AES50 ports, StageConnect (32 channels), expansion slot for Dante/SoundGrid.
Remote Control: USB, Ethernet, and wireless control via WING apps.
MIDI and GPIO: 5-pin MIDI In/Out, TRS GPIO connectors.
Power Supply: Auto-range 100–240 V AC, ~130 W power consumption.
| Weight | 15.9 kg |
|---|---|
| Dimensions | 57.4 × 45.3 × 22.5 cm |
