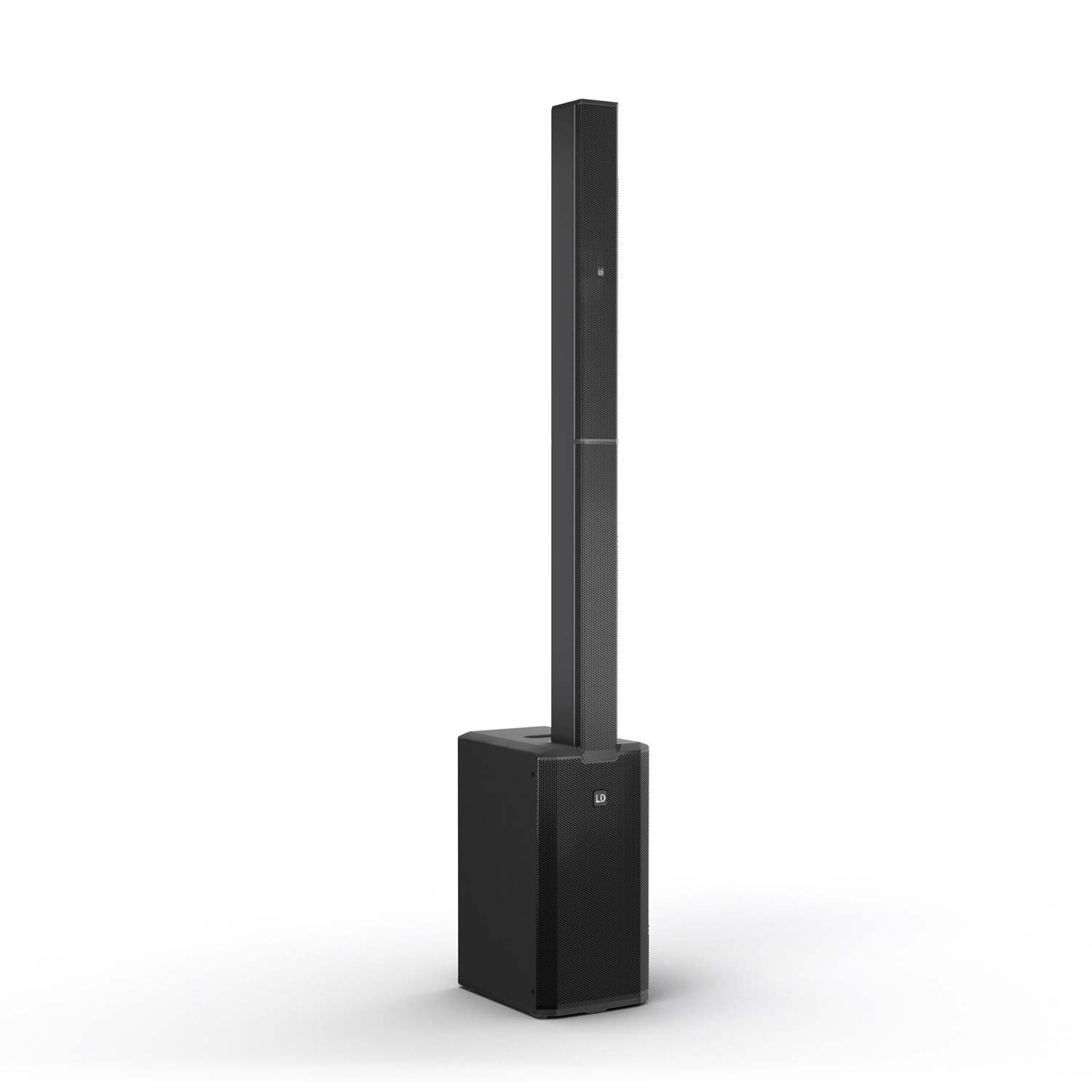

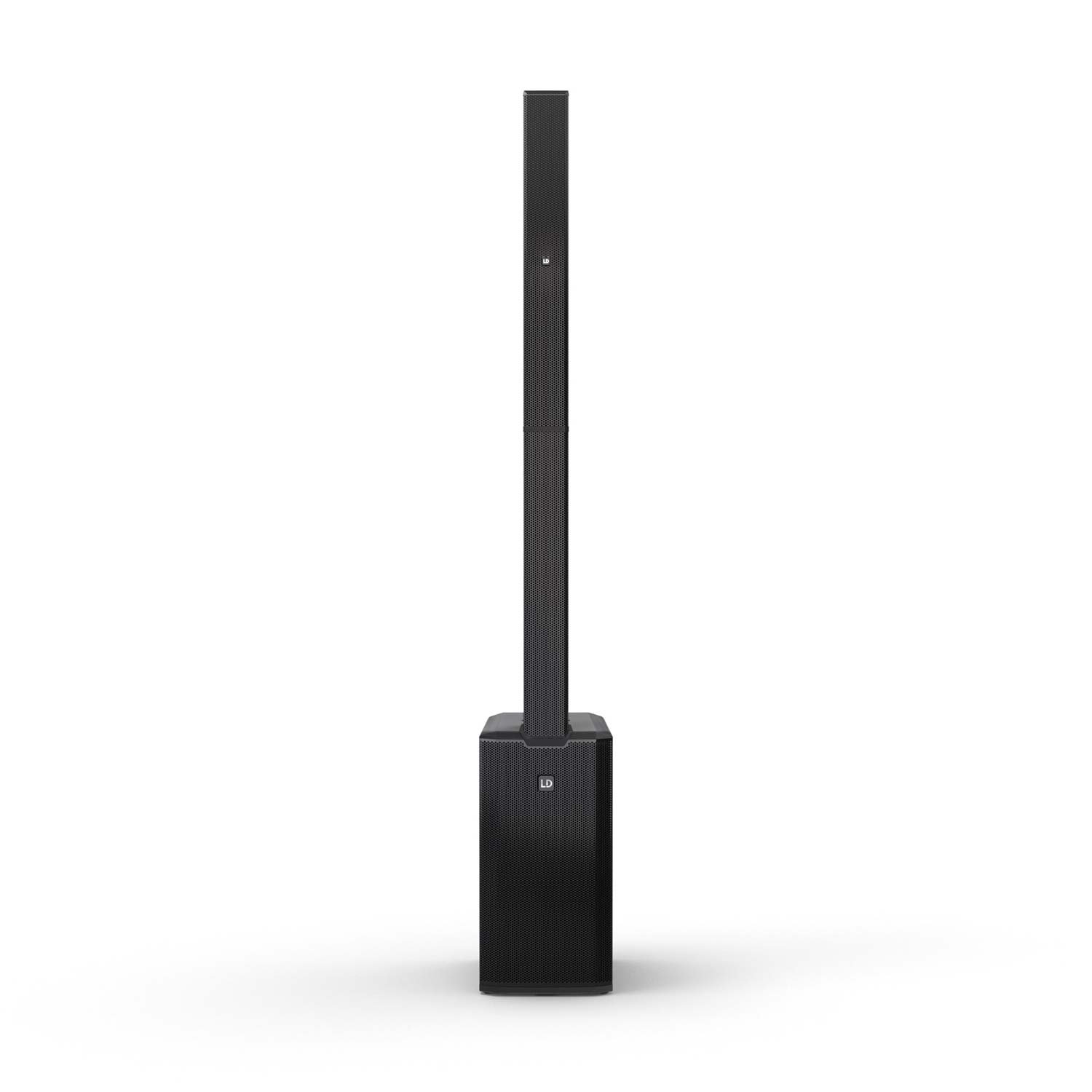

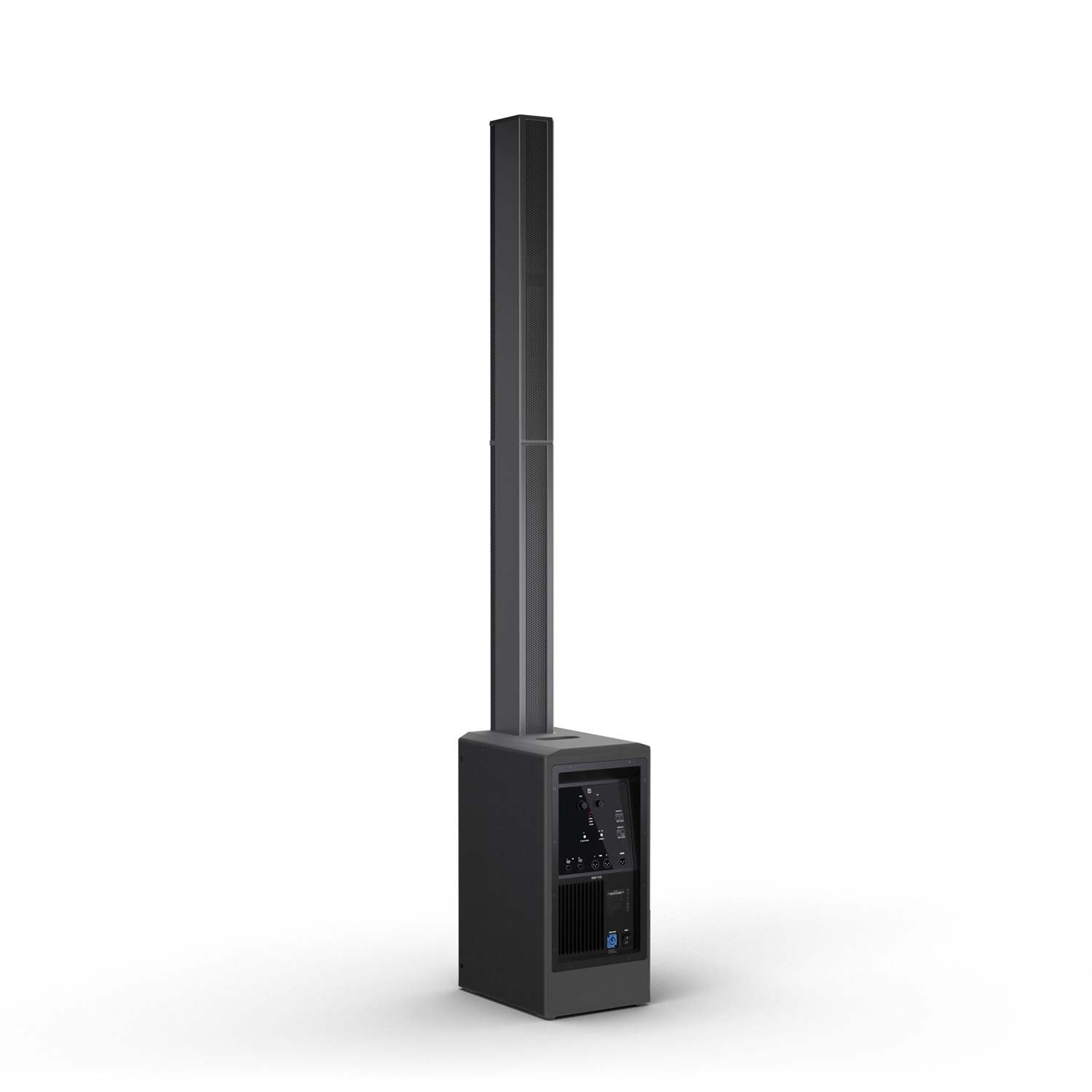

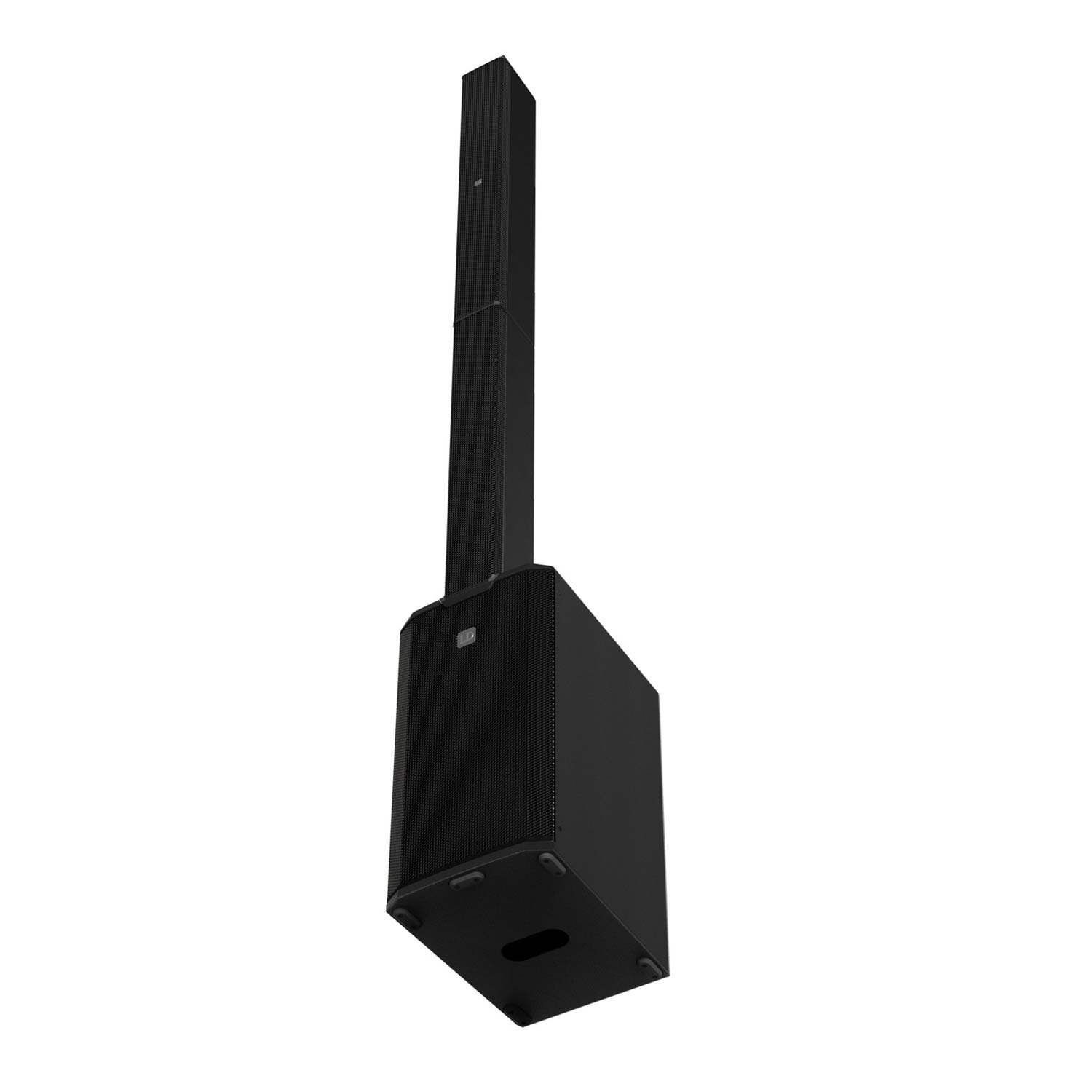

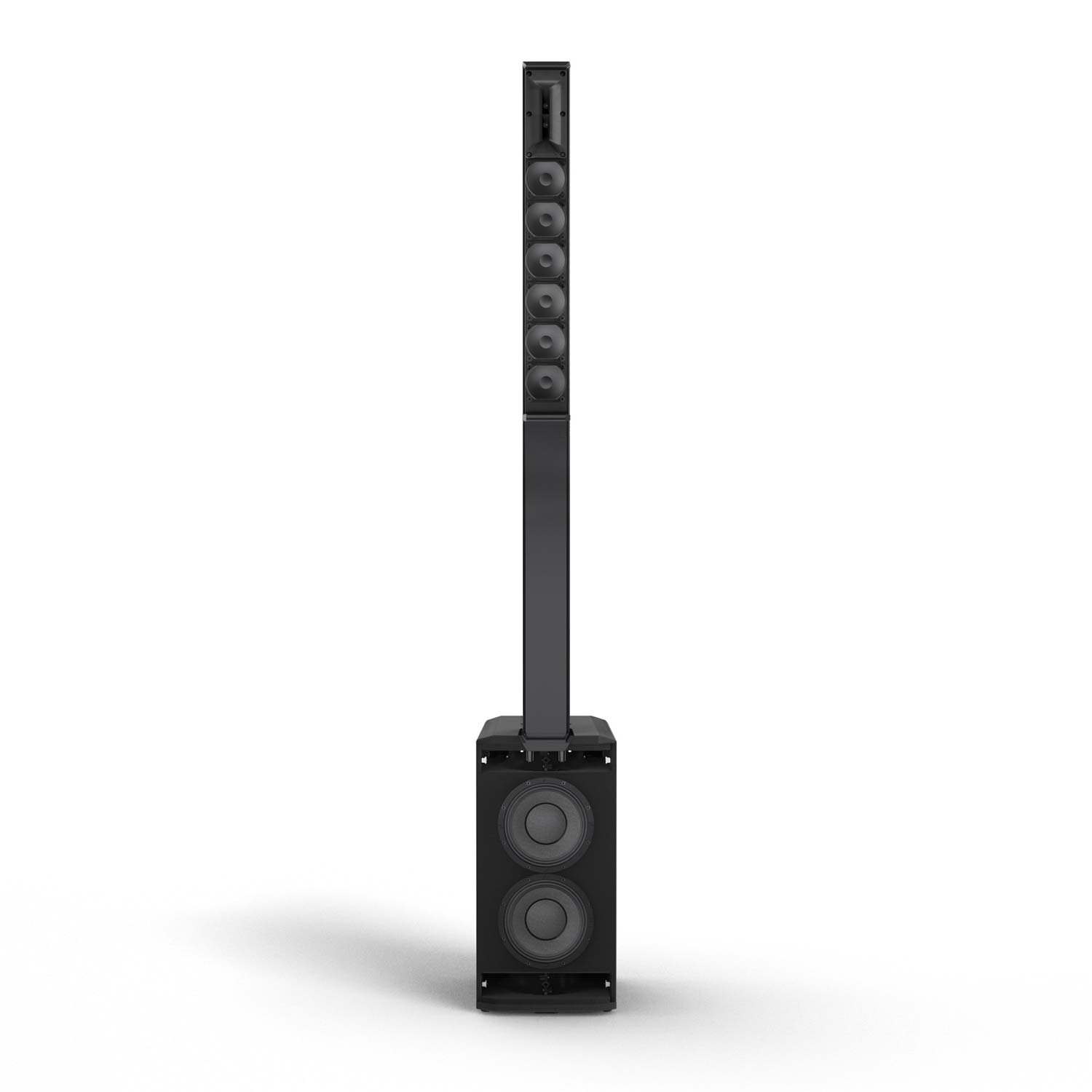

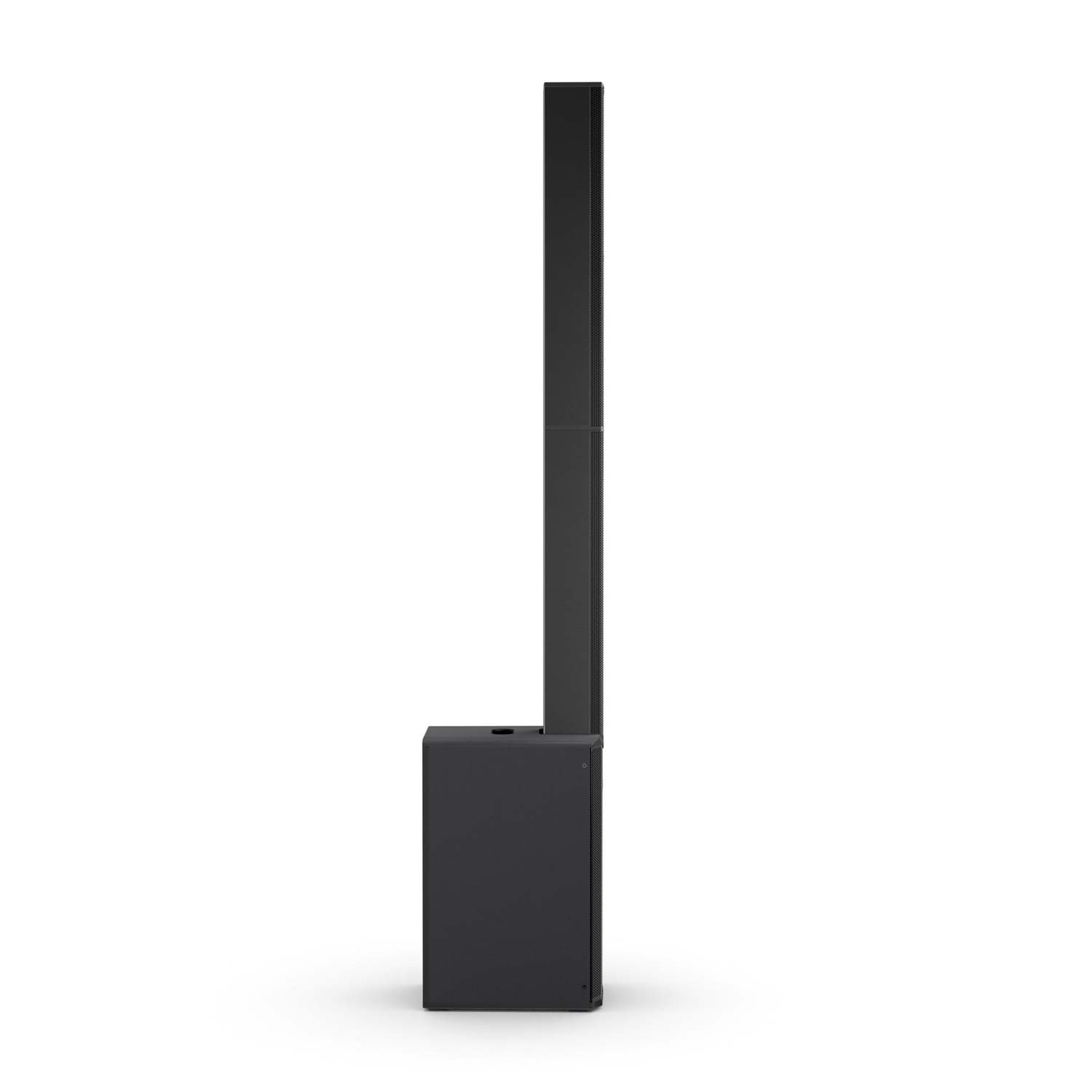

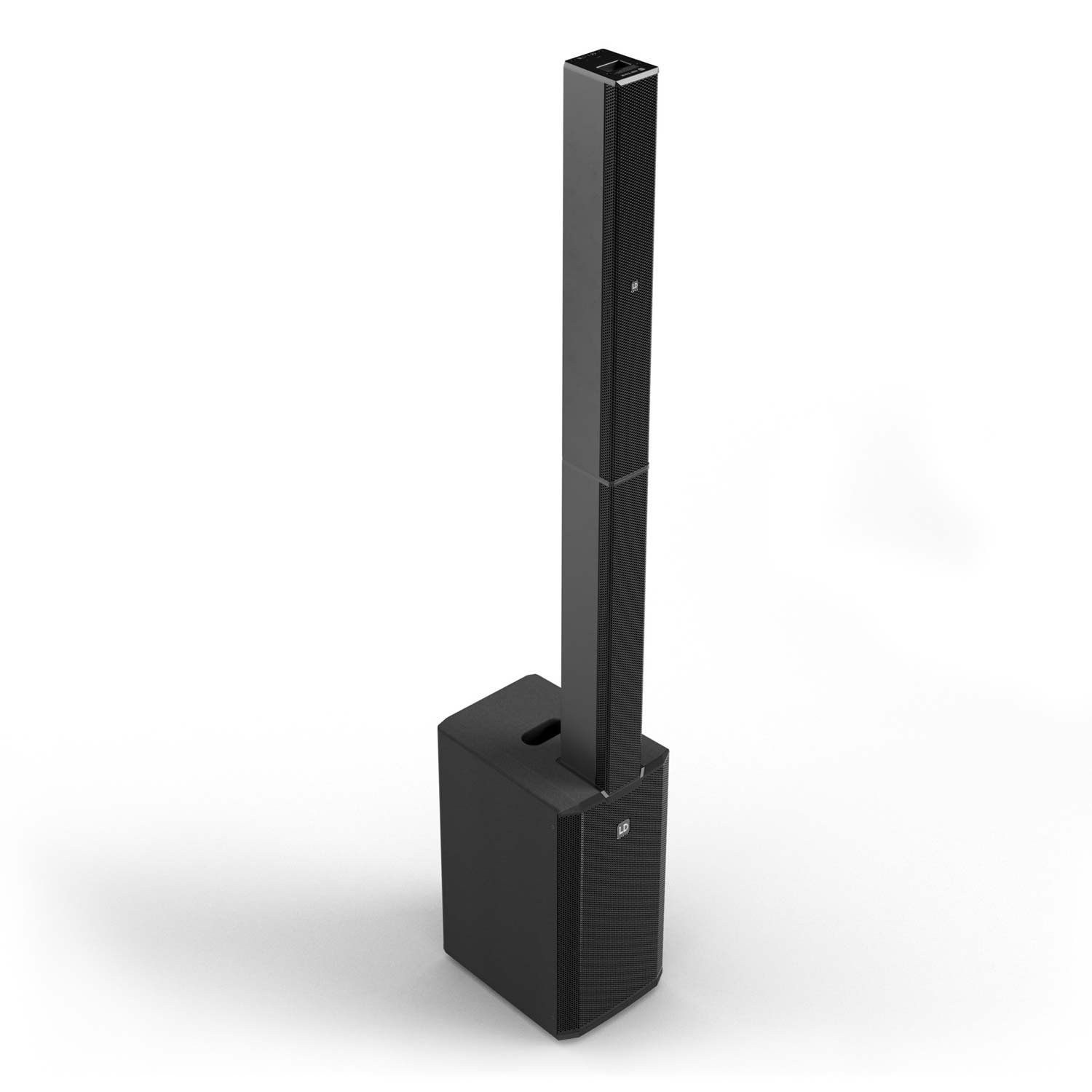

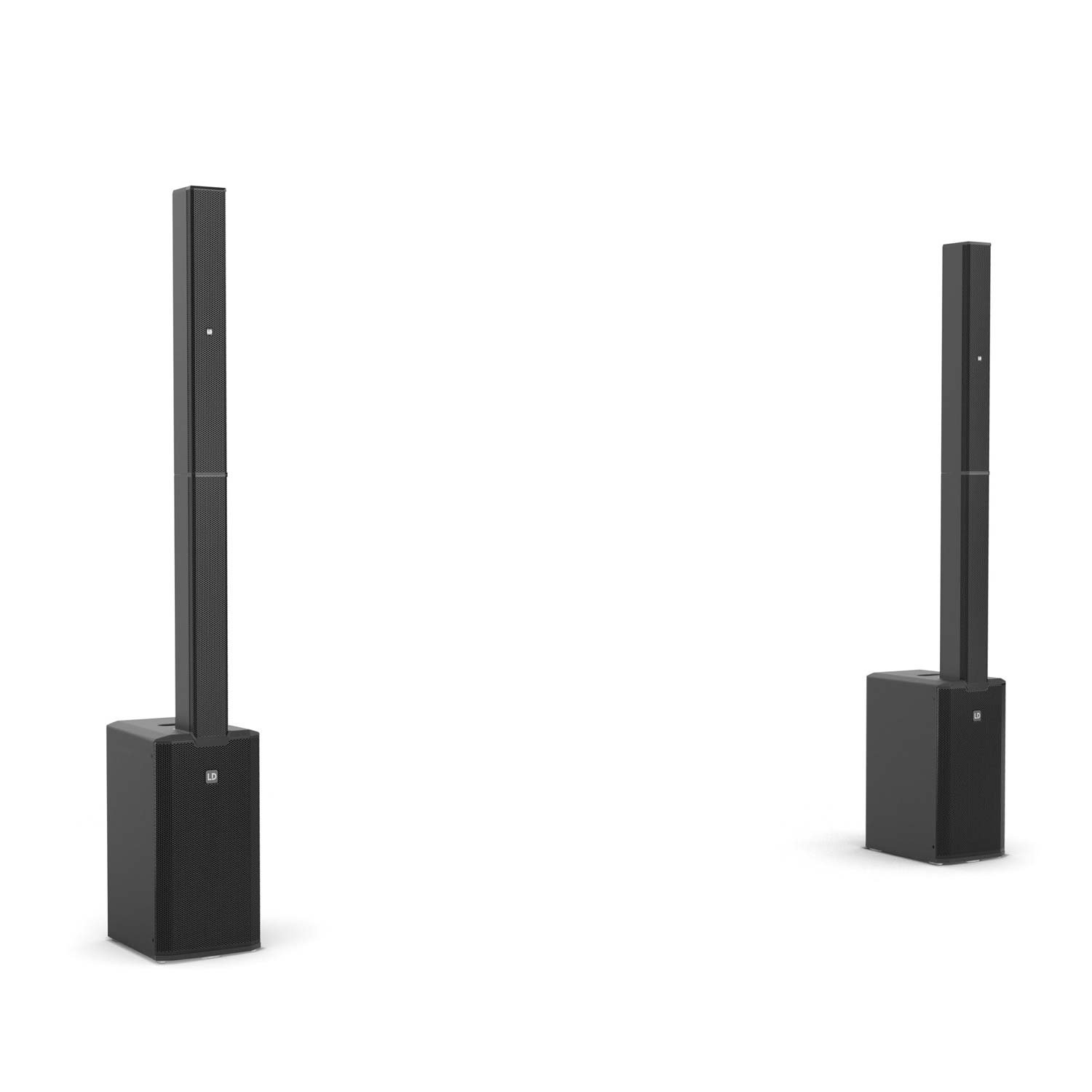

The LD Systems MAUI 11 G3 is a professional-grade portable column PA system designed for musicians, DJs, and public speakers. It delivers a powerful and detailed sound across a wide frequency range, thanks to its advanced design combining a cardioid subwoofer with a dual-array column speaker. The cardioid configuration ensures strong forward projection and reduced rear bass by up to 18 dB, making it ideal for both stage and audience clarity. The system delivers up to 730 W RMS (1,460 W peak) of clean audio power with onboard DSP for smart control and reliable performance. With integrated Bluetooth 5.0 streaming, onboard mixer, and rugged construction, the MAUI 11 G3 is built for mobile professionals demanding quality and efficiency.
730 W RMS / 1,460 W peak Class D amplifier power.

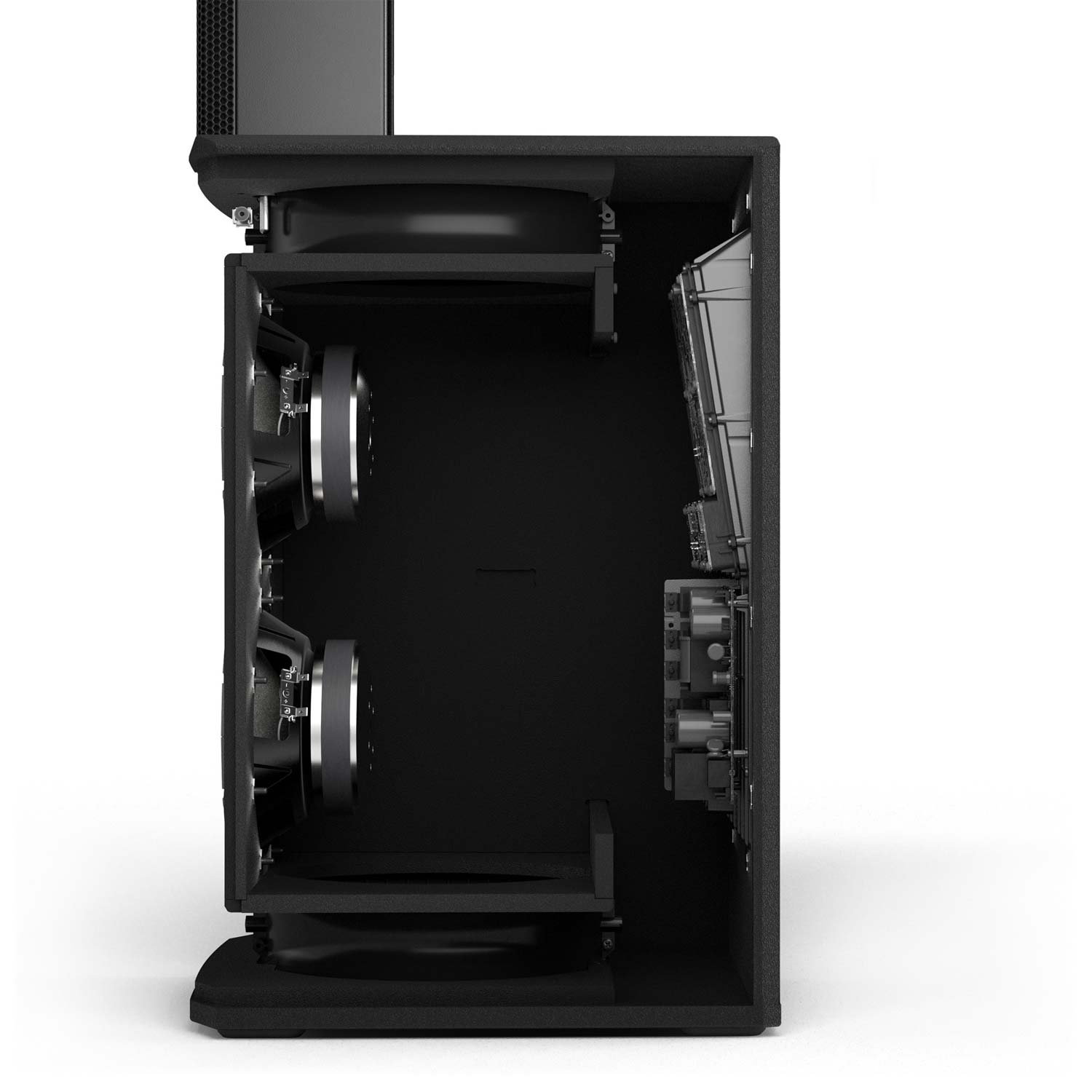

Dual 8″ subwoofers in cardioid configuration for forward bass focus.

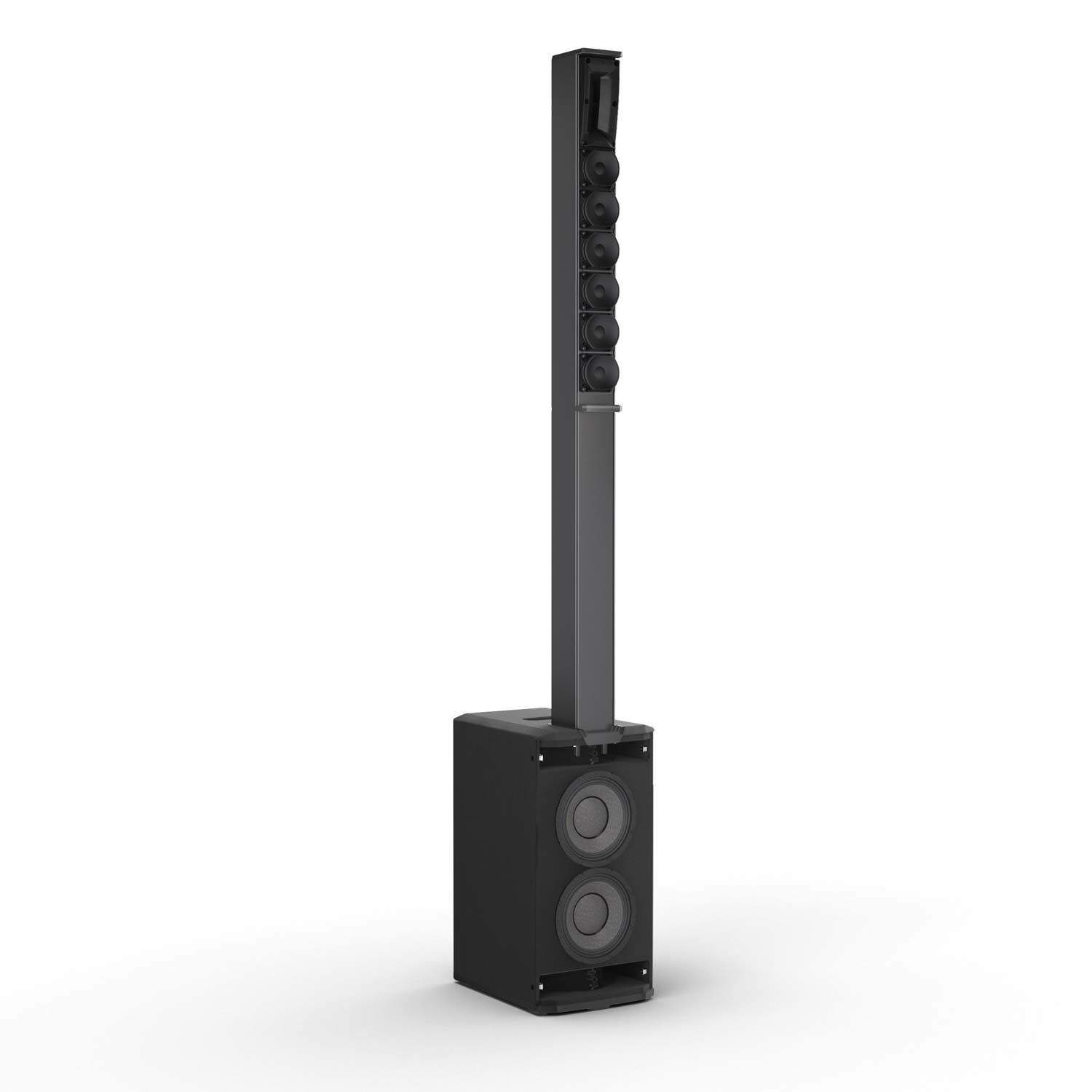

Column system includes 6 x 3.5″ midrange drivers + 2 x 1″ tweeters.
Vertical 30° and horizontal 120° dispersion for wide coverage.

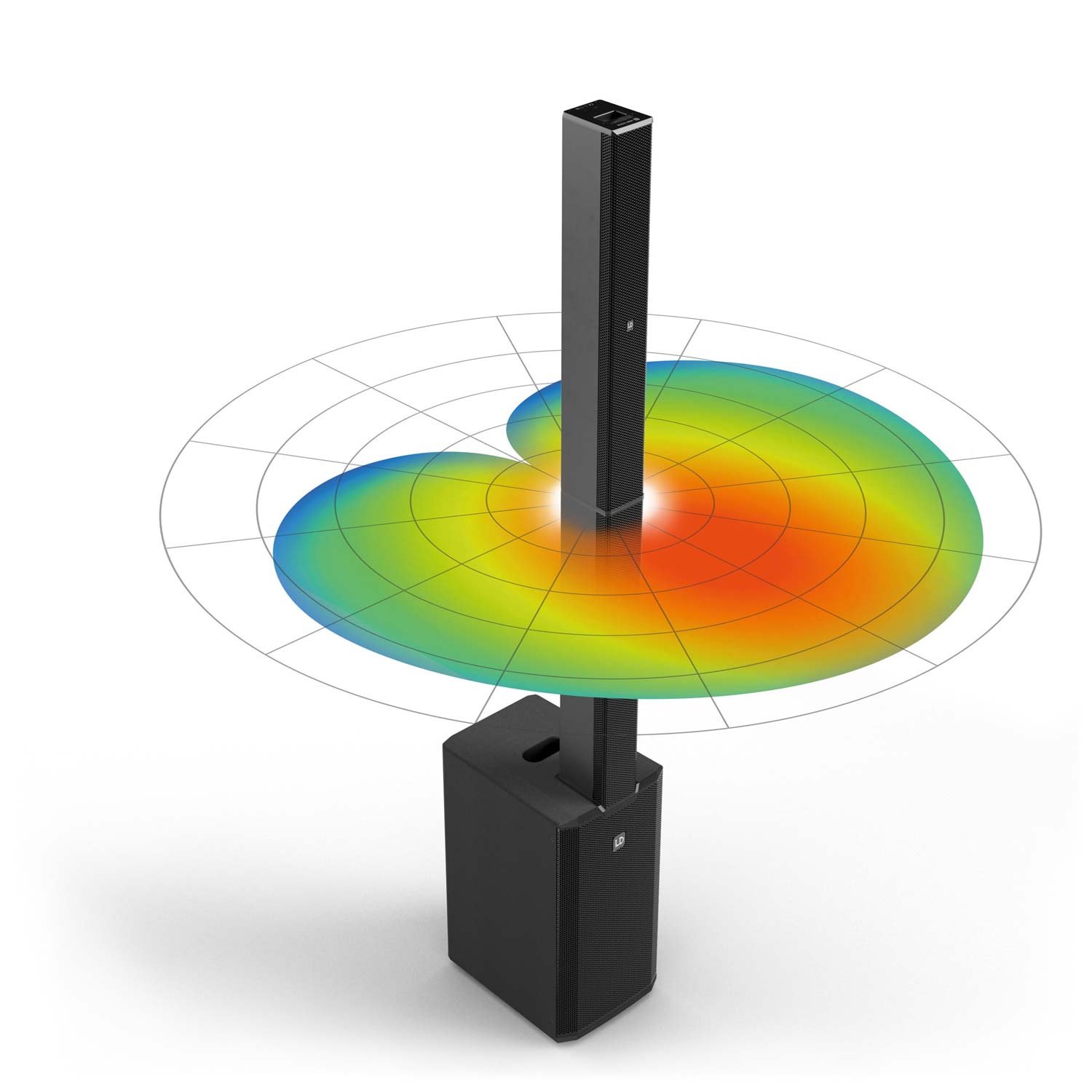

DSP-enabled cardioid mode reduces rear bass by up to 18 dB.

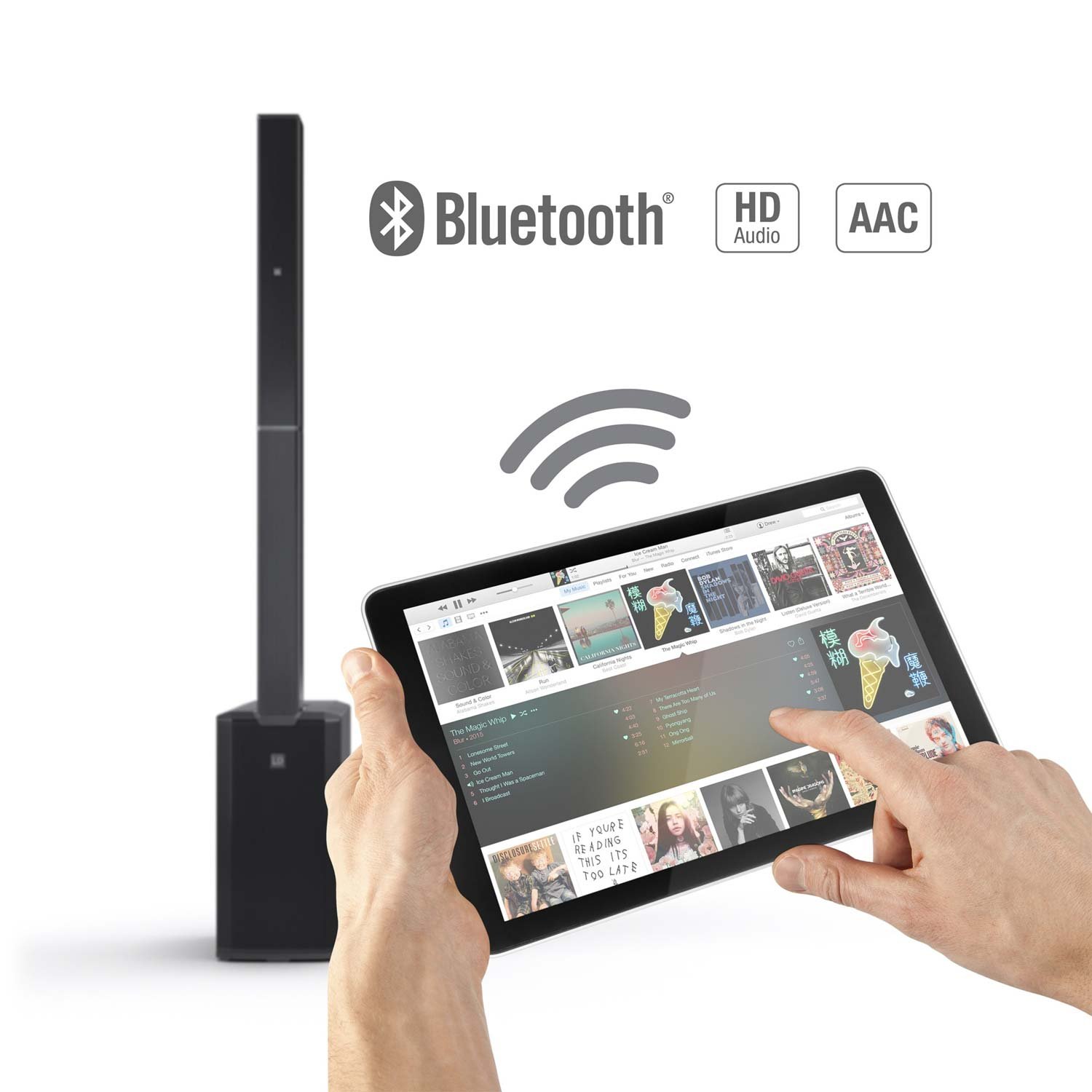

Bluetooth 5.0 wireless streaming (AAC/SBC).

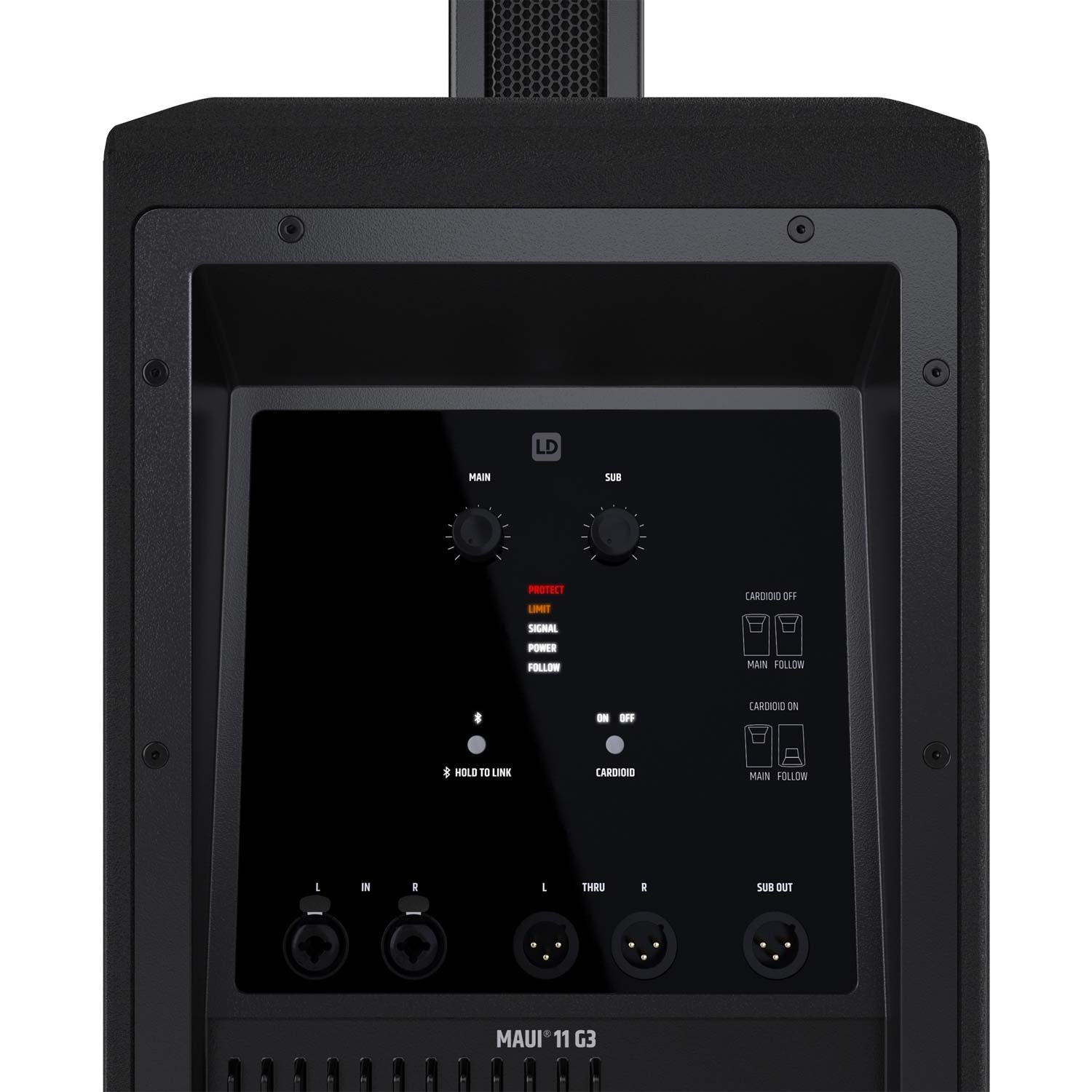

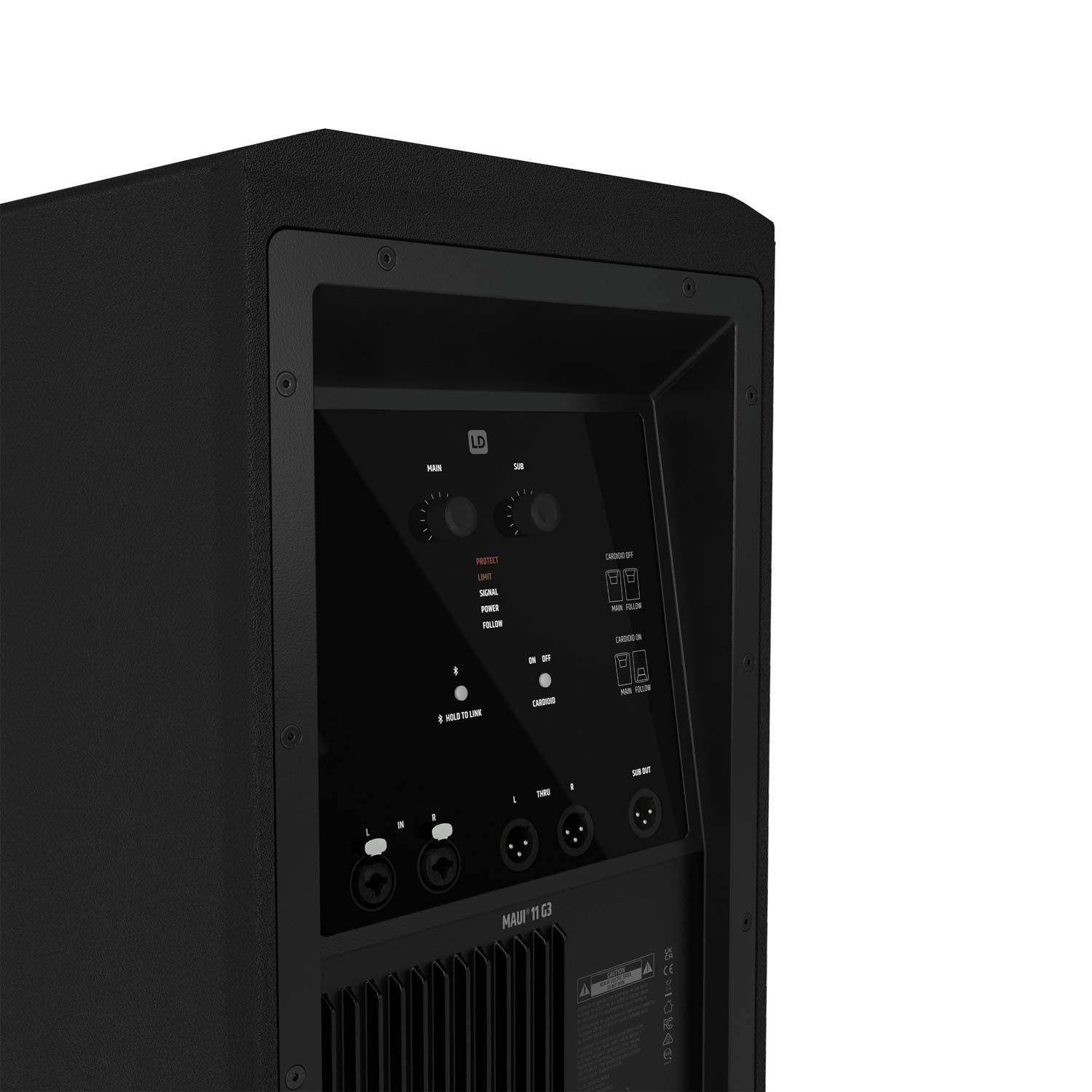

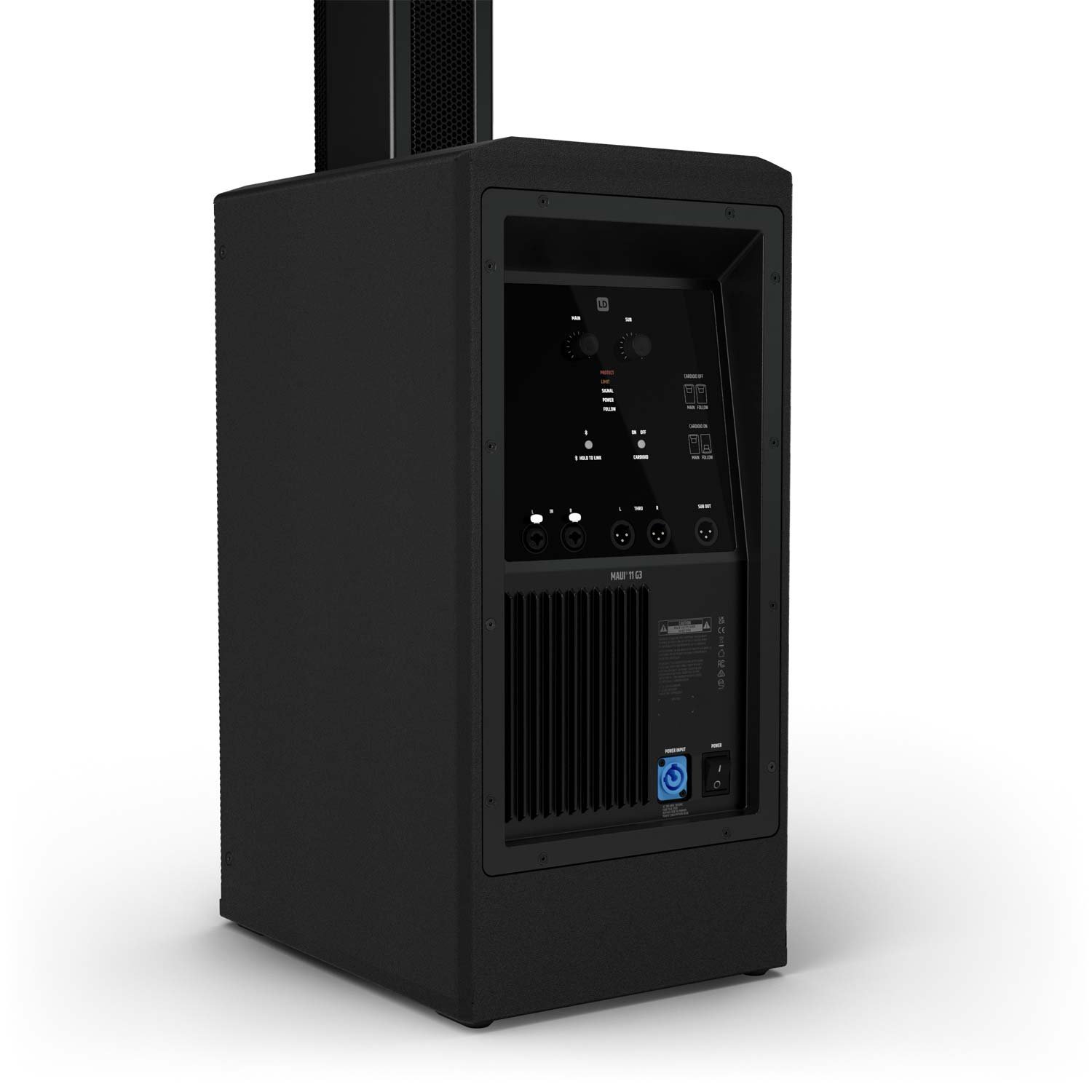

Onboard 2-channel mixer with combo XLR/TRS inputs.
Sub out and system link output for extended setups.
Integrated LD DynX DSP with multi-band limiter and full protection.

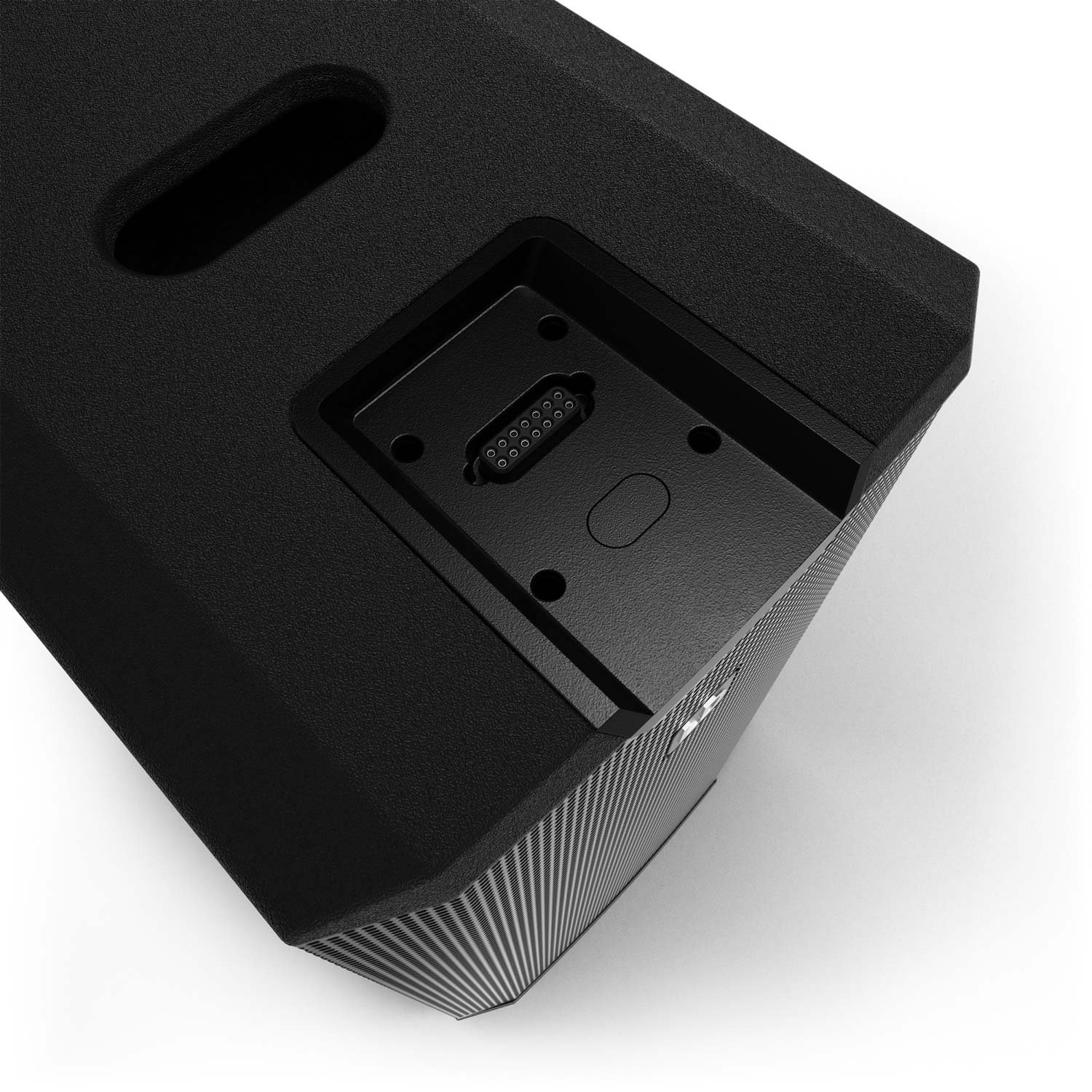

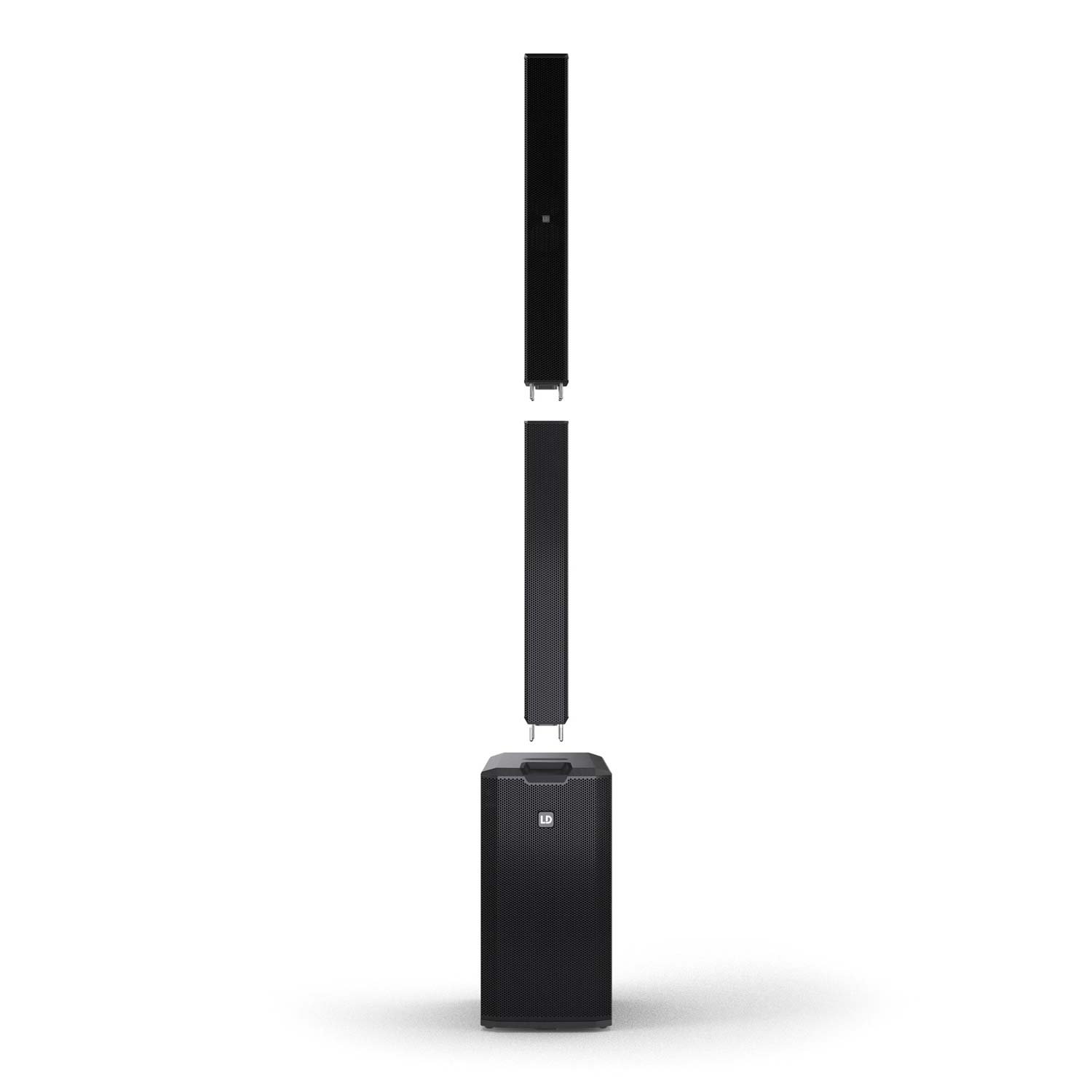

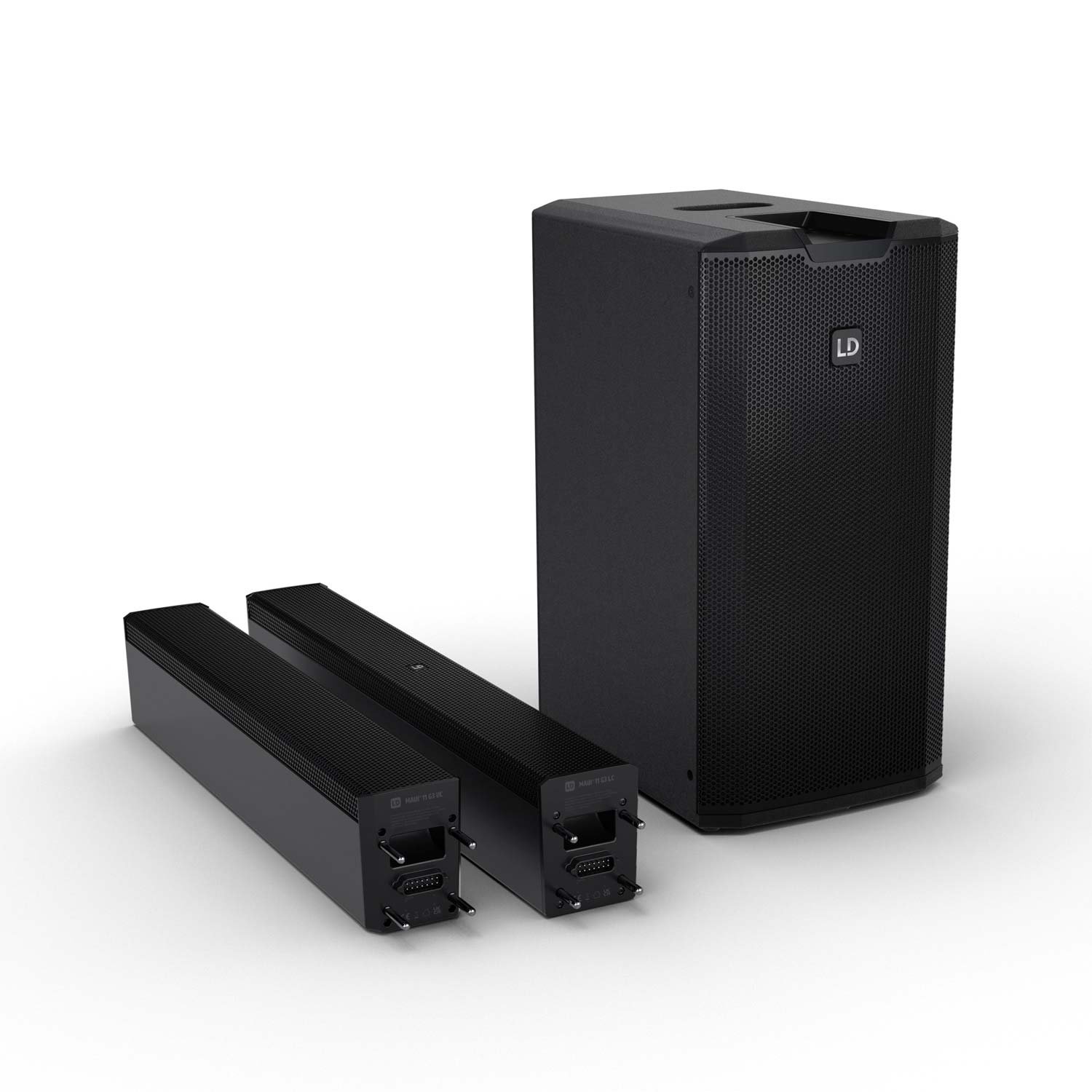

Modular design with multi-pin connectors and hidden wiring.
Rugged birch plywood sub enclosure with polyurea coating.

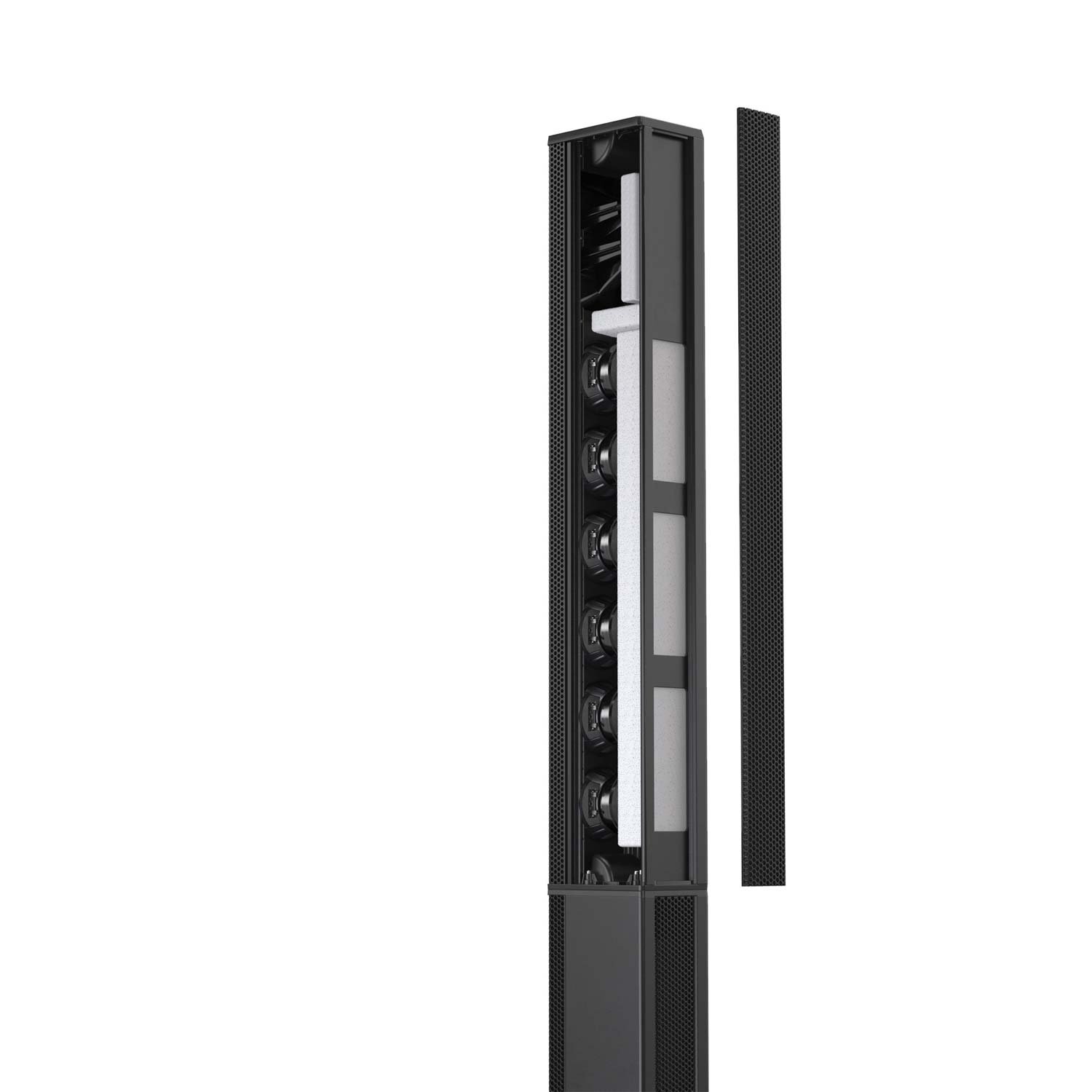

High-grade aluminum columns with precision-machined phase plugs.

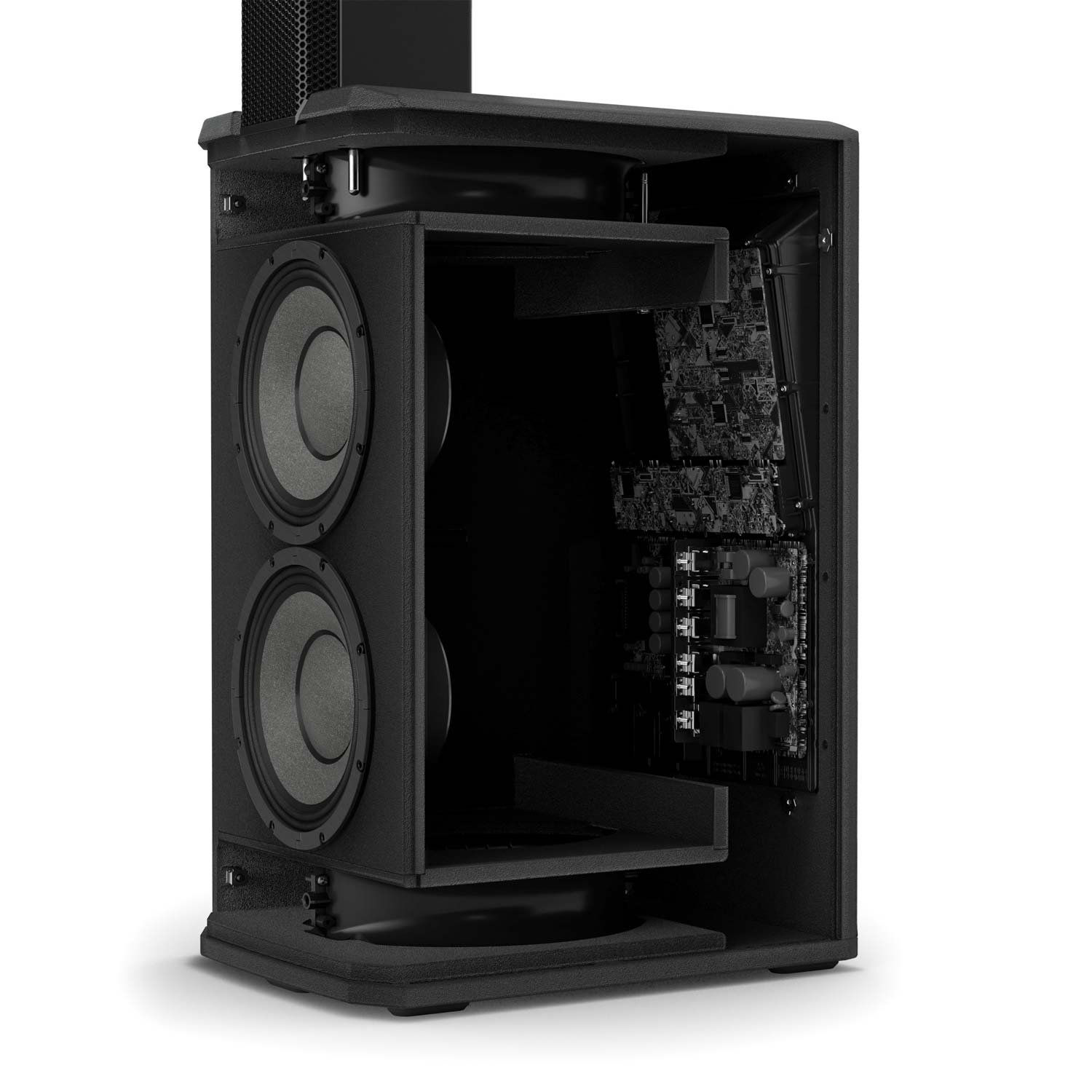

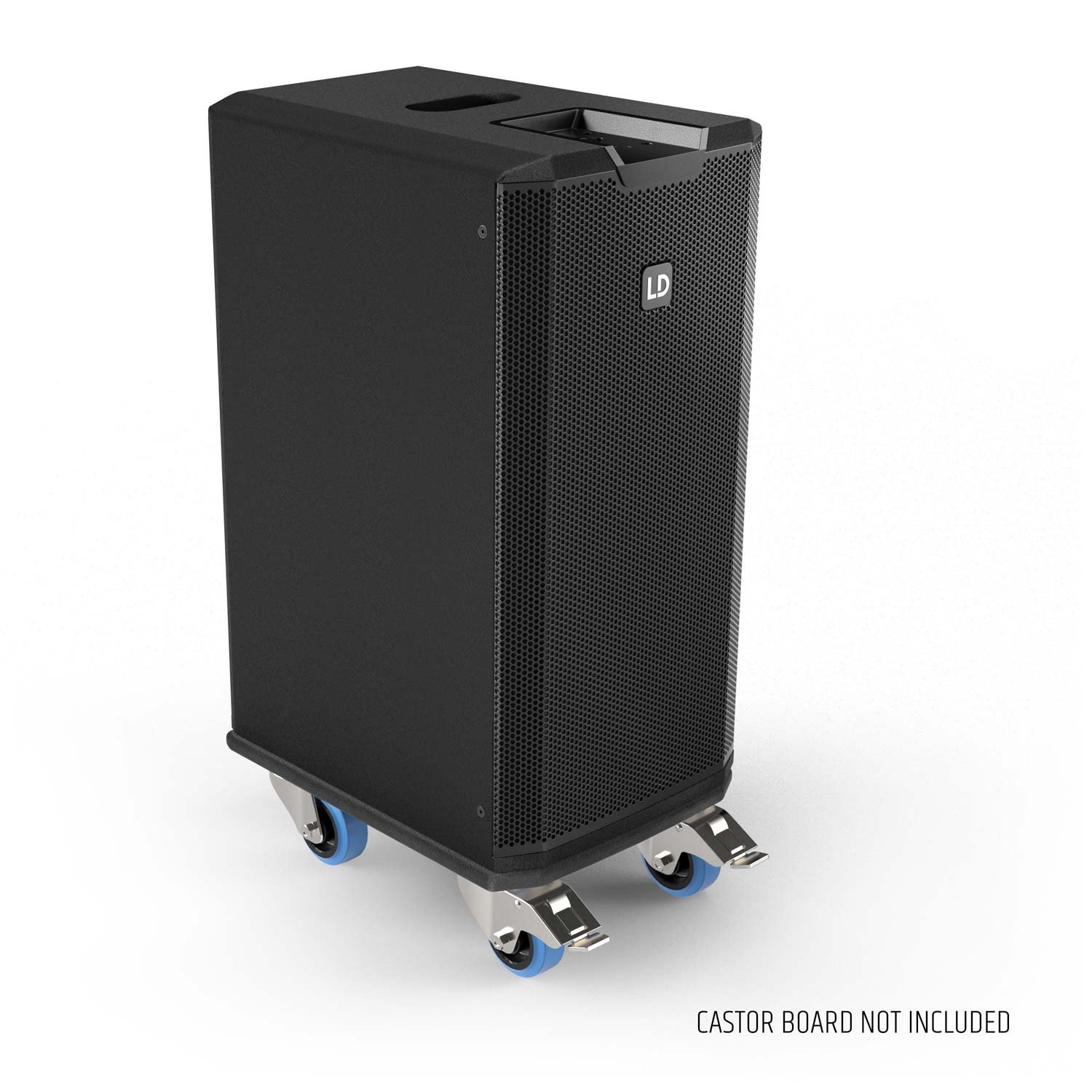

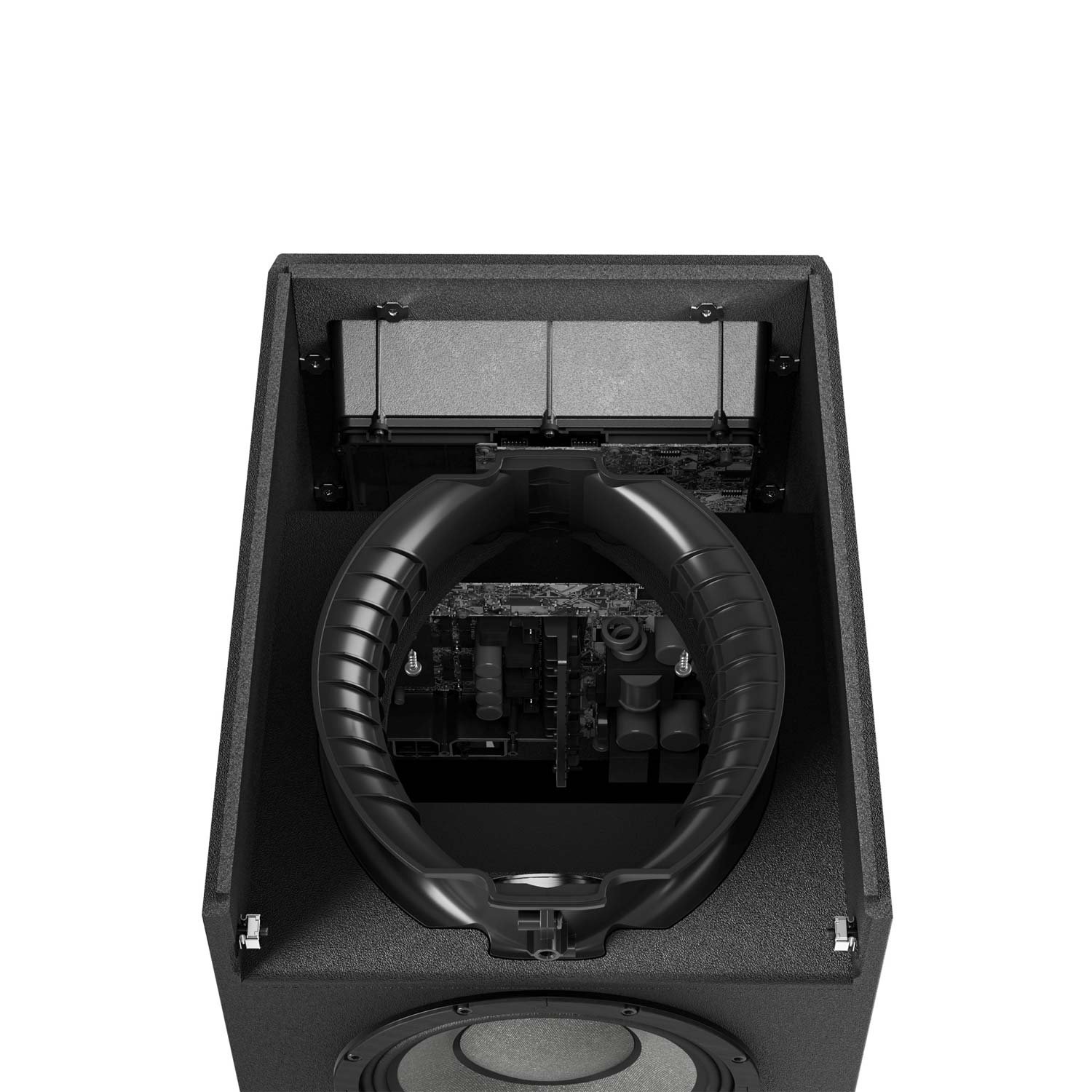

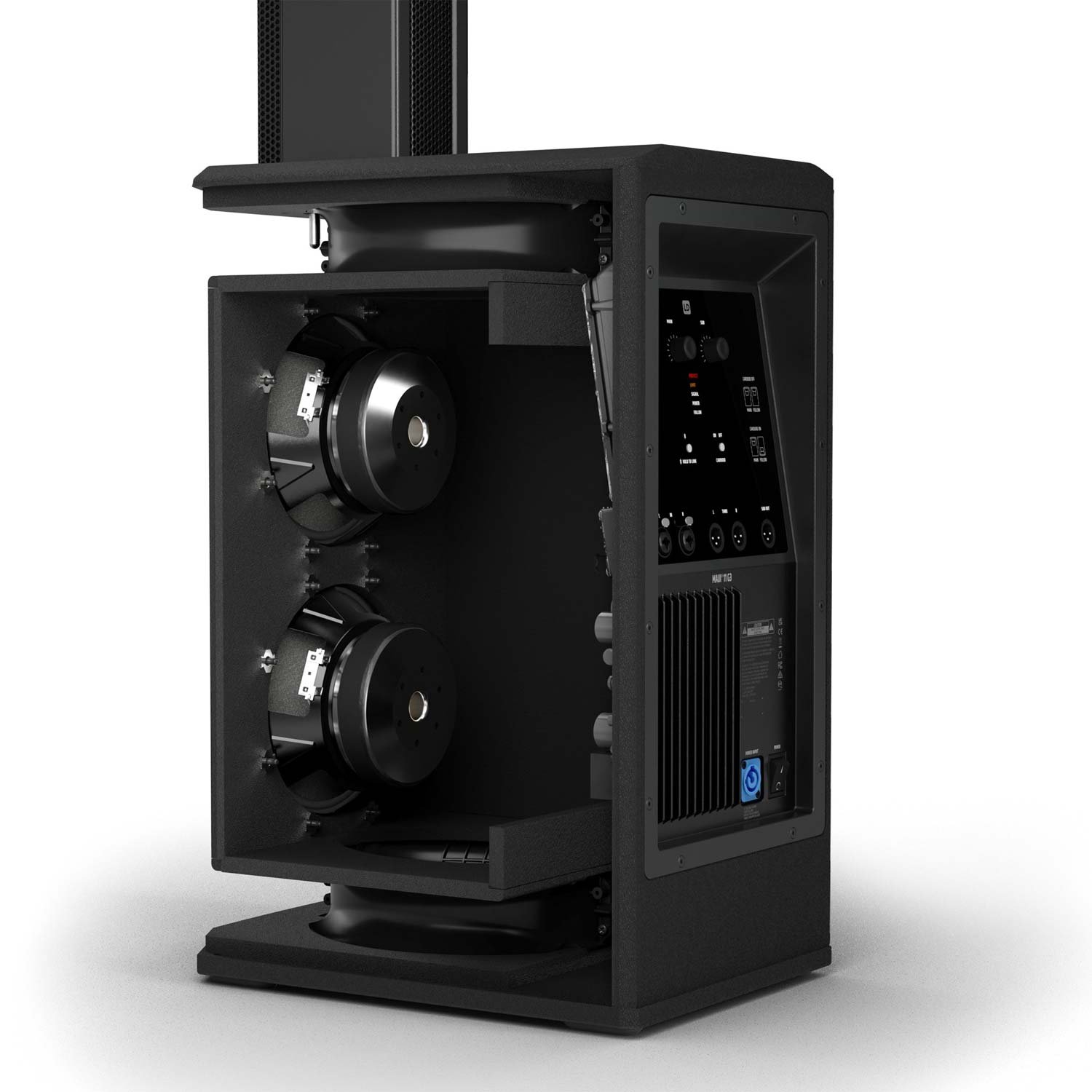

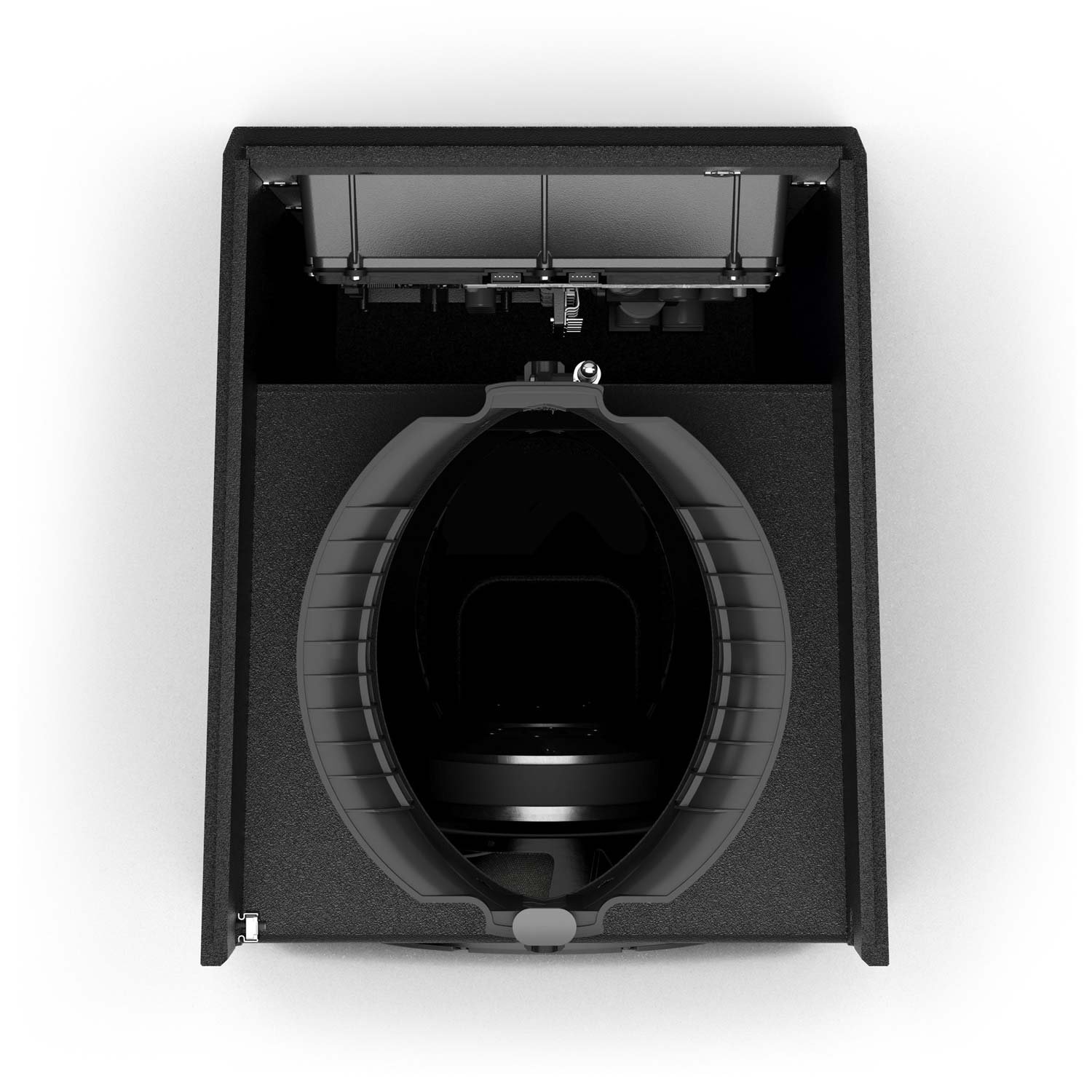

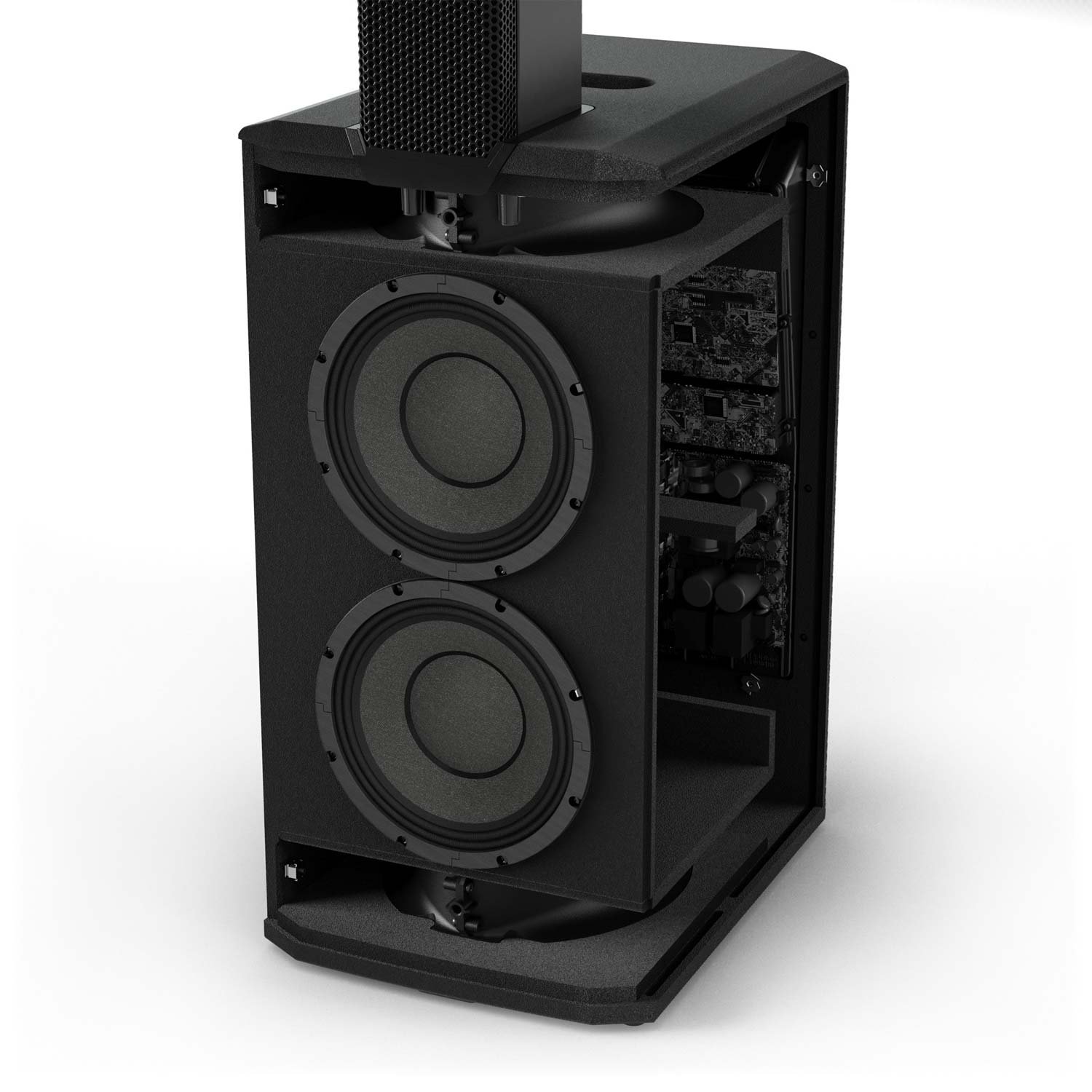

Subwoofer Unit:

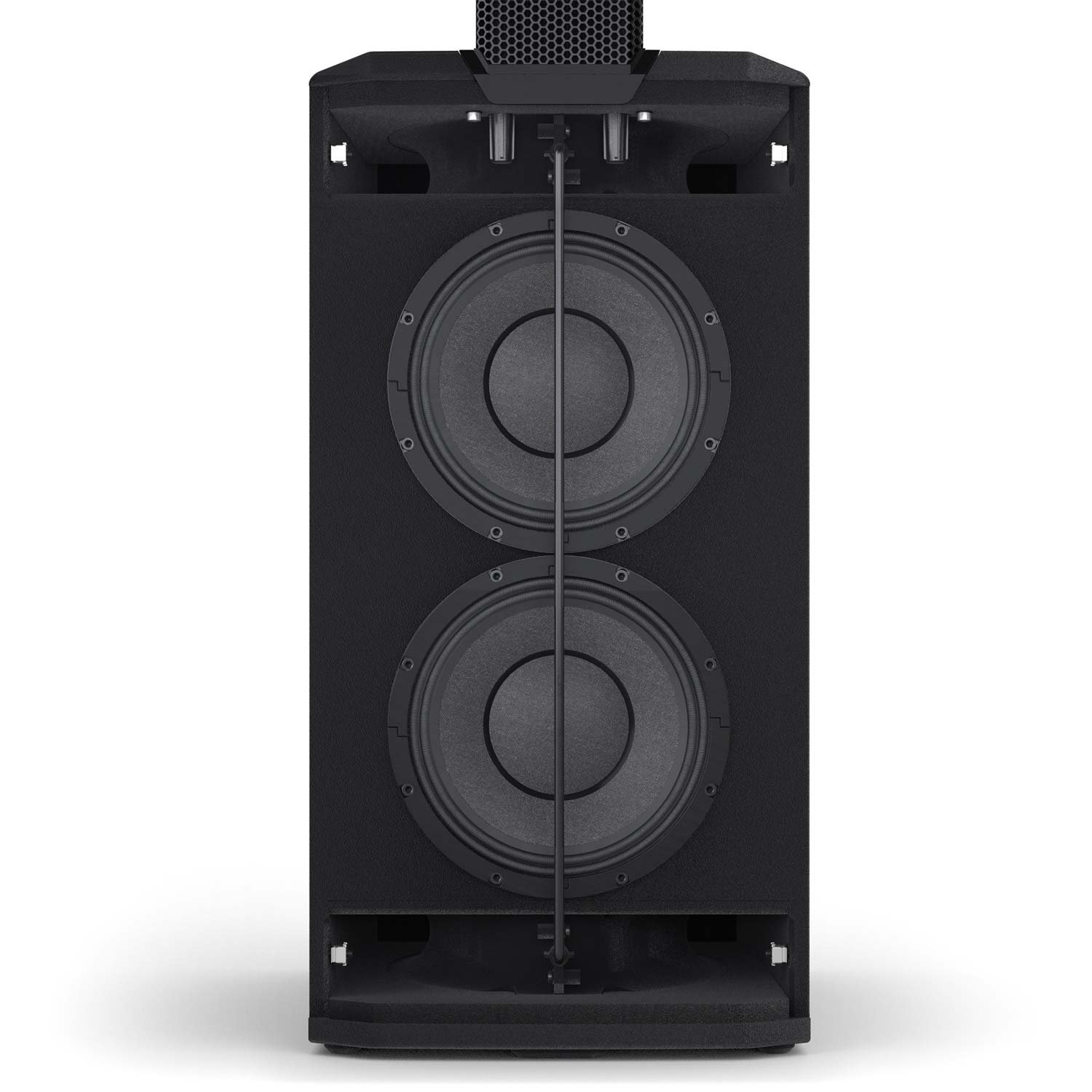

Drivers: 2 x 8″ custom woofers
Design: Bass reflex cardioid with DSP control
Cabinet Material: 15 mm multiplex plywood with polyurea coating
Power Connection: PowerCON AC input (100–240 V AC)
Frequency Range: 39 Hz – 200 Hz
Max SPL: 125 dB (peak)
Dimensions (W x H x D): 30.5 cm x 60.7 cm x 40.3 cm
Weight: 20.5 kg

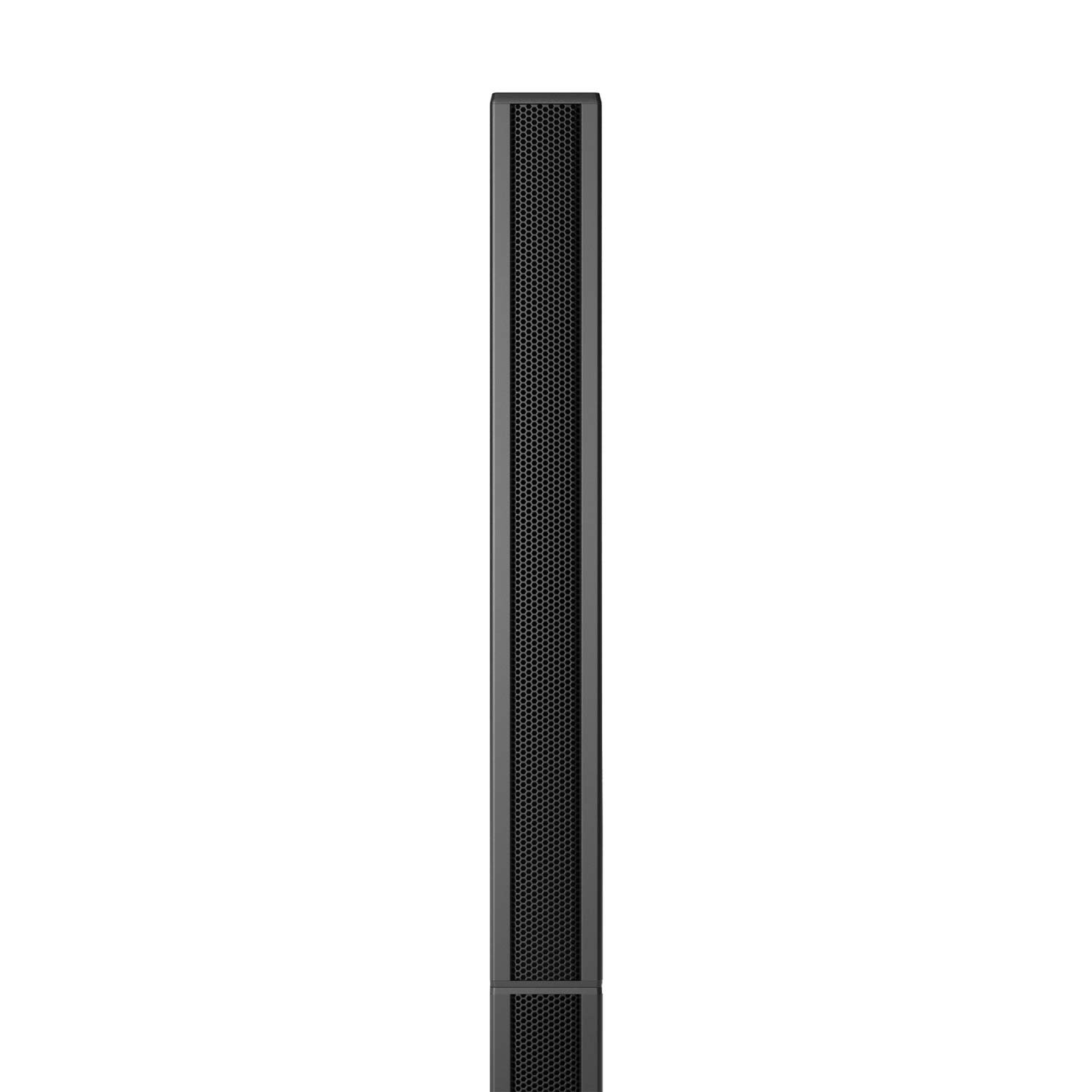

Column Unit:

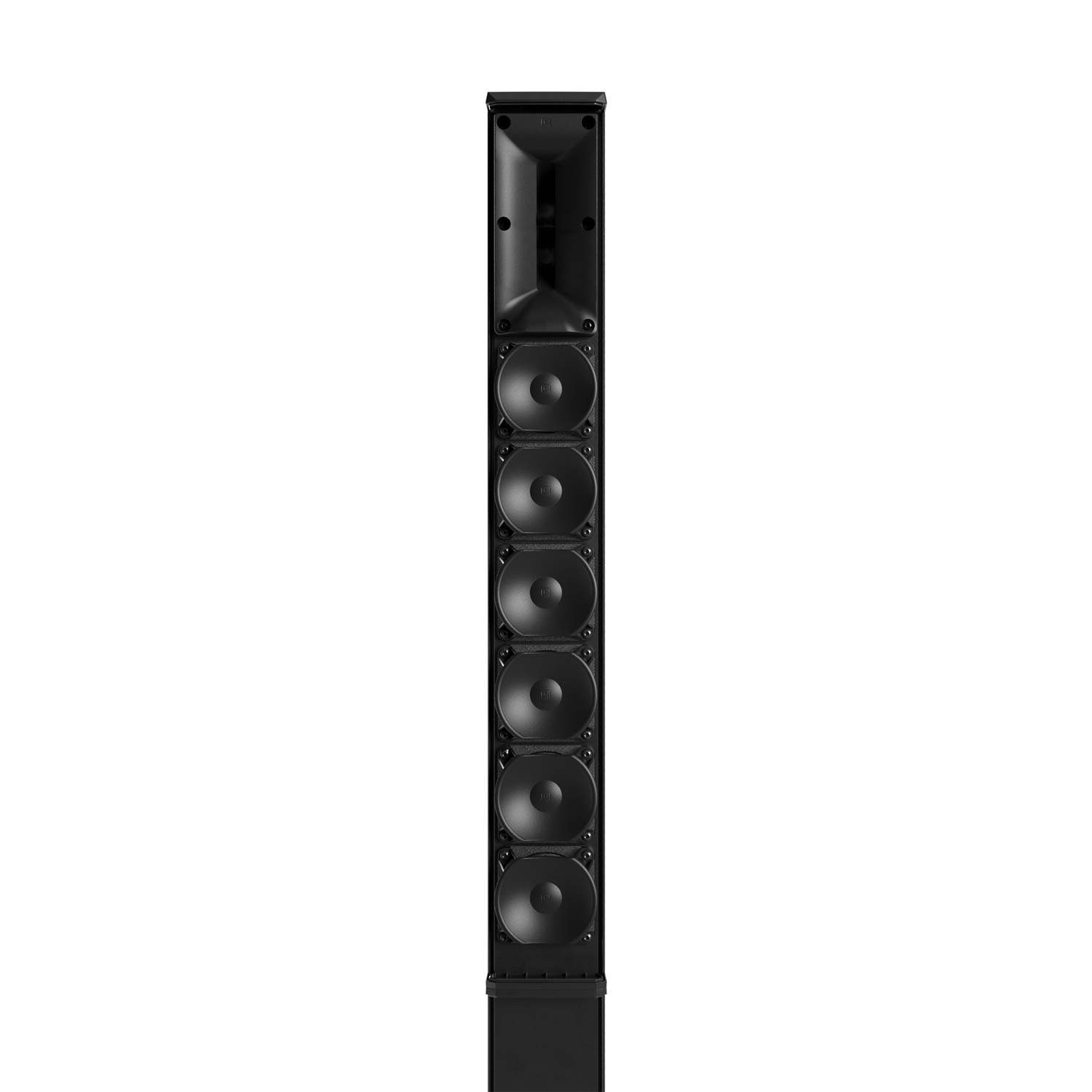

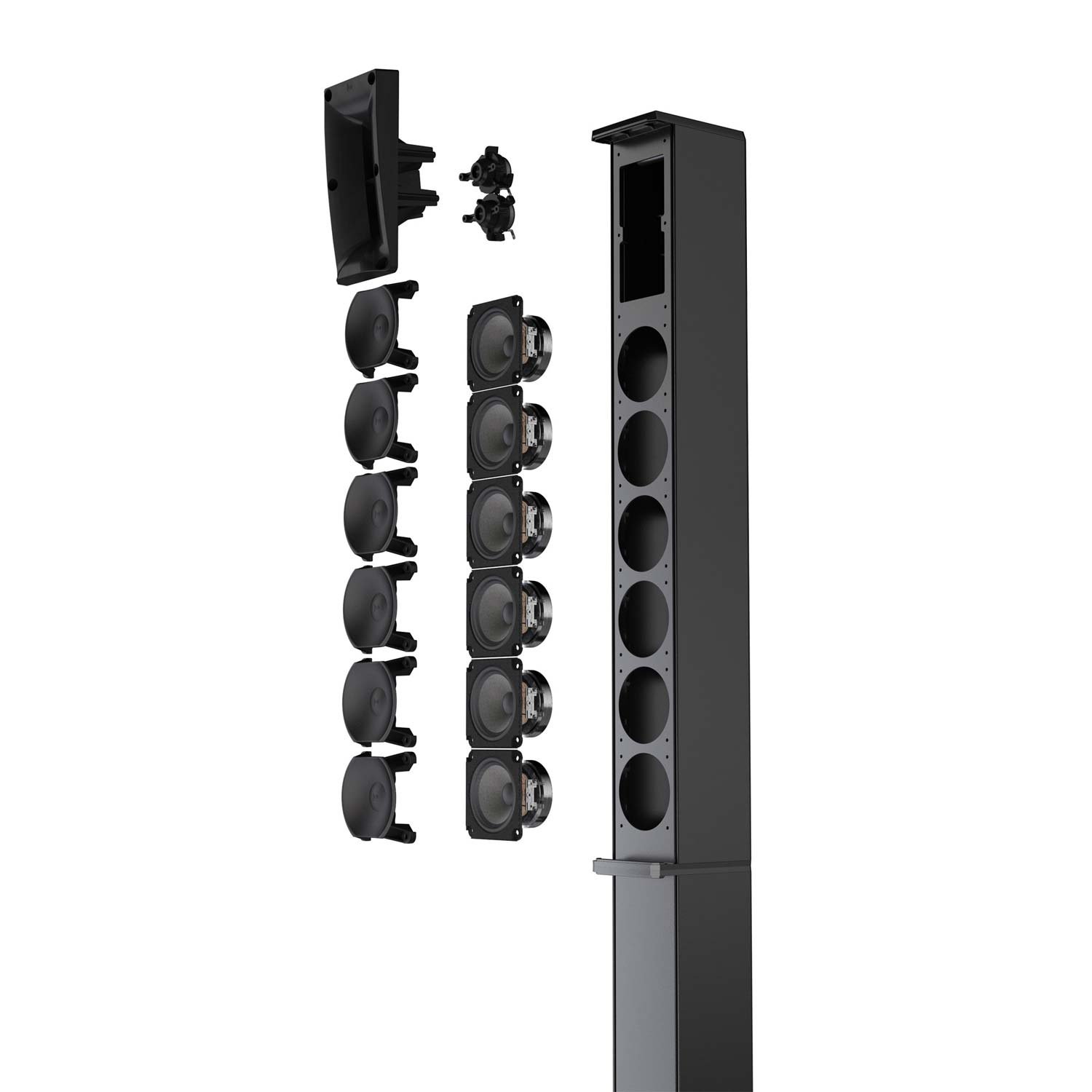

Drivers: 6 x 3.5″ midrange + 2 x 1″ tweeters
Dispersion: 120° horizontal, 30° vertical
Cabinet Material: Aluminum
Dimensions (W x H x D): 10.3 cm x 146.0 cm x 13.5 cm
Weight: 10.2 kg
System Overview:
Total Power: 730 W RMS / 1,460 W peak
Frequency Response: 39 Hz – 20 kHz (–10 dB)

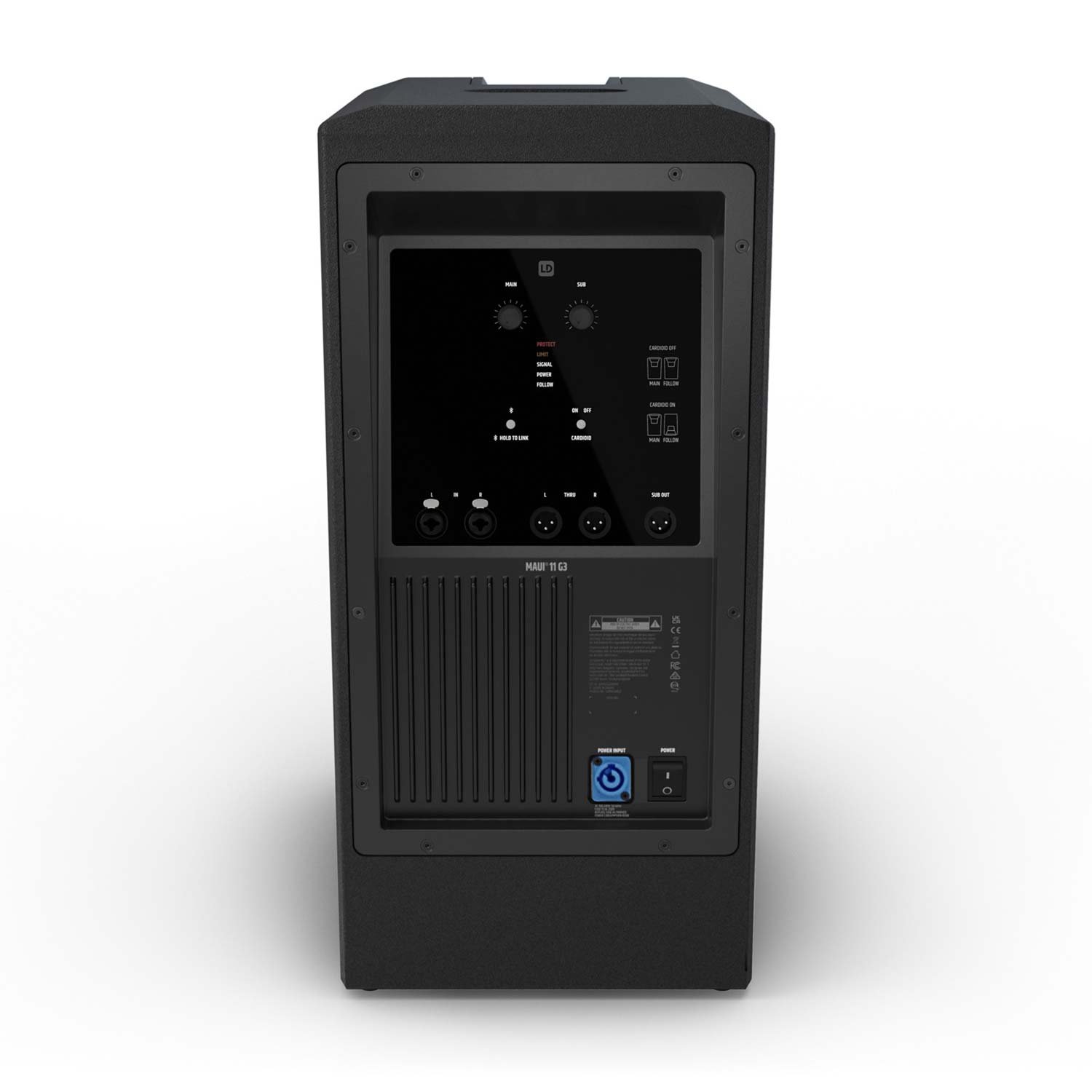

Inputs: 2 x combo XLR/TRS, Bluetooth 5.0
Outputs: Sub Out, XLR Thru (link output)
DSP Features: Multi-band limiter, thermal, DC, and short-circuit protection
Bluetooth Codec Support: AAC, SBC
Weight
30.7 kg
Dimensions
205.2 cm
