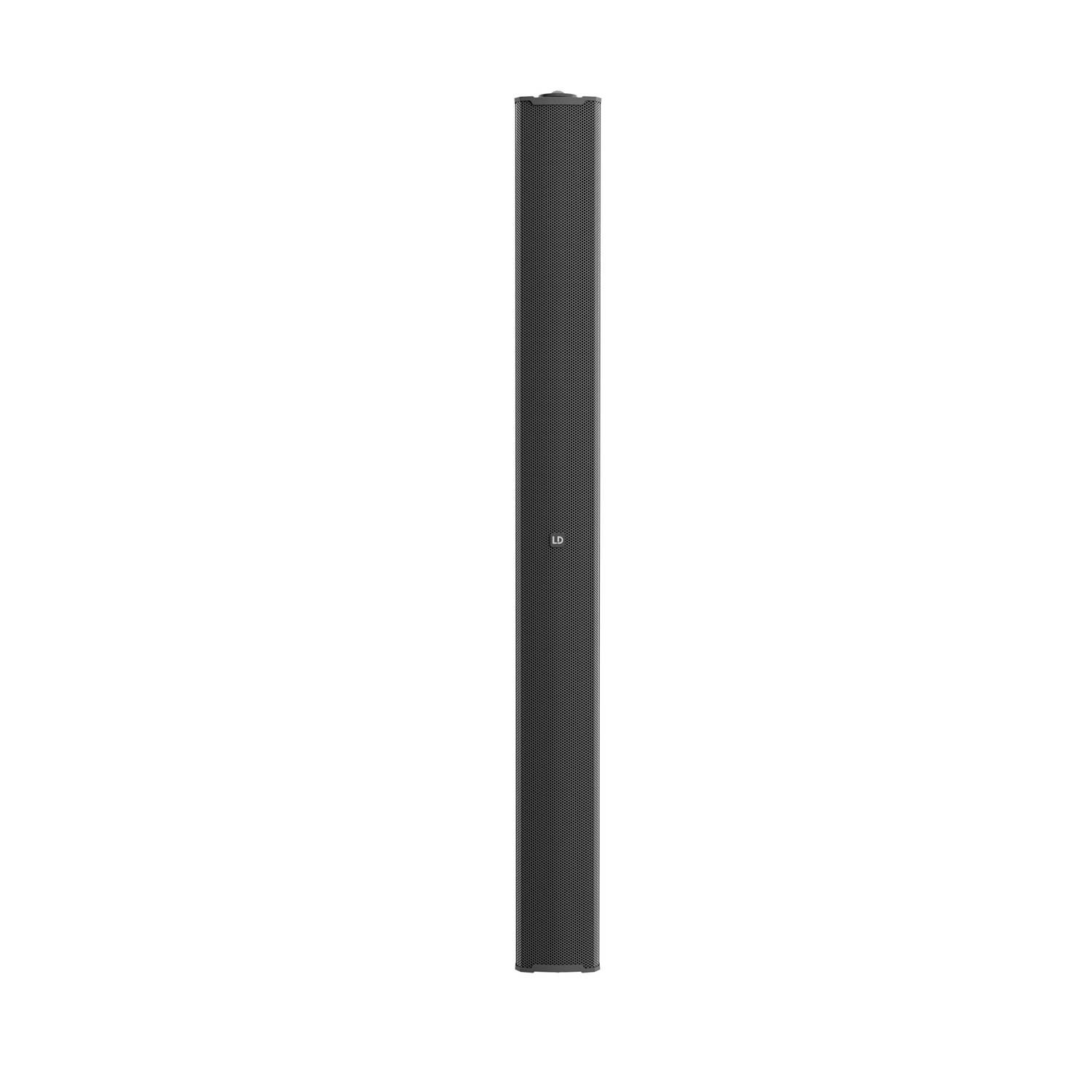

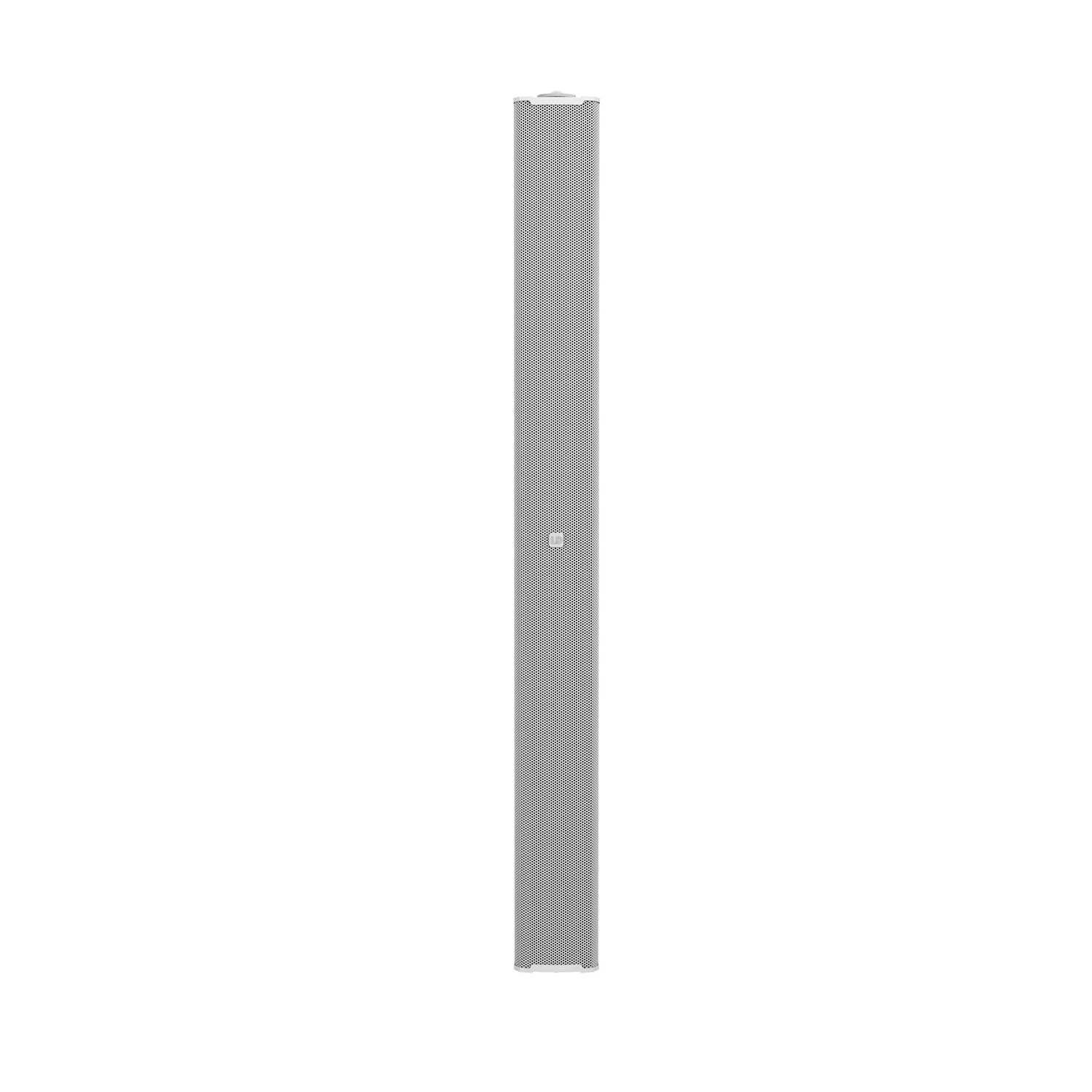

LD Systems MAUI i1 – Passive Indoor/Outdoor Installation Column Loudspeaker

23,500 EGP

✅ Compact passive column speaker with 9 x 3″ woofers and 2 x 1″ tweeters
✅ Wide 120° horizontal and controlled 30° vertical dispersion
✅ 120 W RMS, 8 Ohm or 70/100 V operation
✅ Weather-resistant IP65 design

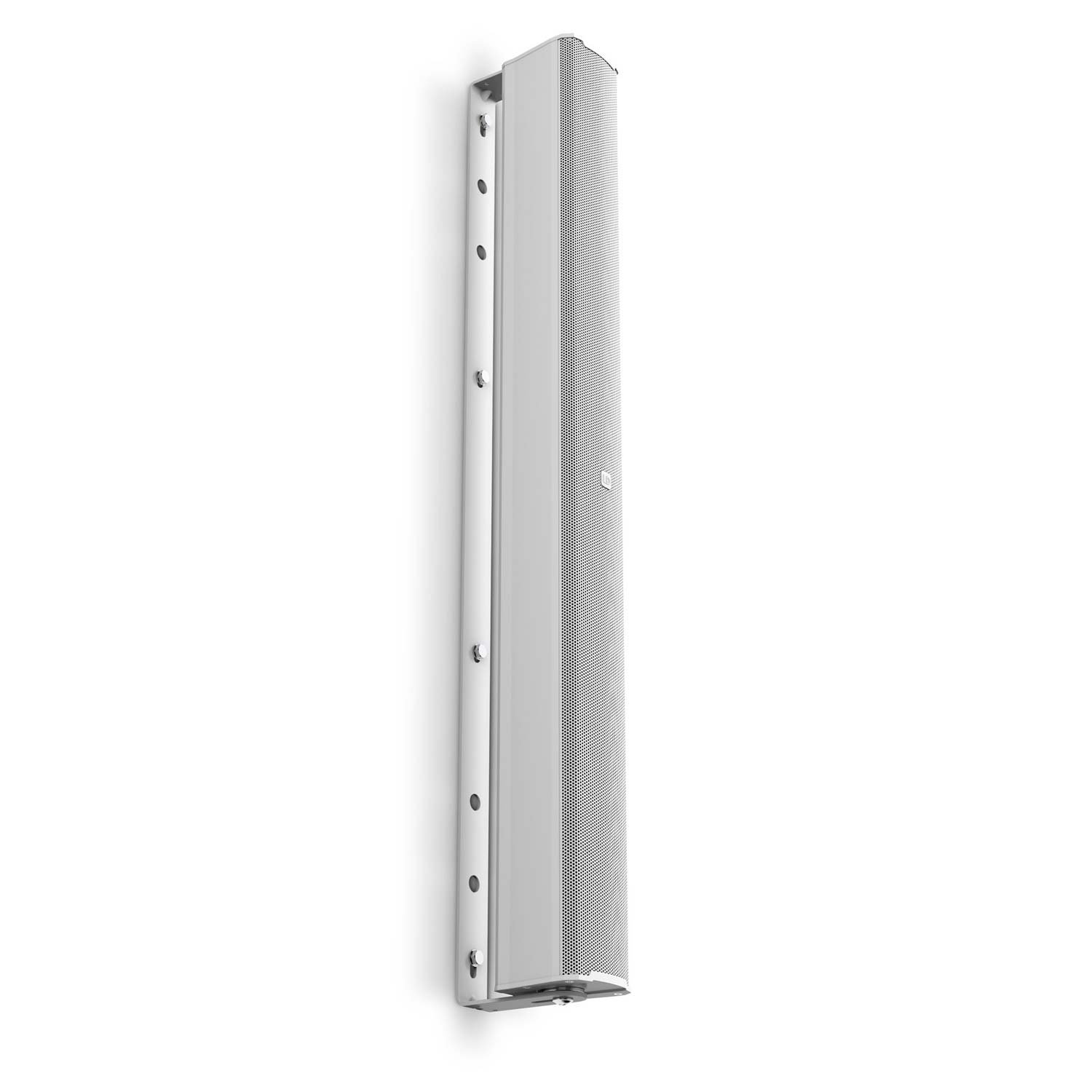

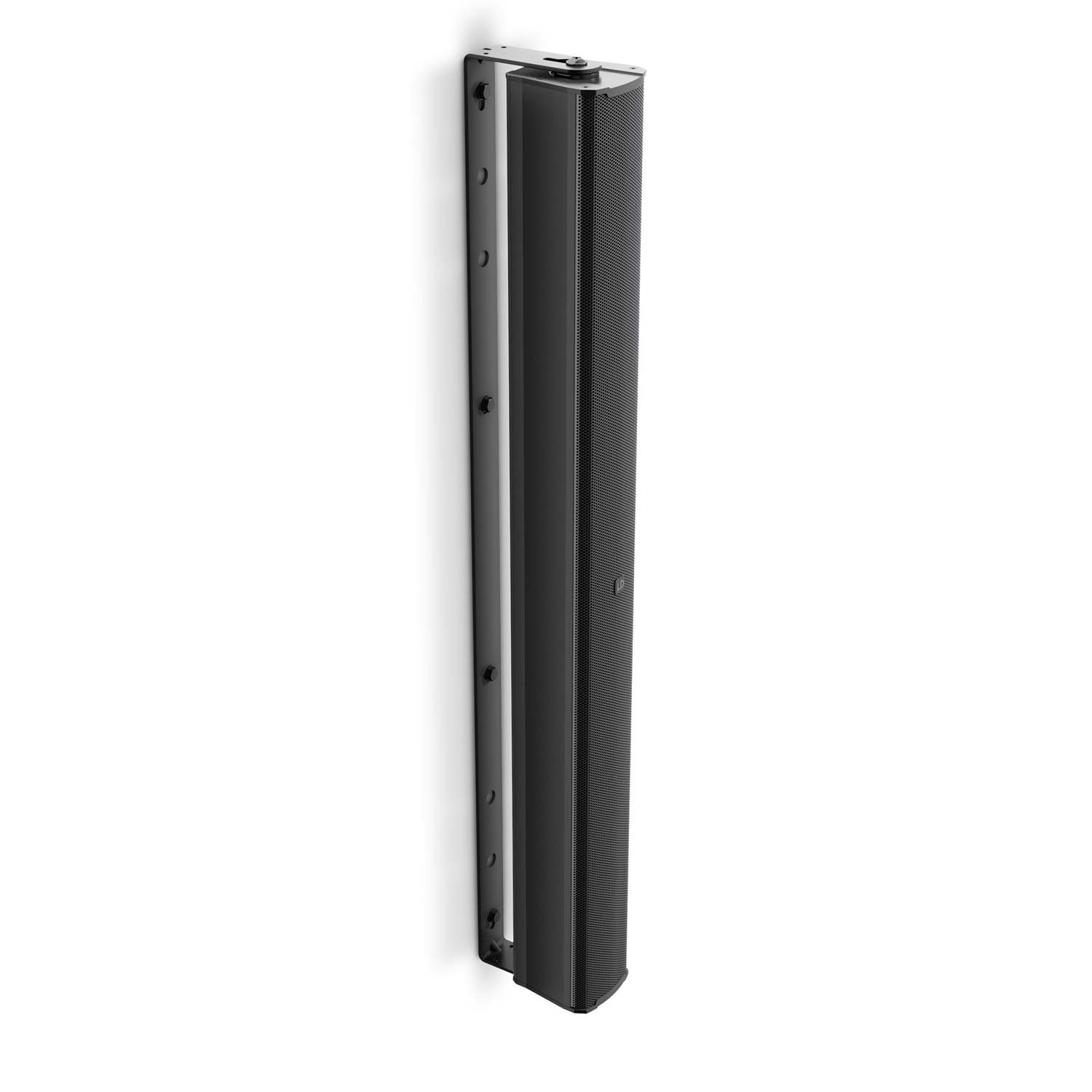

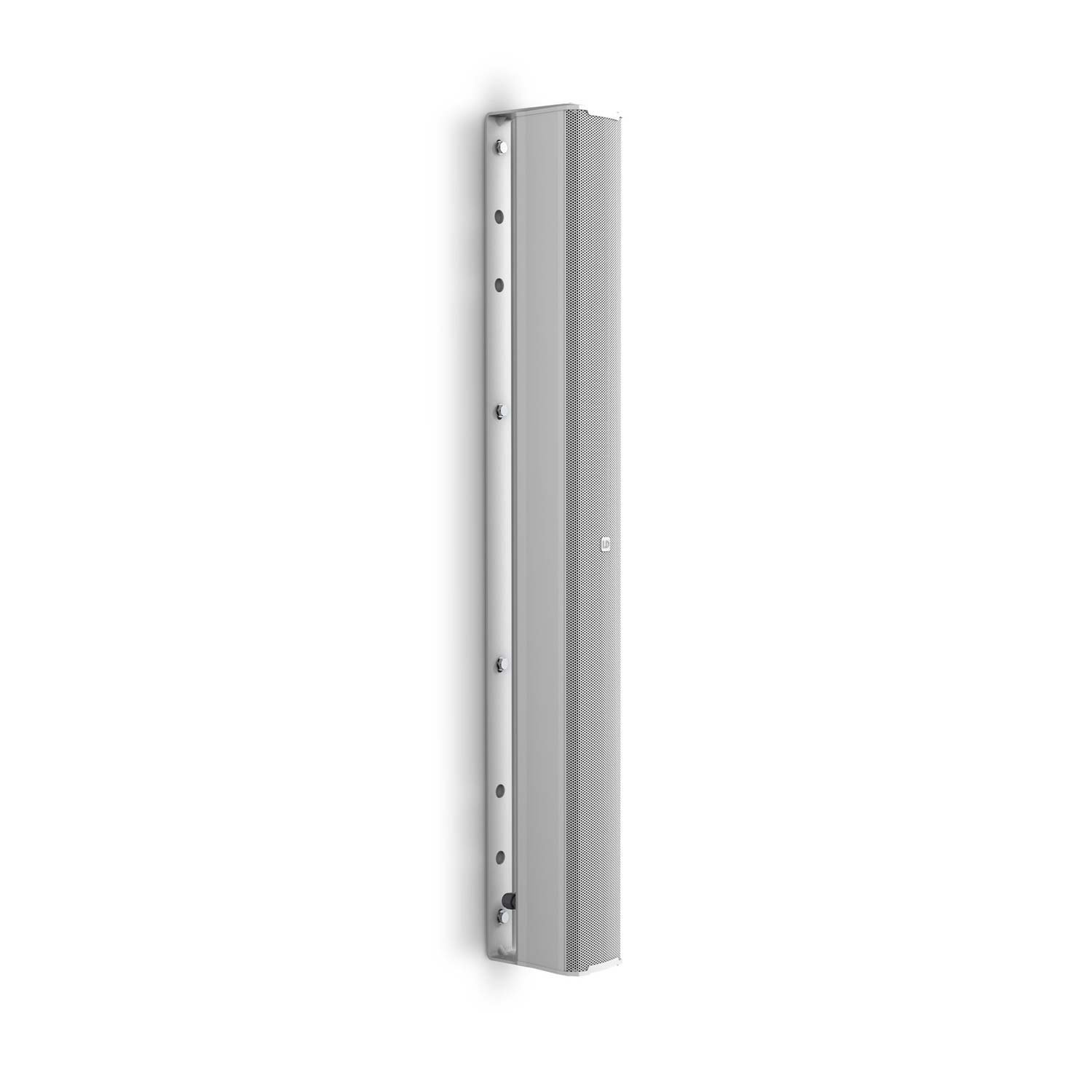

✅ Includes U-bracket for easy installation

Add to Wishlist
Add to Wishlist
  • Top Brands
  • Secure Payments
  • Cash On Delivery Available

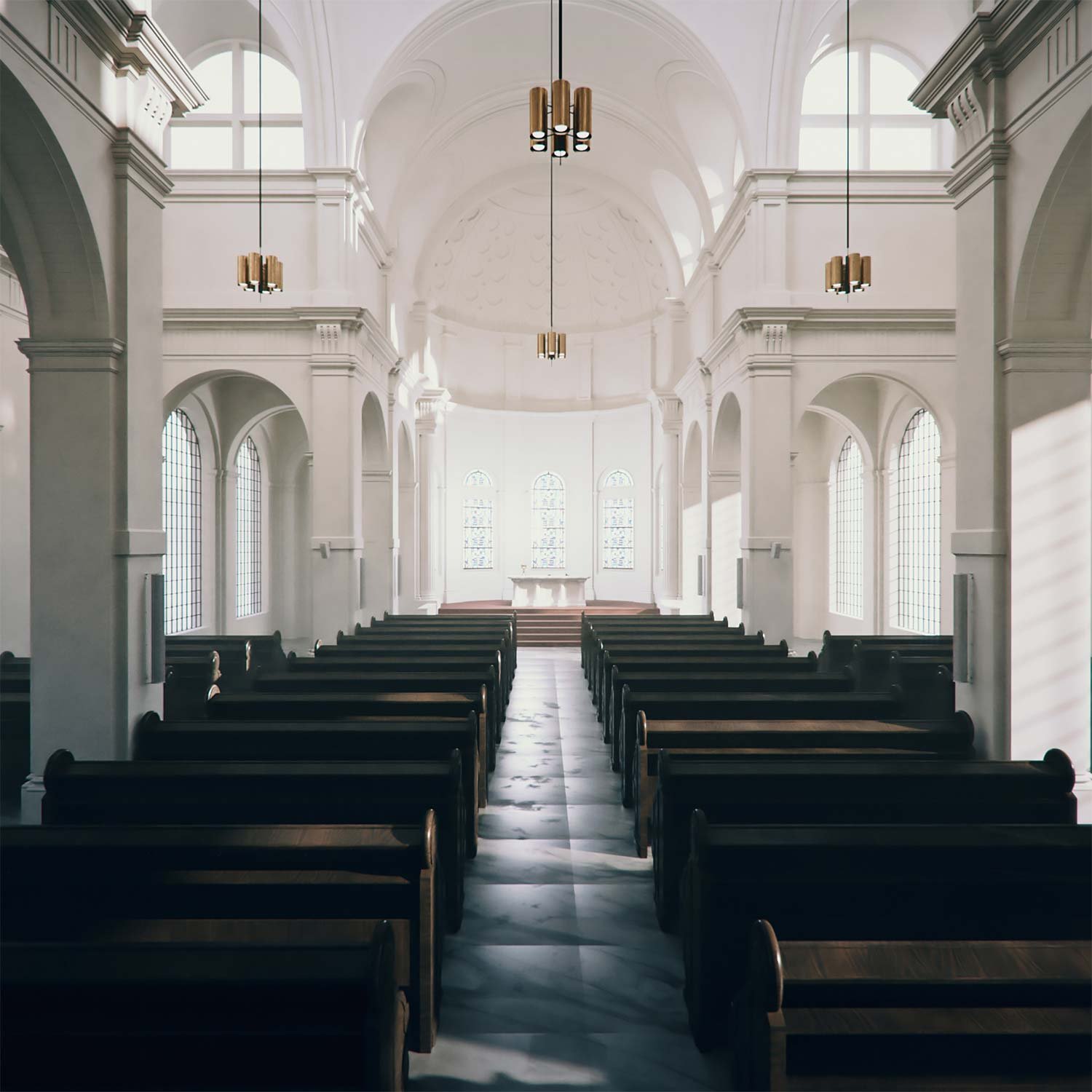

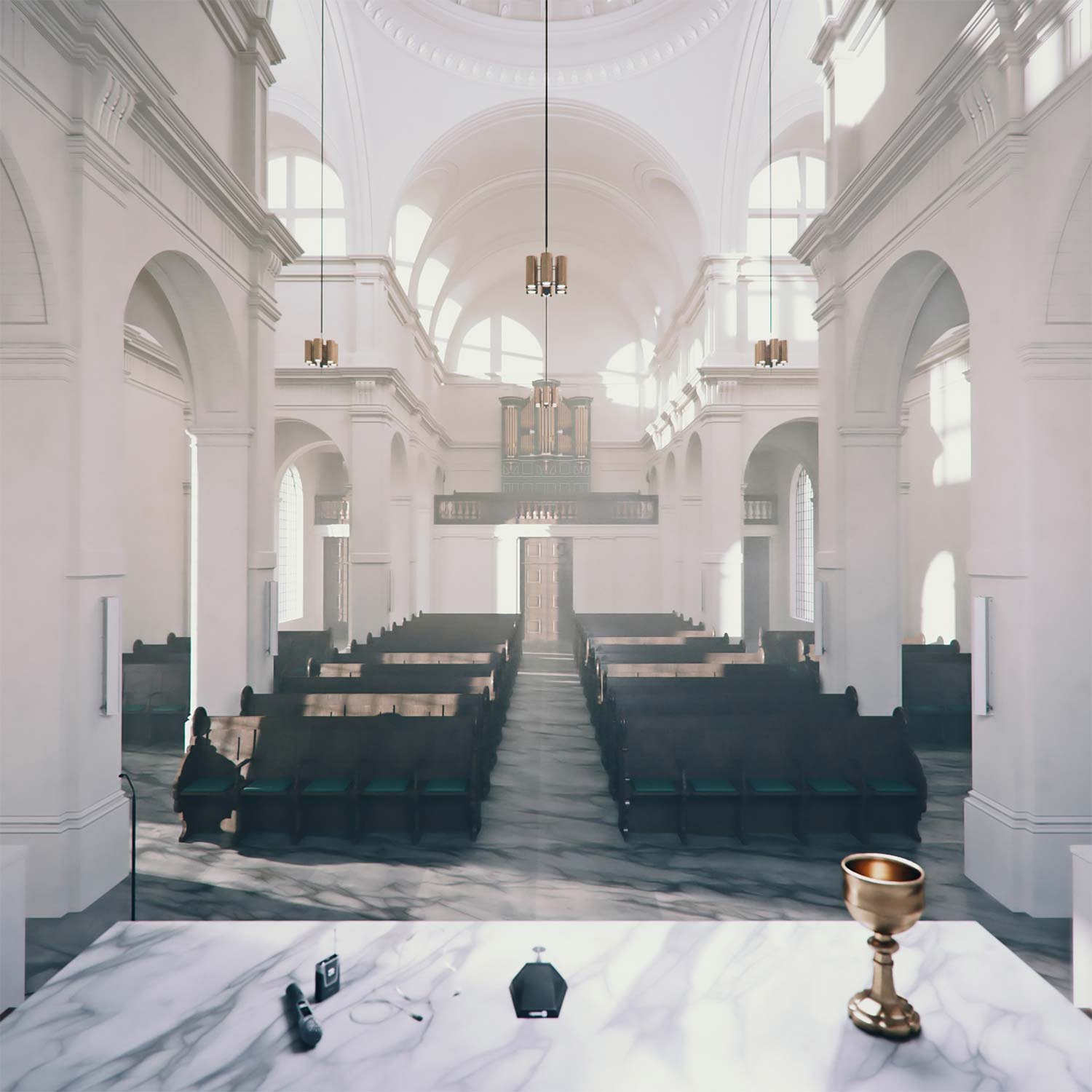

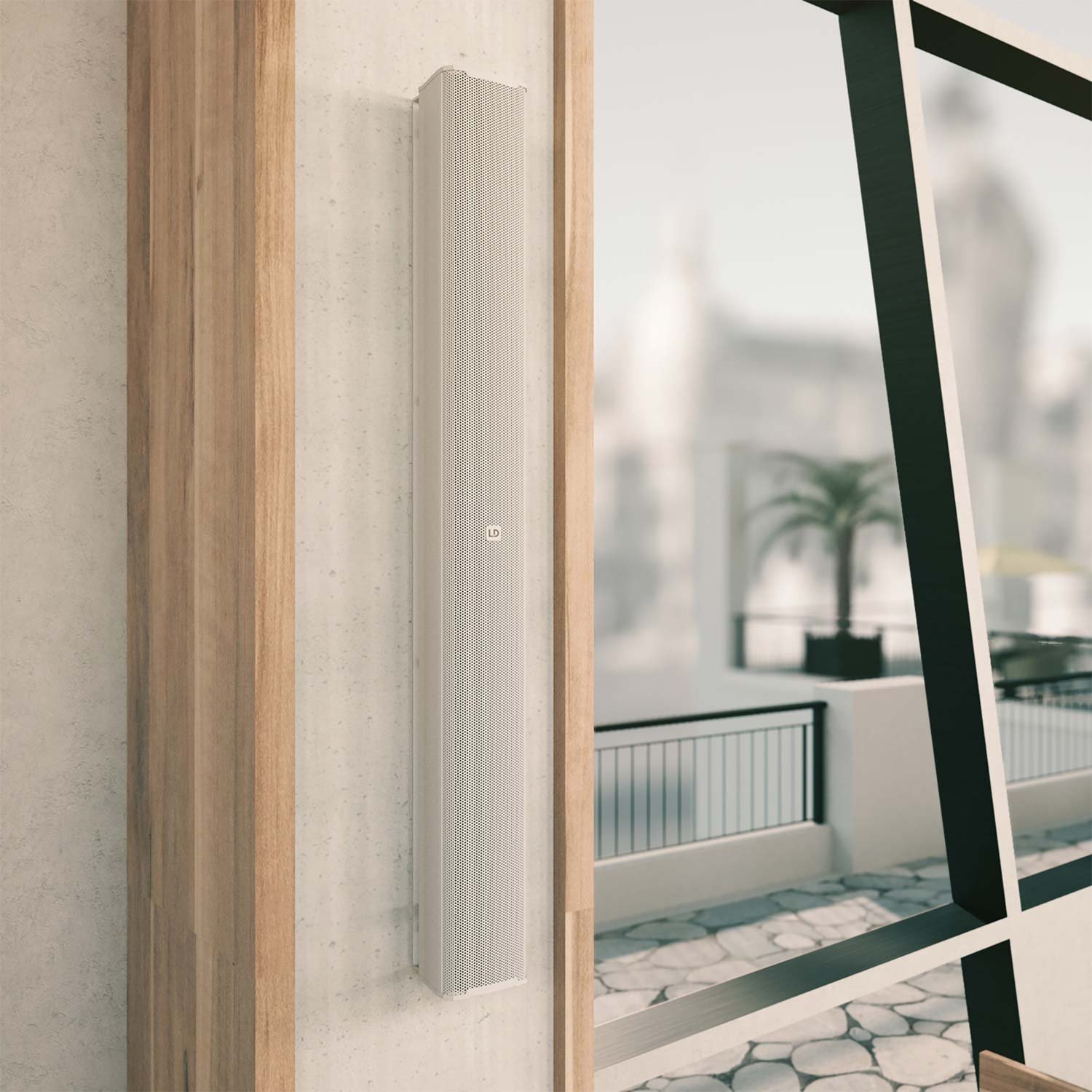

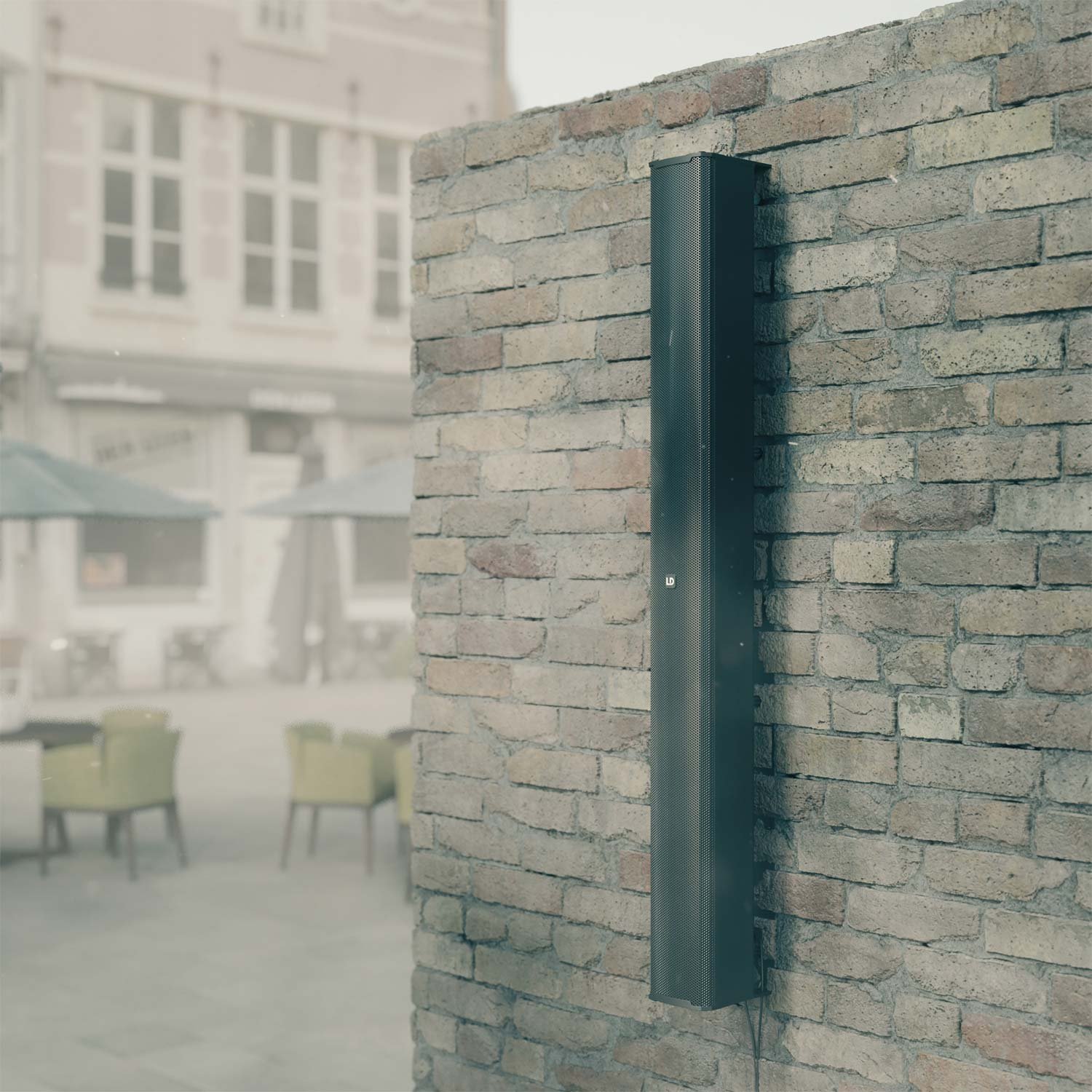

The LD Systems MAUI i1 is a passive column loudspeaker designed for both indoor and outdoor installations where clear and intelligible audio reproduction is essential, even in acoustically challenging environments.

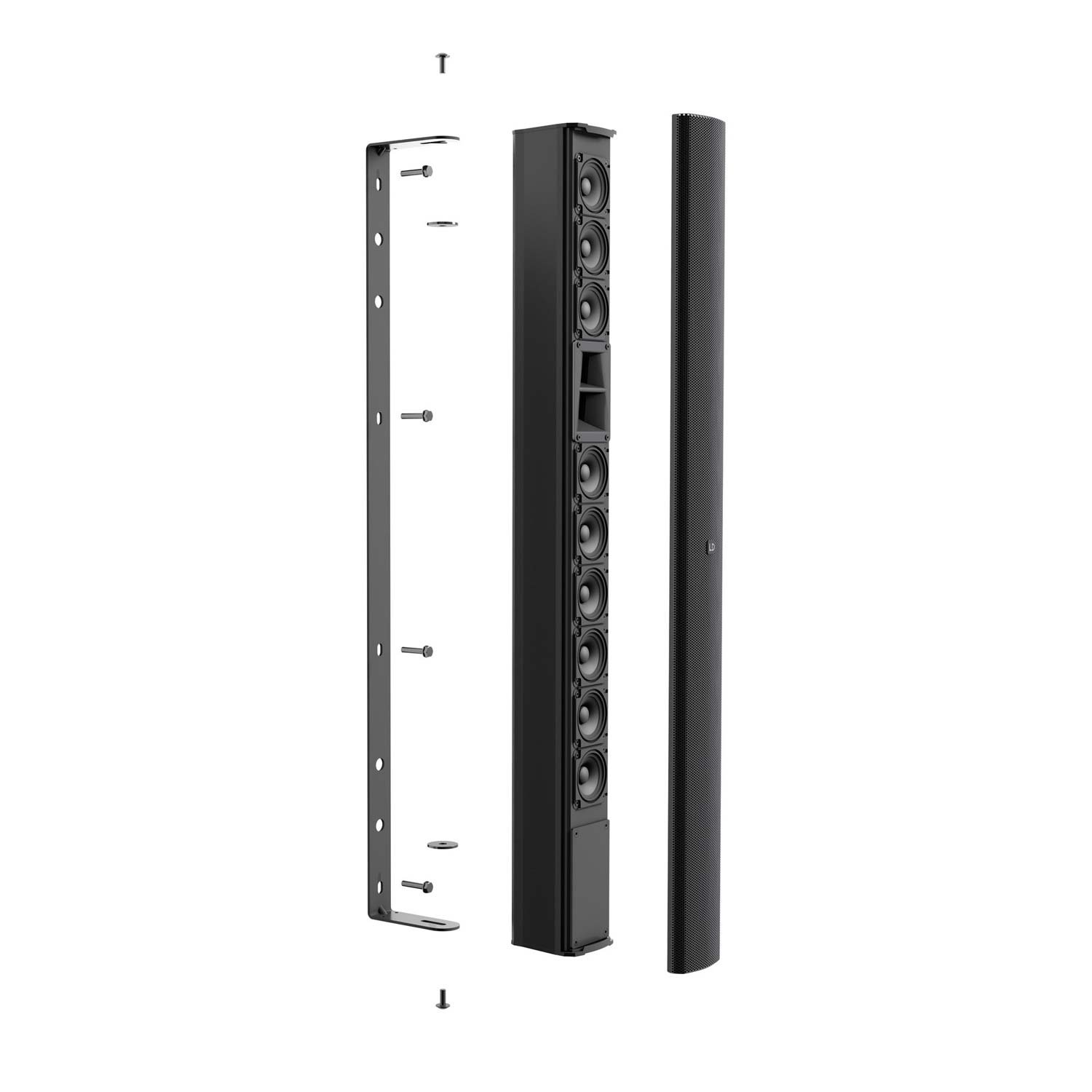

Featuring nine 3″ mid-range drivers and two 1″ neodymium high-frequency drivers, the MAUI i1 delivers balanced and articulate sound.
Its BEM-optimized waveguide ensures wide horizontal dispersion of 120° and controlled vertical dispersion of 30°, minimizing unwanted reflections from floors and ceilings.

Read more
    • High-Quality Audio Components: Nine 3″ mid-range drivers and two 1″ neodymium tweeters deliver clear and balanced sound reproduction.
    • Optimized Dispersion: BEM-optimized waveguide provides 120° horizontal and 30° vertical dispersion for even coverage and reduced reflections.
    • Flexible Power Options: Selectable operation between 8 ohms and 70 V / 100 V systems with multiple power taps to suit various installation needs.

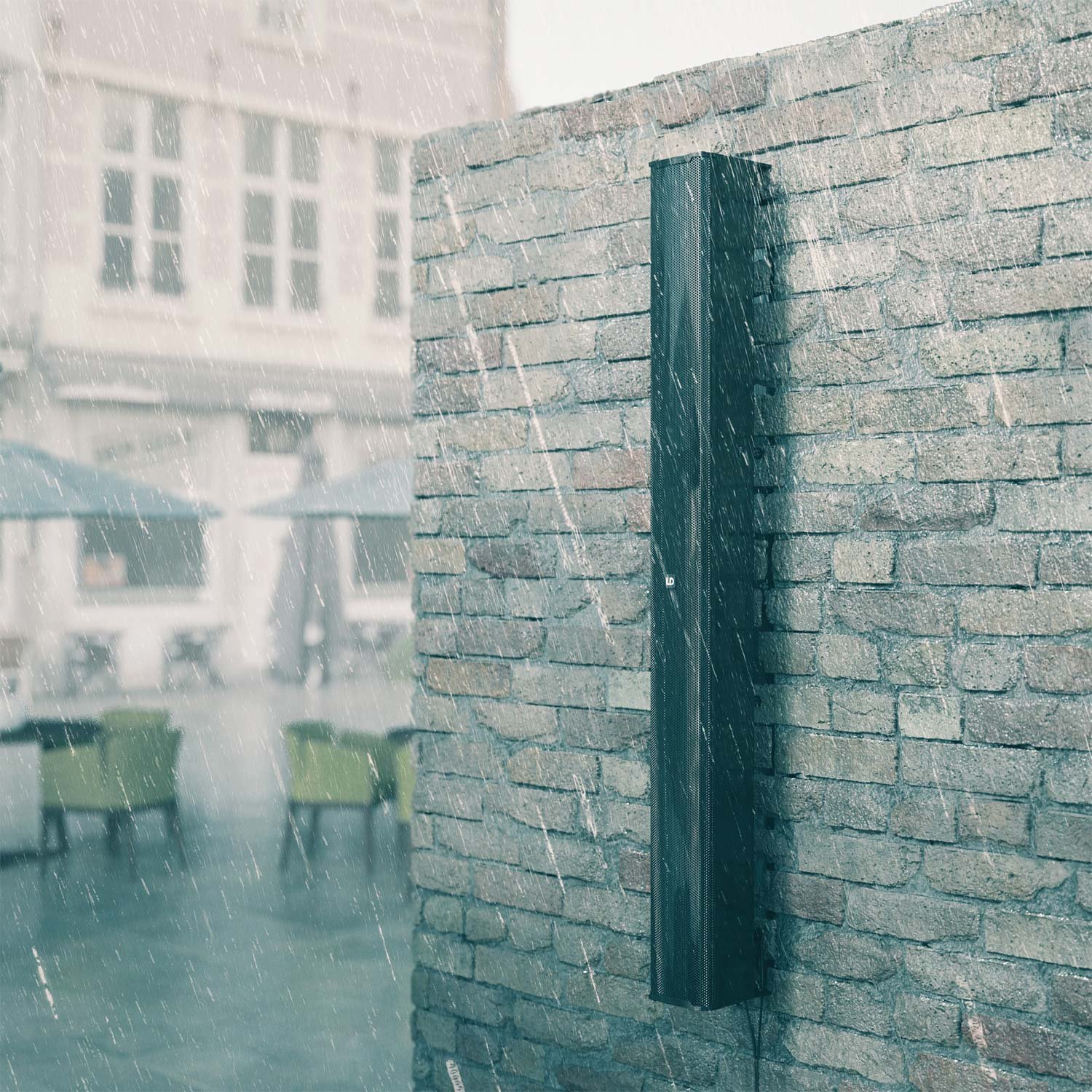

    • Weather-Resistant Design: IP65-rated construction with weather-treated components and sealed connection panel ensures durability in outdoor environments.

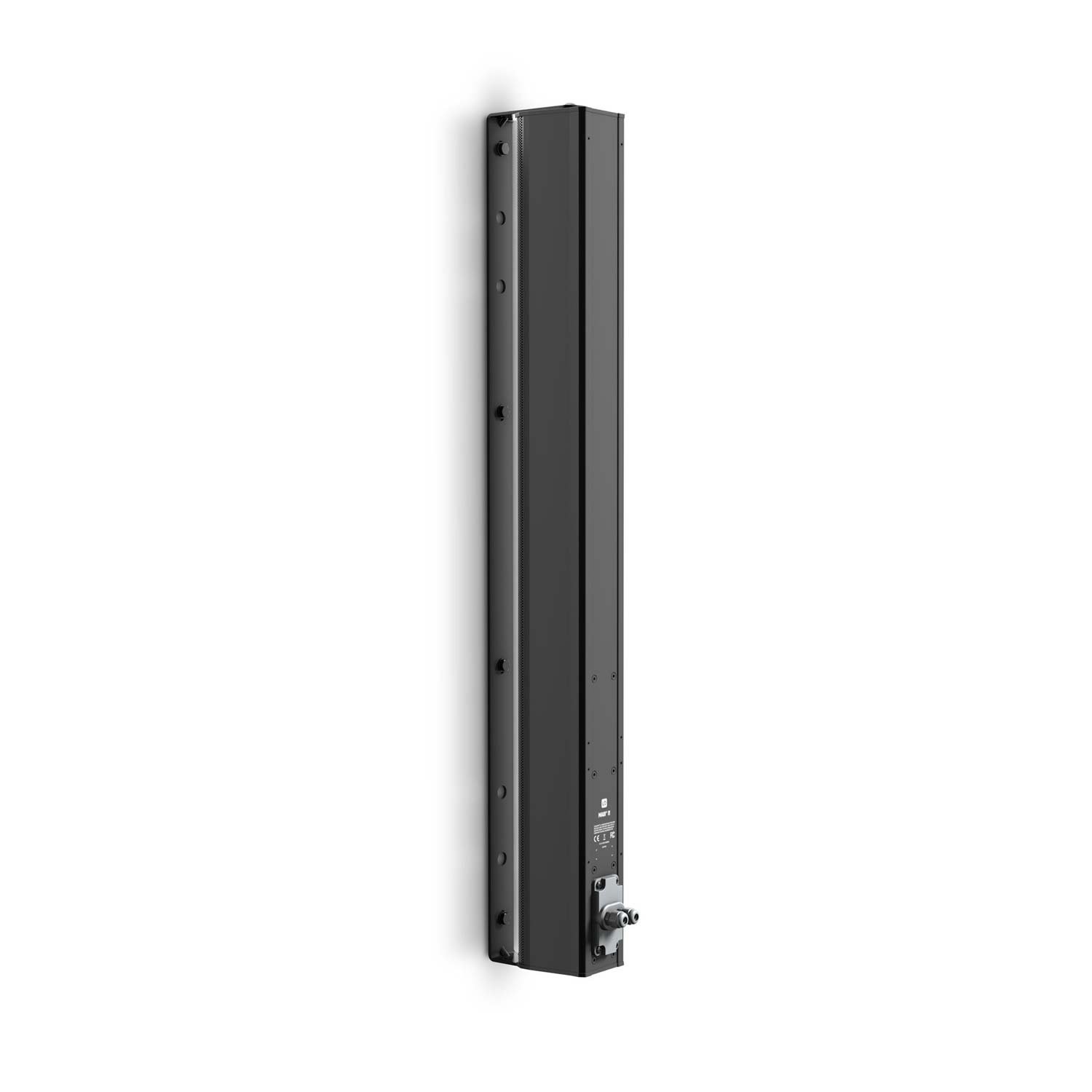

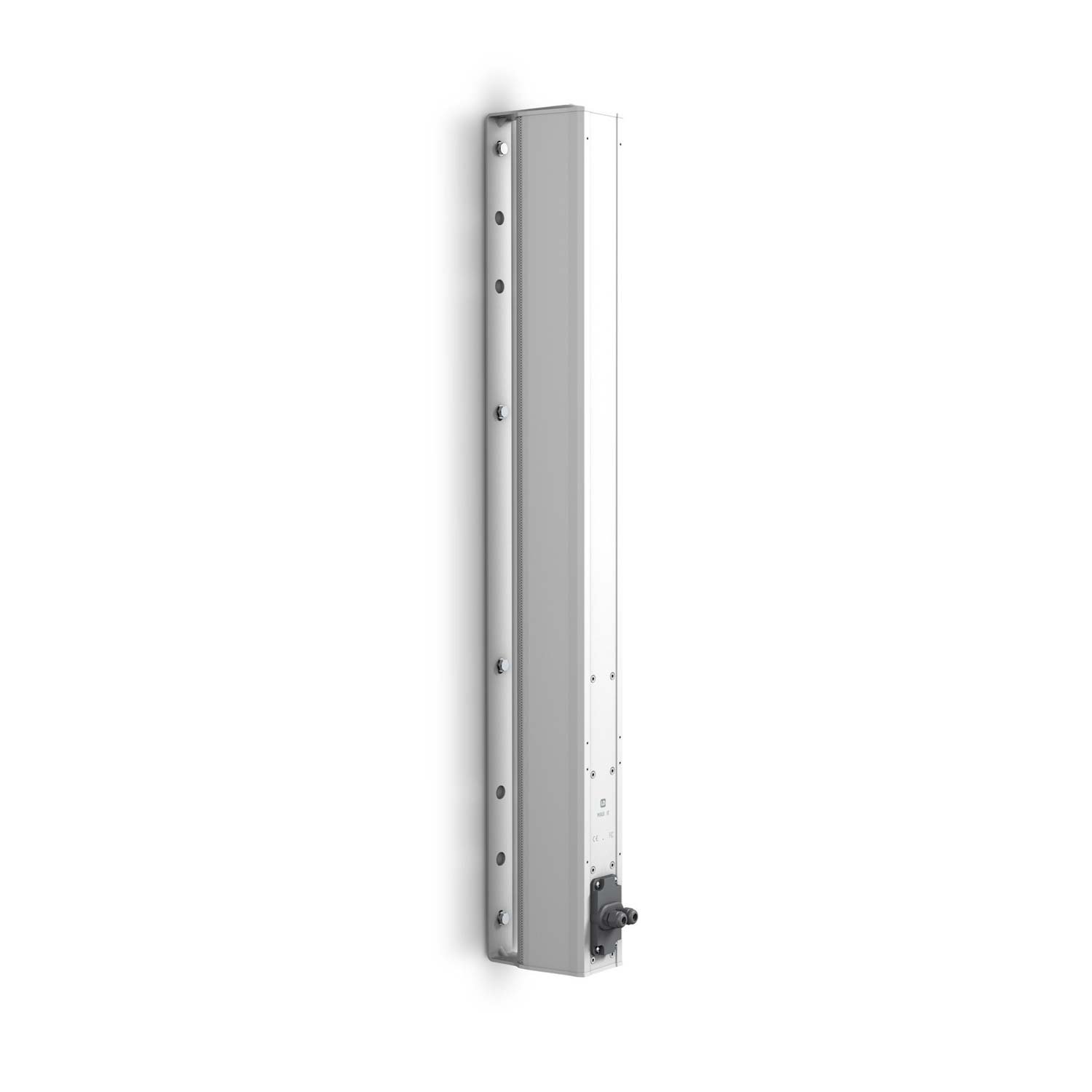

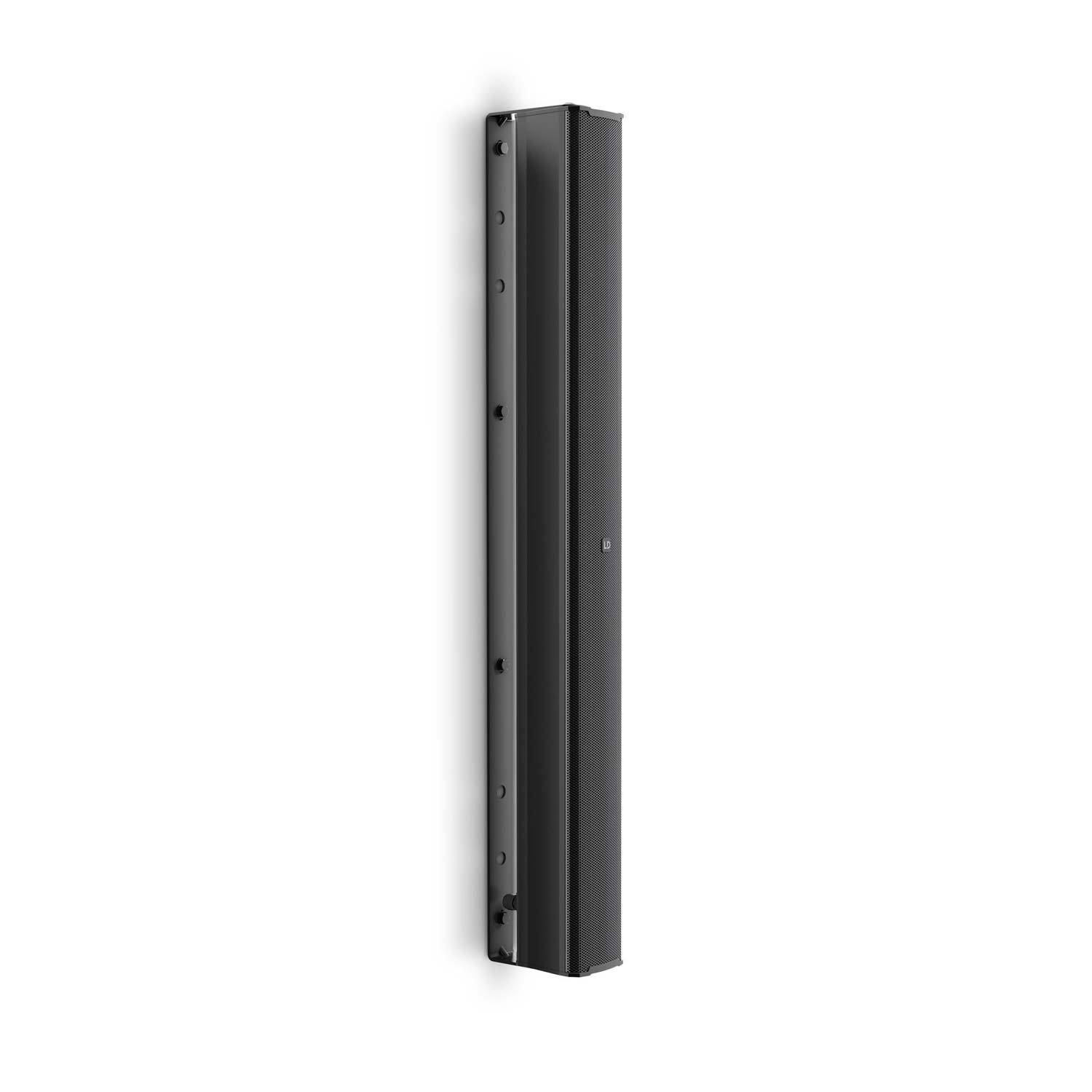

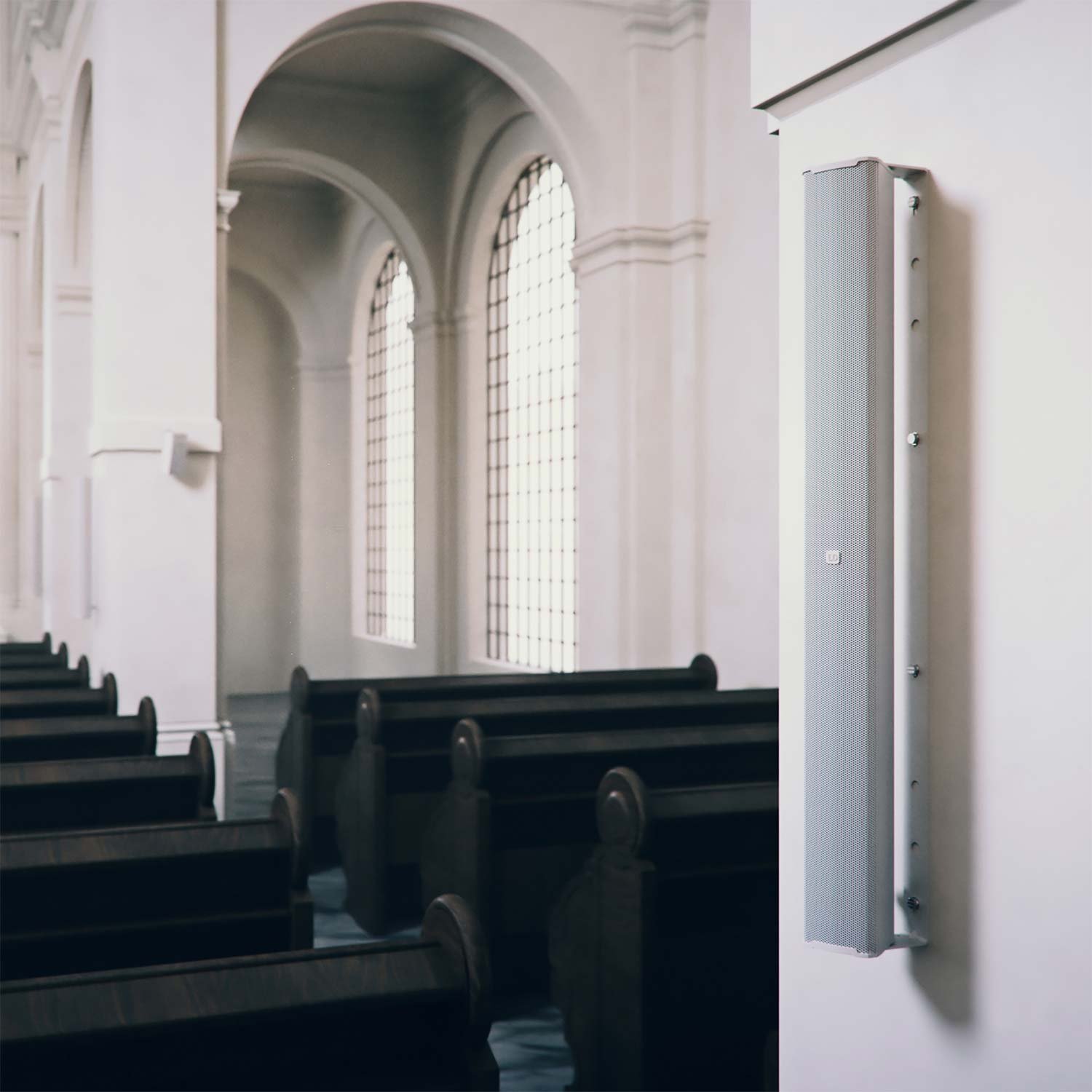

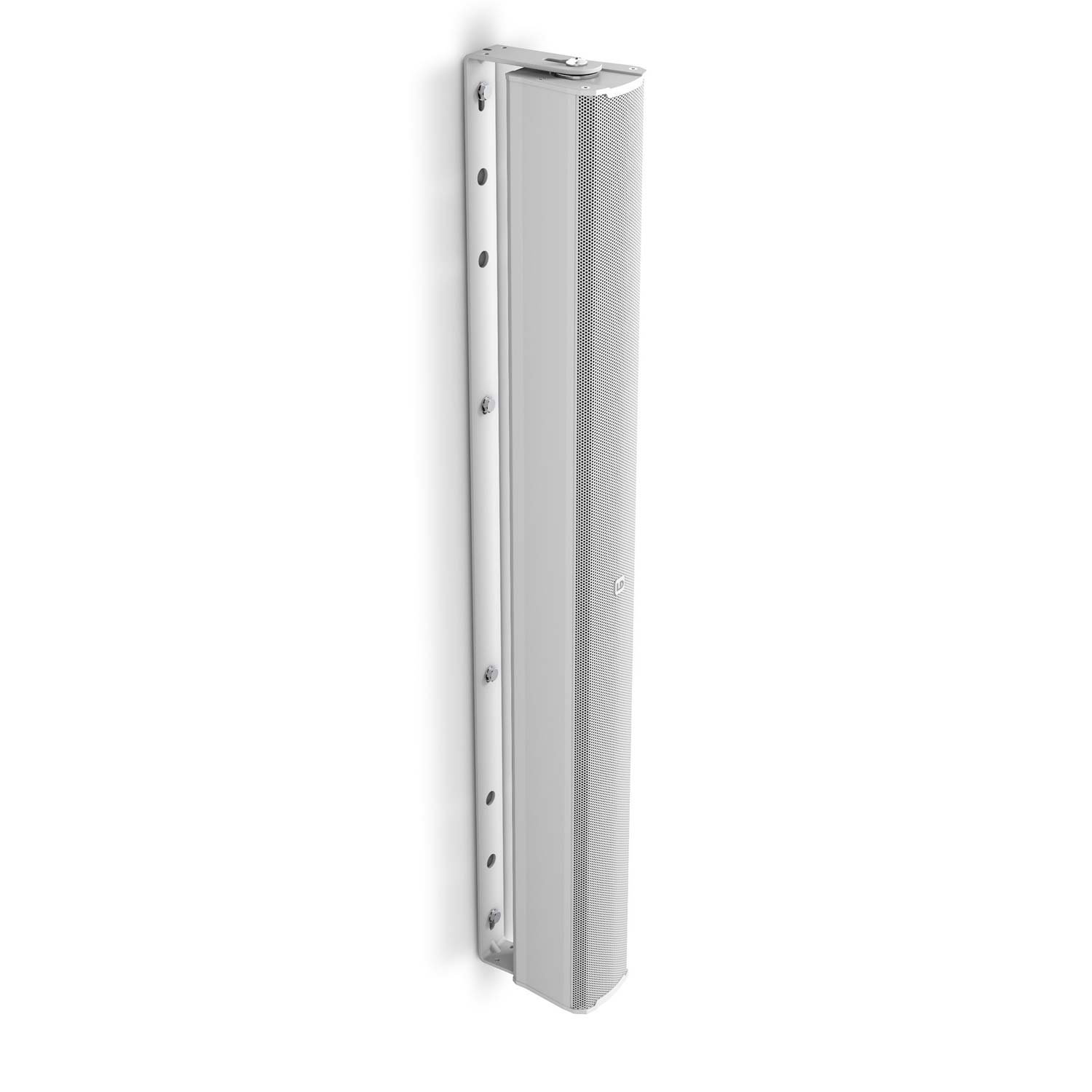

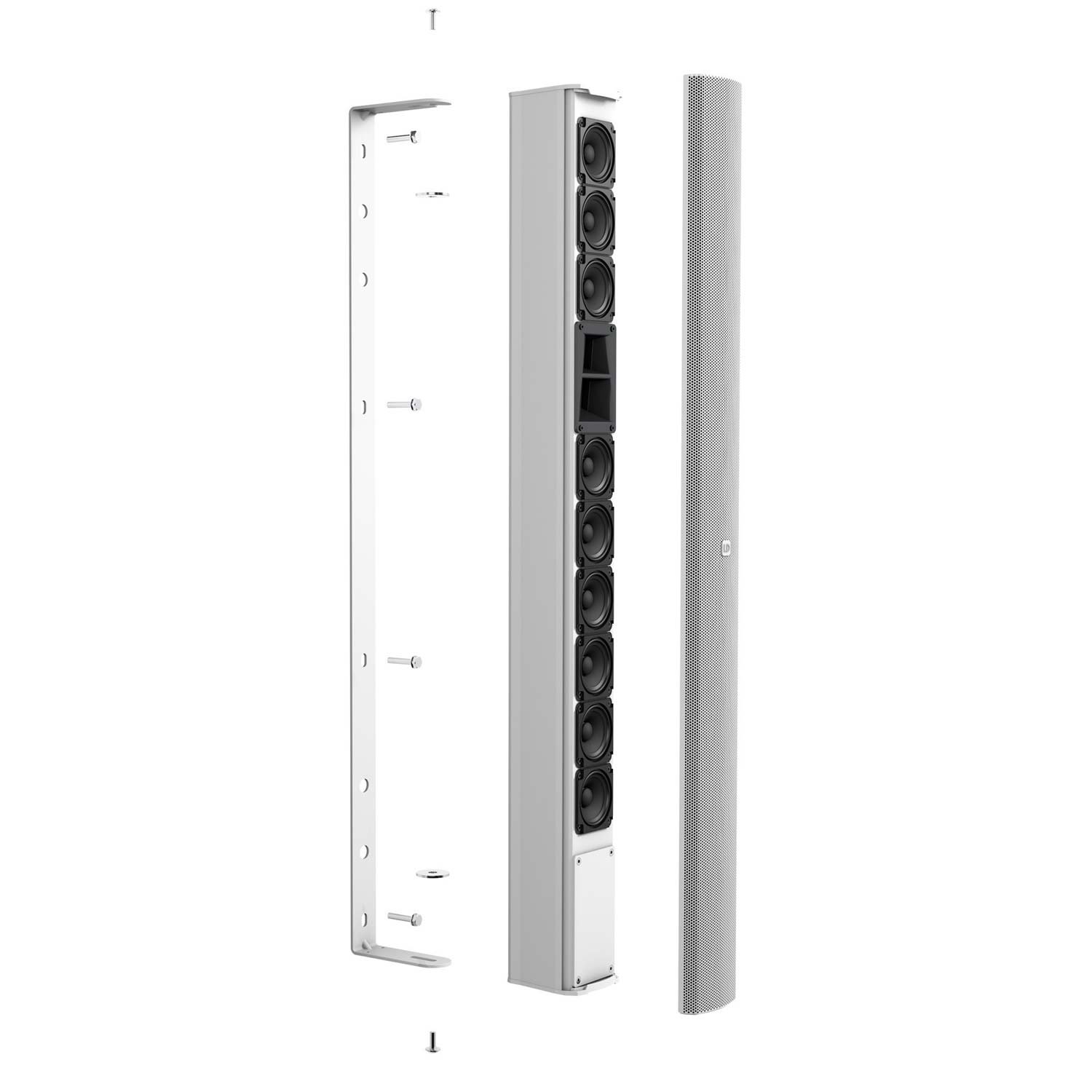

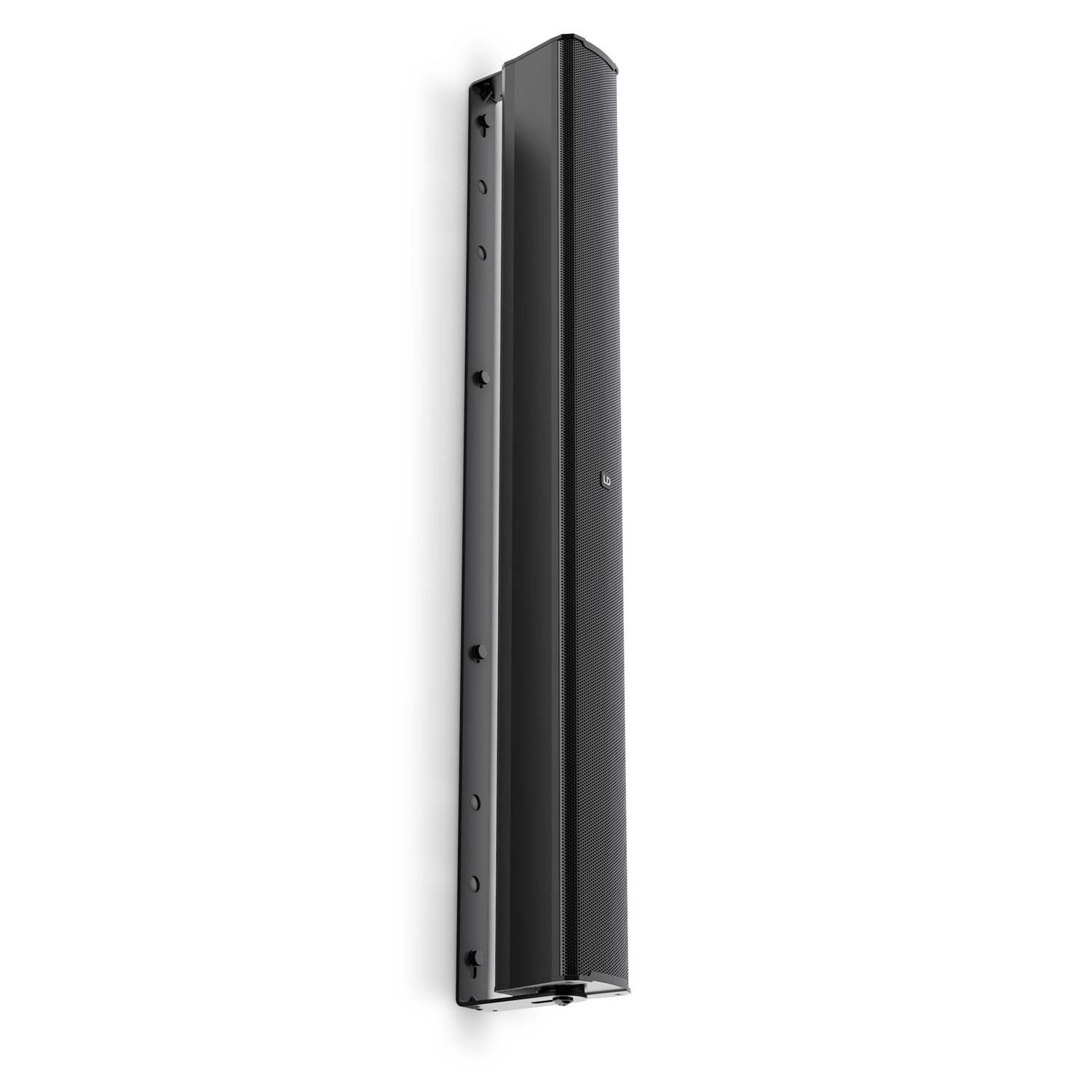

    • Easy Installation: Includes a U-bracket for surface mounting; optional tilt-and-swivel wall mount available for versatile placement.
    • Product Type: Installation Loudspeaker

    • Type: Passive

    • Low/Mid Woofer Dimensions: 9 x 3″ (76.2 mm)

    • Woofer Magnet: Ferrite

    • Woofer Brand: Custom-made

    • Horn: BEM-optimized CD Horn

    • HF Driver Dimensions: 2 x 1″ (25.4 mm)

    • HF Driver Magnet: Neodymium

    • HF Driver Brand: Custom-made

    • Dispersion (H x V): 120° x 30°

    • Load Rating (RMS): 120 W

    • Peak Power: 480 W

    • Frequency Response: 130 Hz – 19,000 Hz

    • Crossover Frequency: 2,500 Hz

    • SPL (1W/1m): 94 dB

    • Max. SPL: 116 dB

    • Impedance: 8 Ohms

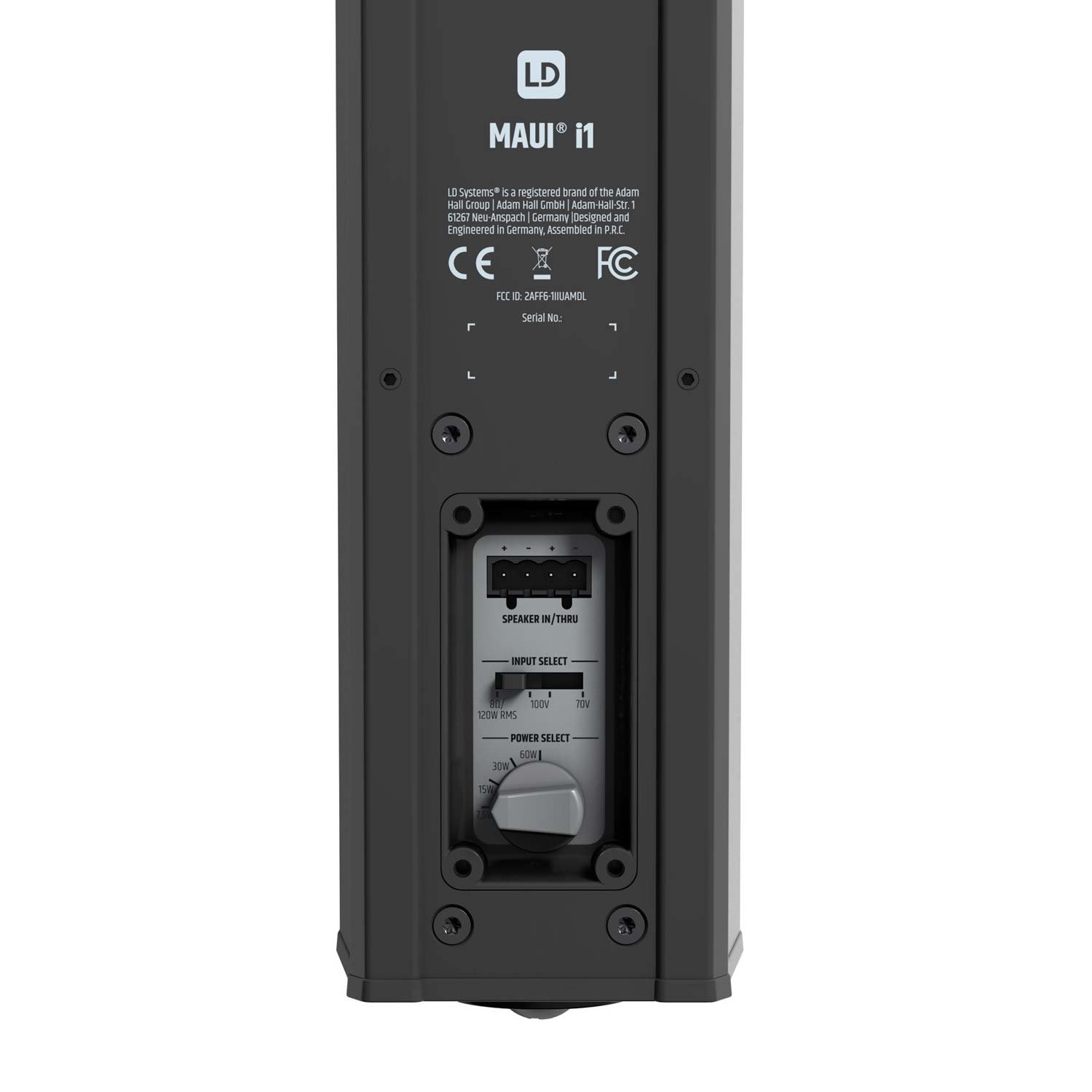

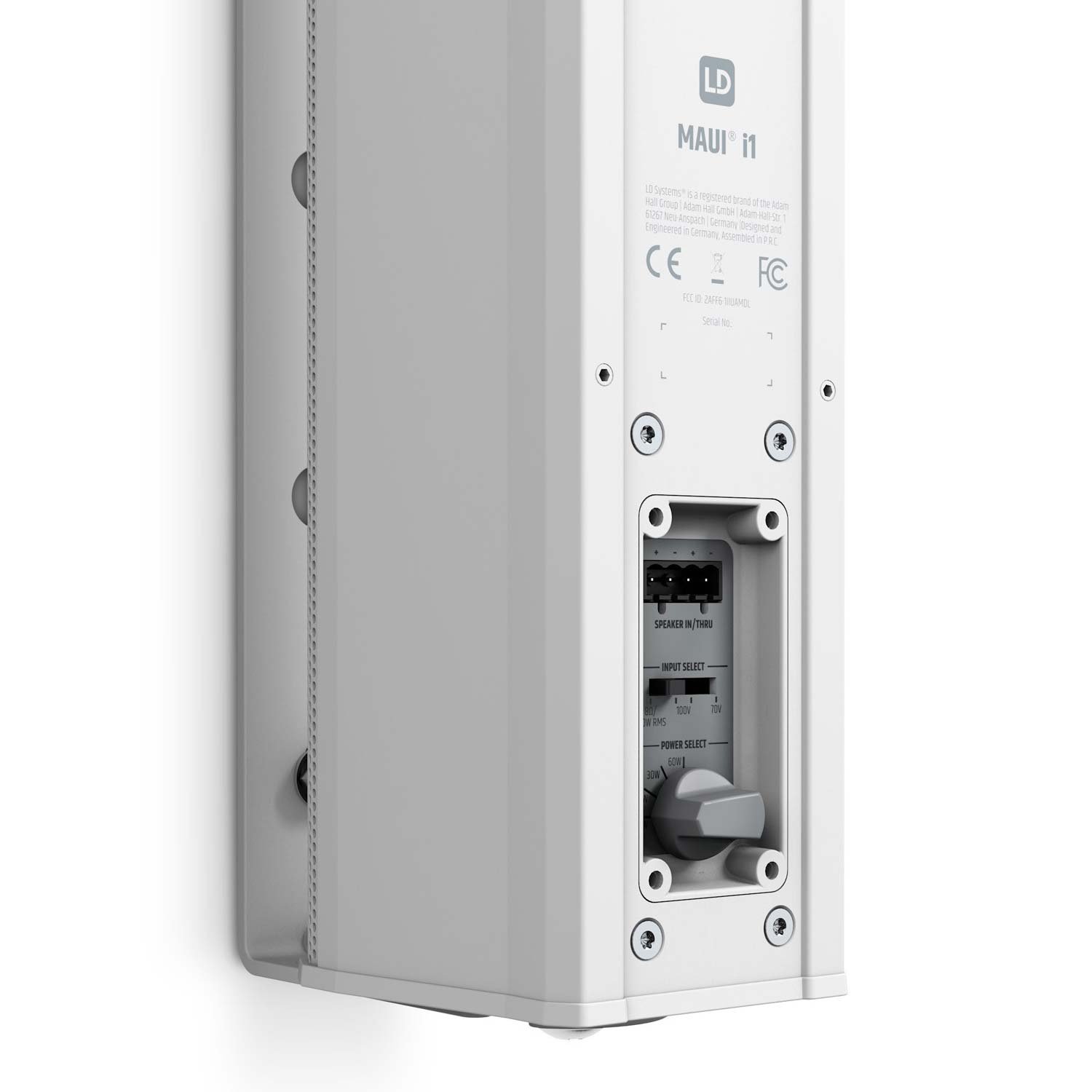

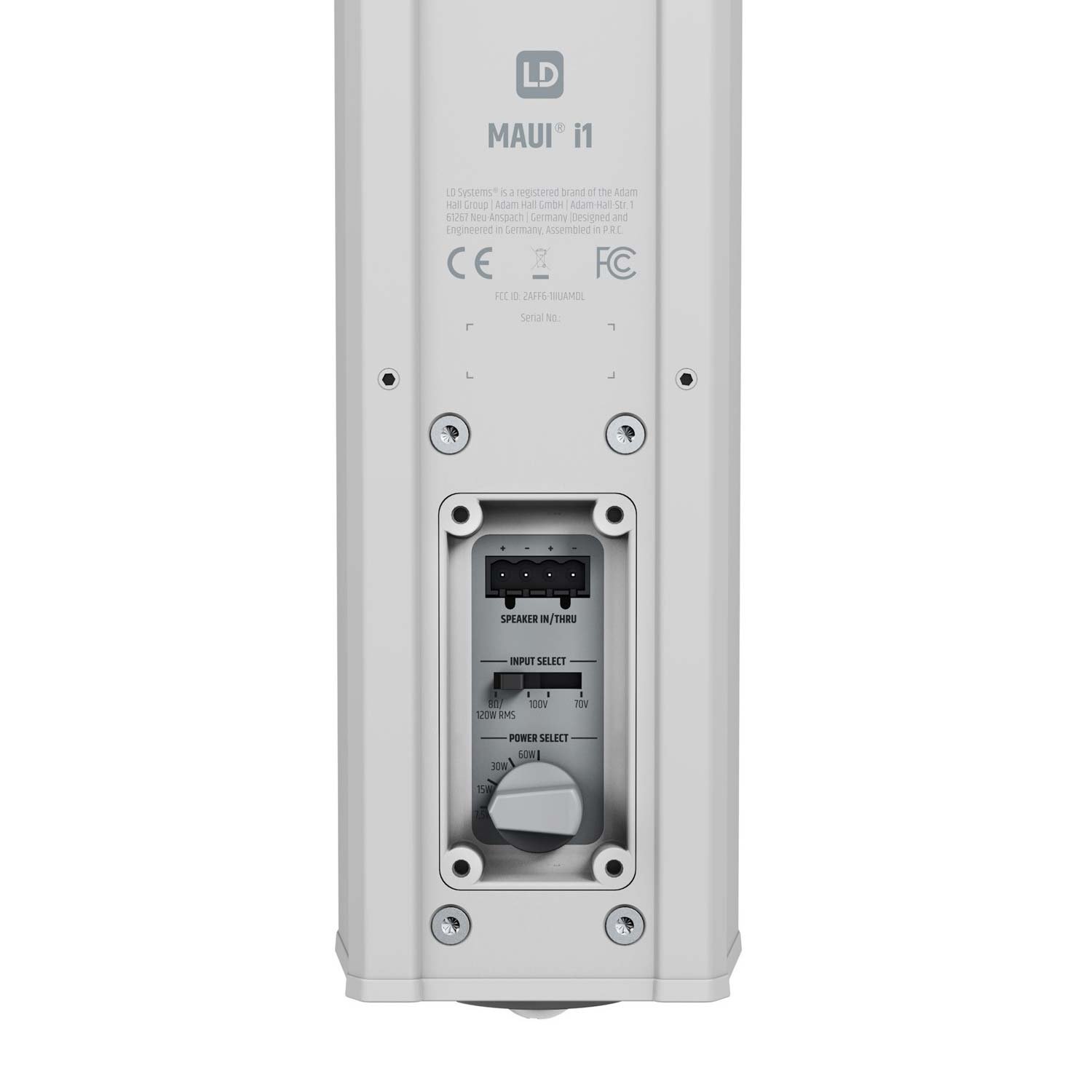

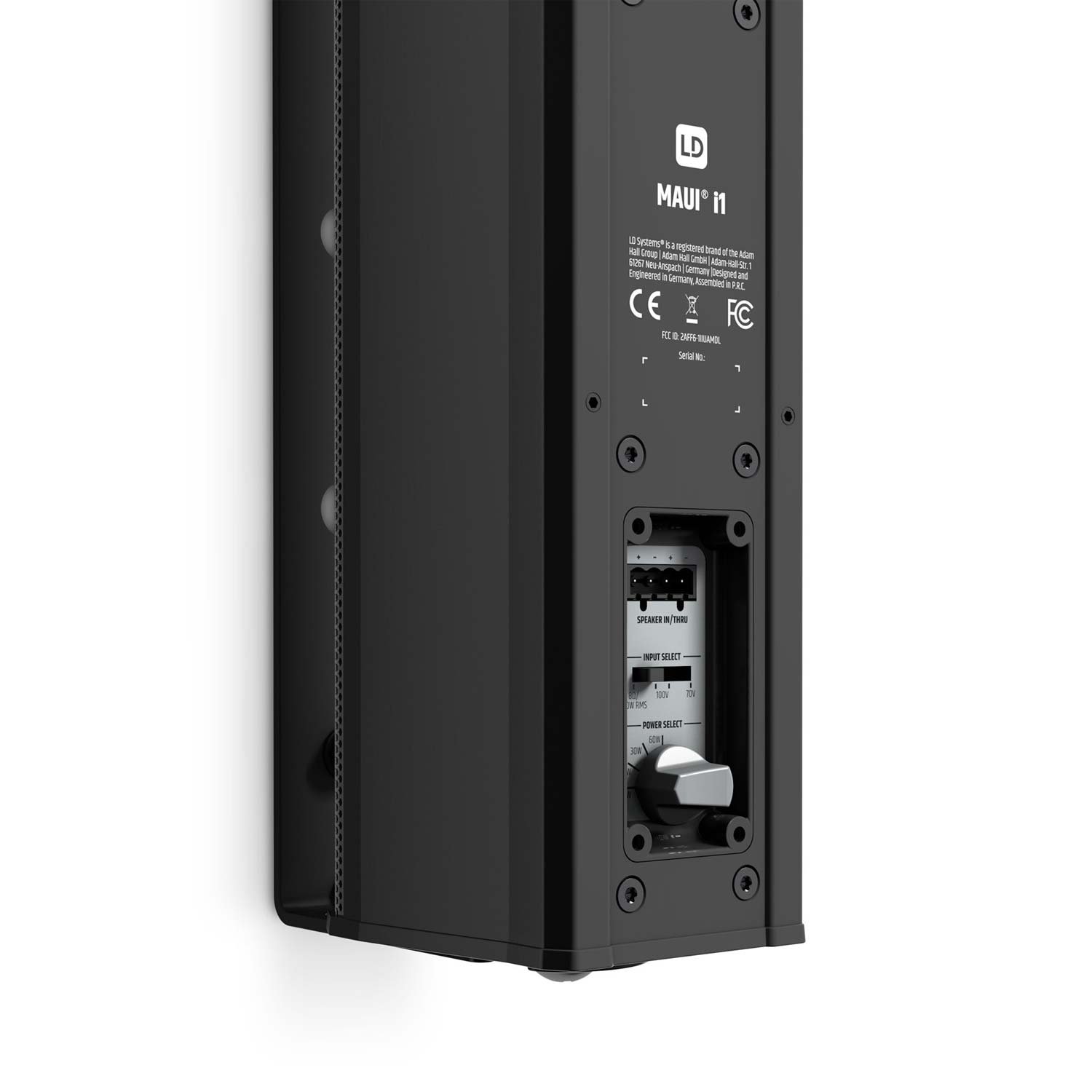

    • Input Selector Switch: 70 V / 100 V / 8 Ohms (transformer bypass)

    • 100V Transformer Power Taps: 60 W, 30 W, 15 W, 7.5 W

    • 70V Transformer Power Taps: 60 W, 30 W, 15 W, 7.5 W

    • Protection Class IP: IP65

    • Loudspeaker Inputs: 1

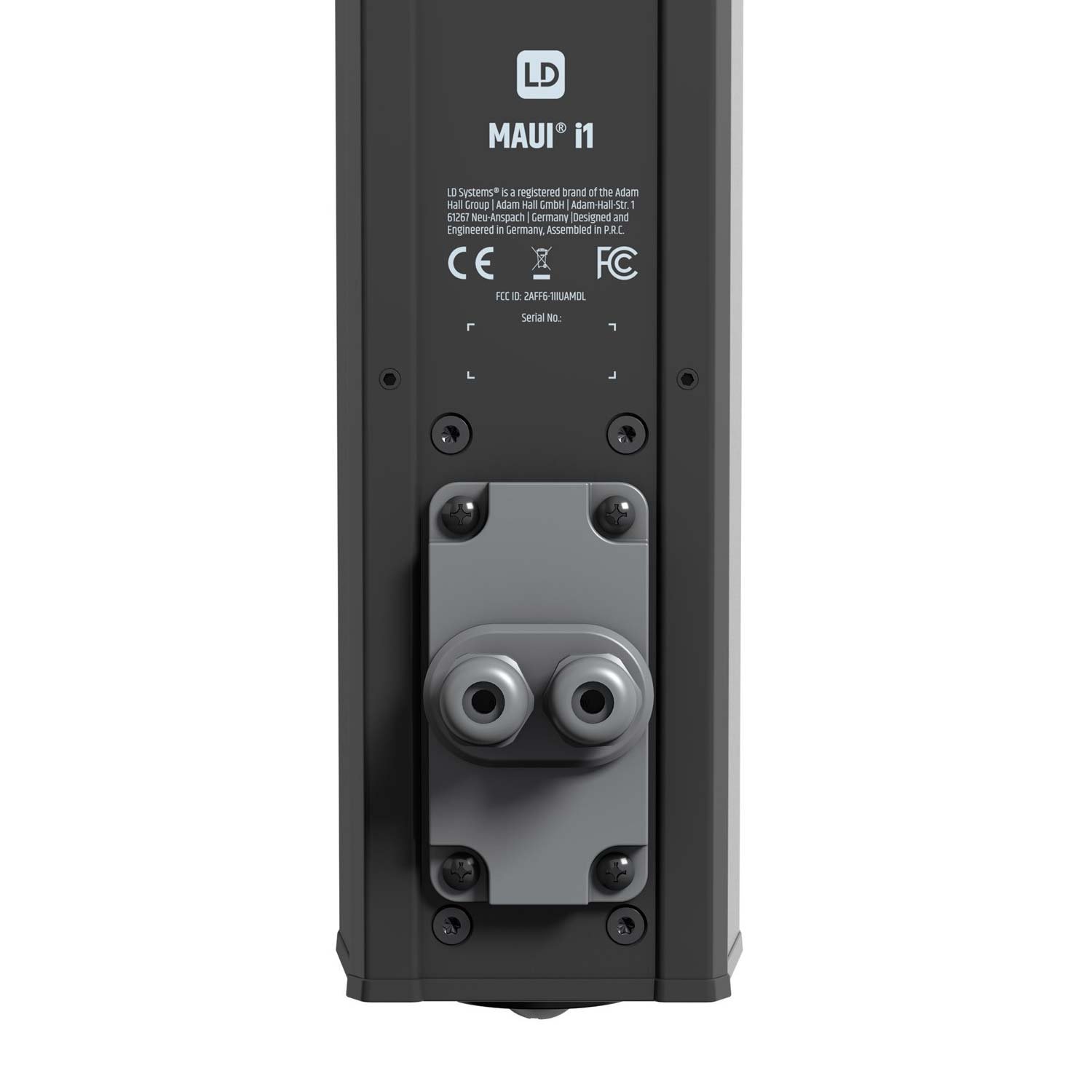

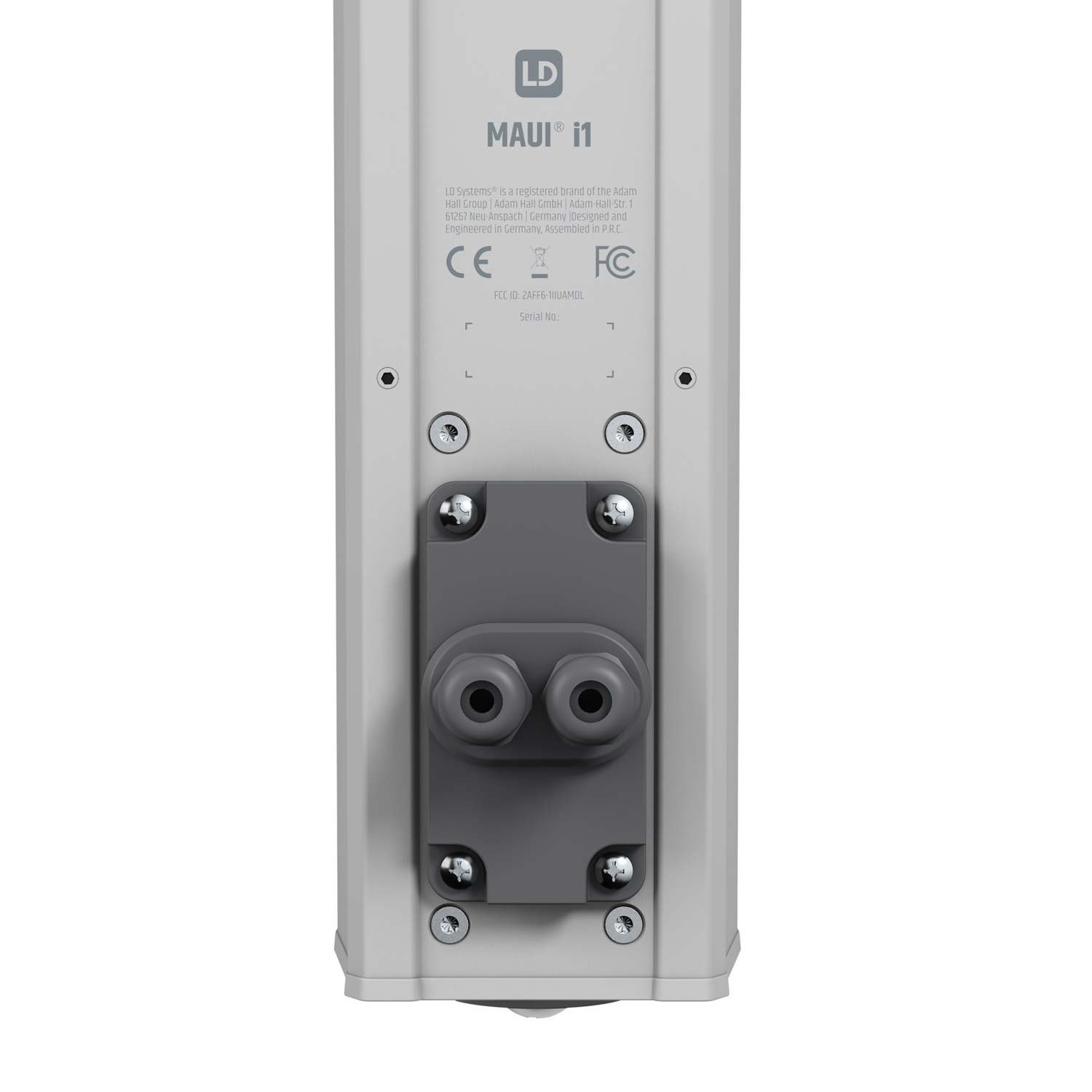

    • Speaker Input Connections: 4-pin Euro Terminal Block (Pitch – 5.08 mm)

    • Cabinet Material: Aluminum

    • Cabinet Construction: Closed

    Weight8.6 kg
    Dimensions10.5 × 8.5 × 98.5 cm

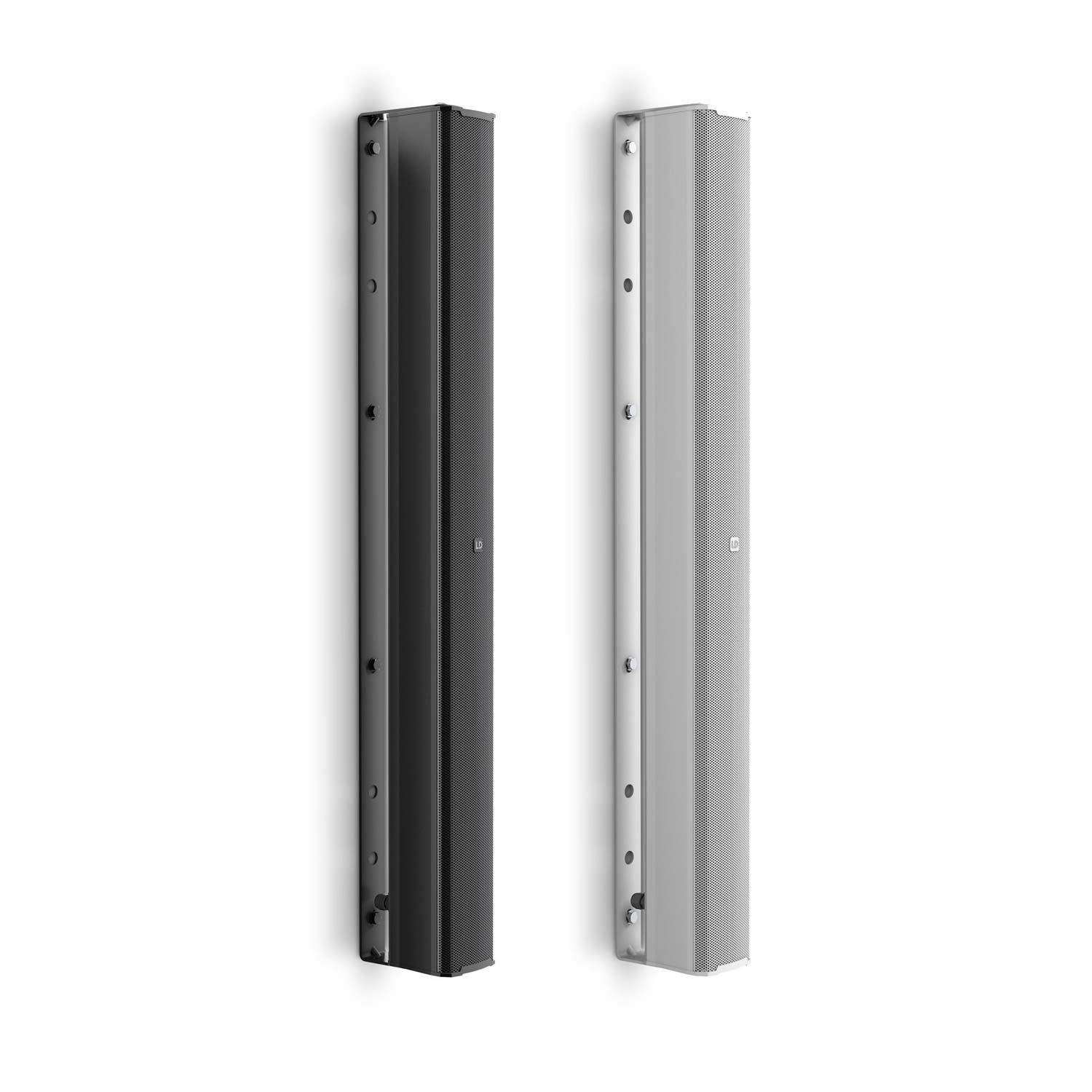

    Color

    Black, White
