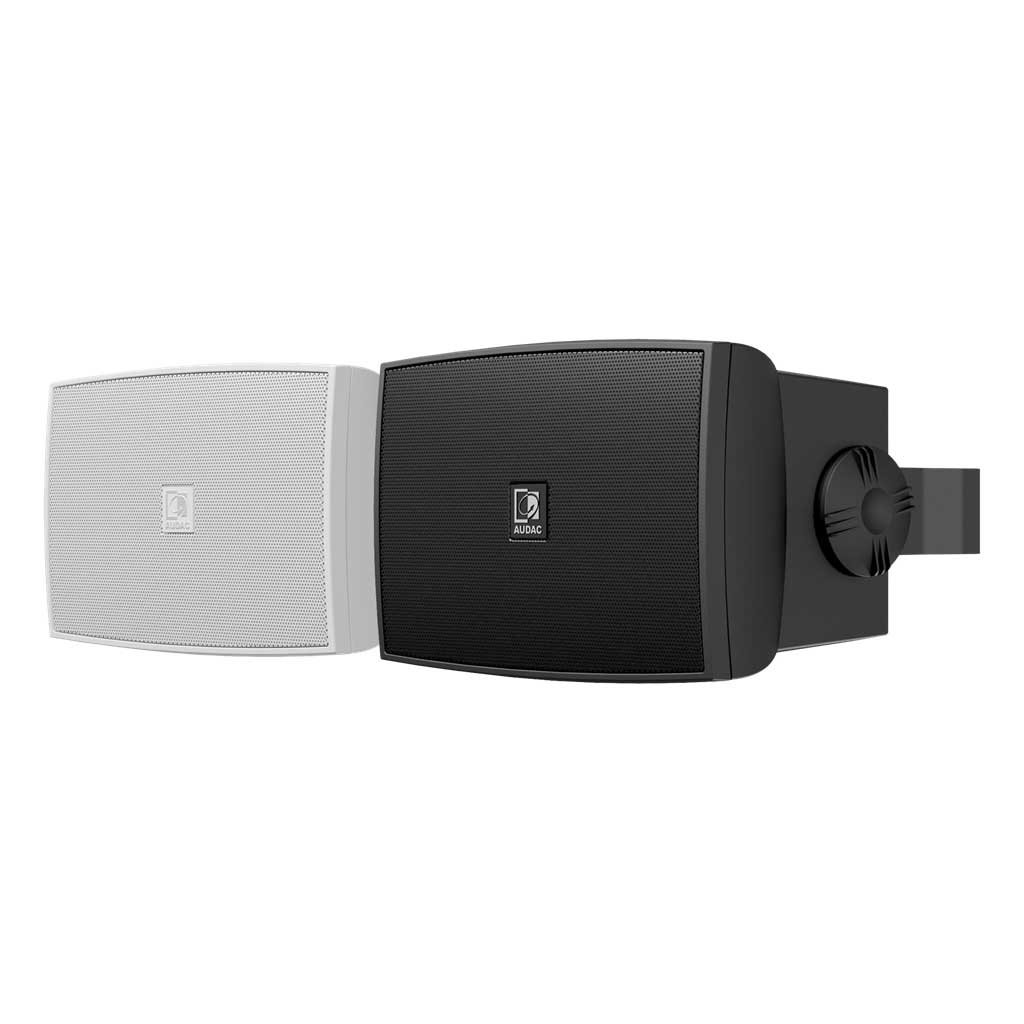

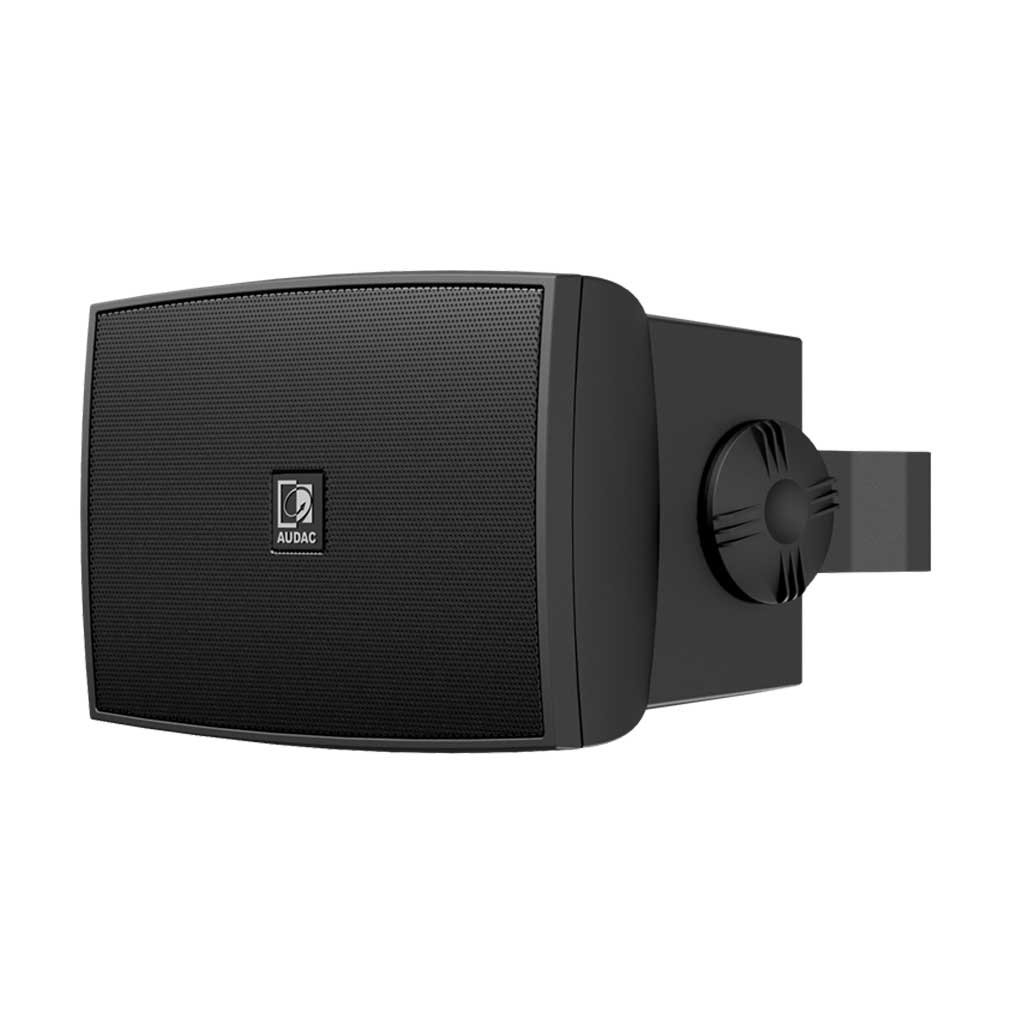

Audac WX302MK2 Universal Wall Speaker 3″

2,840 EGP

  • 1″ Dome tweeter
  • 3″ Low frequency loudspeaker
  • Vertical and horizontal mounting
  • Terminal block connection (MK2 version)
  • Multi-tapping 70V / 100V line transformer
Add to Wishlist
Add to Wishlist
  • Top Brands
  • Secure Payments
  • Cash On Delivery Available

The WX302 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 3” low-frequency loudspeaker, capable of delivering a power of 30 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 20 Watt, 10 Watt and 5 Watt. The elegant shaped synthetic enclosure is available in two different colours (black and white), making it blend into any environment going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

    • Type: 2-way performance speaker
    • High-Frequency Driver: 1″ dome tweeter
    • Low-Frequency Driver: 3″ loudspeaker
    • Frequency Response (±3 dB): 90 Hz – 18 kHz
    • Frequency Range (-10 dB): 60 Hz – 20 kHz
    • Crossover Frequency: 2.5 kHz (passive built-in)
    • Sensitivity (1W/1m): 85 dB
    • Maximum Sound Pressure Level (SPL): 100 dB (8 Ω), 95 dB (100 V)
    • Impedance: 8 Ω
    • Power Handling:
      • RMS/AES: 30 W
      • Program Power: 60 W
      • Peak Power: 120 W
    • Dispersion (Horizontal x Vertical): 100° x 100°
    • Line Transformer Tappings:
      • 250 Ω – 100 V / Not used – 70 V / 20 W
      • 500 Ω – 100 V / 20 W – 70 V / 10 W
      • 1000 Ω – 100 V / 10 W – 70 V / 5 W
      • 2000 Ω – 100 V / 5 W – 70 V / 2.5 W
    • Ingress Protection Rating: IP40
    • Construction: ABS enclosure with steel grill
    • Mounting Options: Vertical and horizontal mounting with included bracket
    • Dimensions (W x H x D): 188.4 x 129 x 164.8 mm (7.42″ x 5.079″ x 6.49″) including bracket
    • Weight: 1.66 kg (3.66 lbs)
    • Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
    • Available Colors:
      • Black: WX302MK2/B (RAL9005)
      • White: WX302MK2/W (RAL9003)
    • Included Accessories: Mounting bracket
    Weight1.66 kg
    Dimensions16.48 × 18.84 × 12.9 cm
    Color

    Black, White
