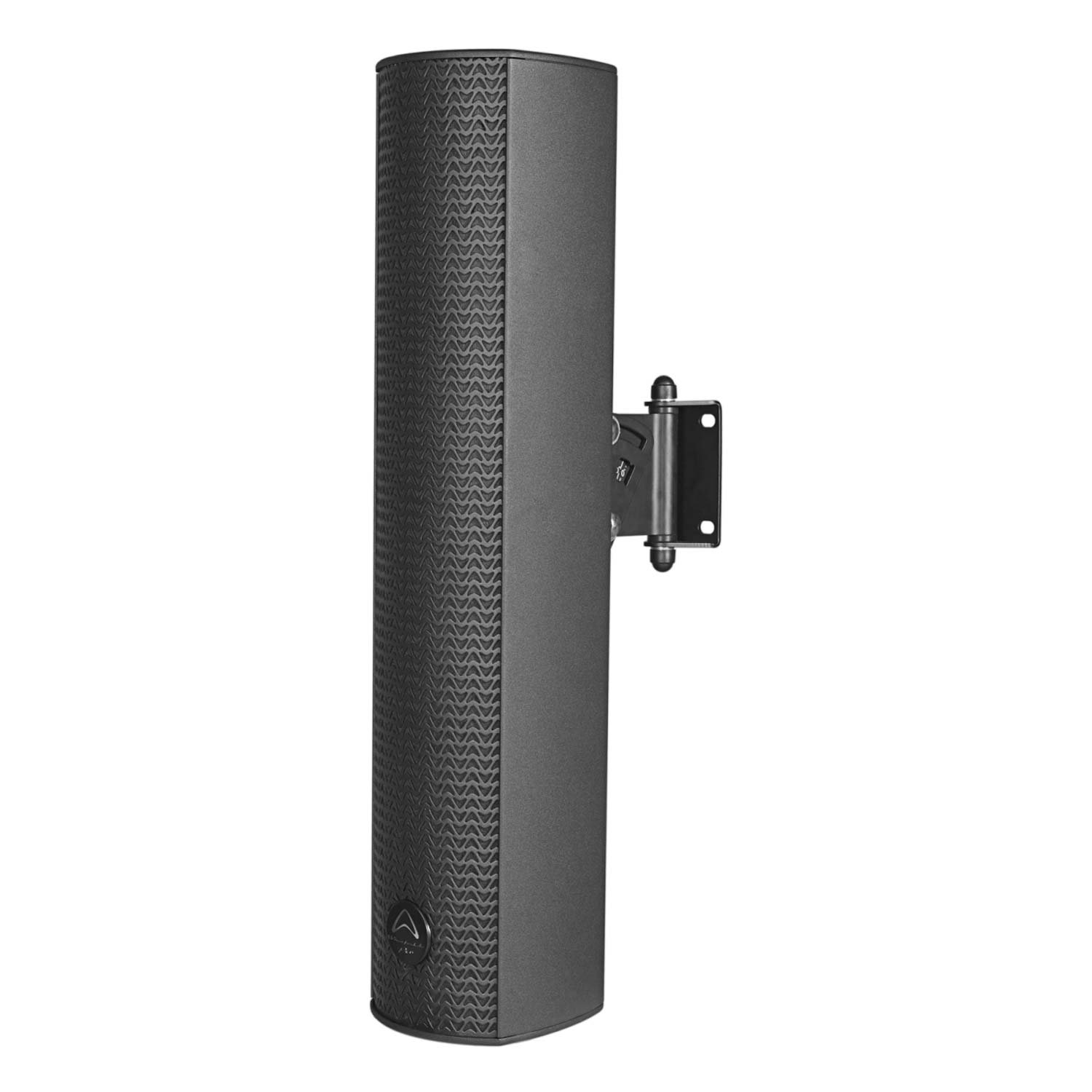

Wharfedale SIGMA-XV5 Passive Wall Speaker

17,500 EGP

✔️ Column array with 5 full-range 3″ drivers and HF compression driver
✔️ Delivers wide horizontal and tight vertical coverage
✔️ Compact aluminum enclosure with elegant finish
✔️ Ideal for houses of worship, conference halls, and retail spaces

Add to Wishlist
Add to Wishlist
SKU: SIGMA-XV5 Categories: , Tags: , , , , Brand:
  • Top Brands
  • Secure Payments
  • Cash On Delivery Available

The Wharfedale SIGMA-XV5 is a passive column speaker system designed for fixed installations where clarity, aesthetics, and controlled dispersion are essential. Featuring five 3″ full-range drivers paired with a 1″ high-frequency compression driver, it ensures detailed sound across a wide horizontal area while keeping vertical coverage focused. Its mini EVO-Fold waveguide improves high-frequency projection and consistency. Built into a compact aluminum enclosure, the SIGMA-XV5 blends seamlessly into modern architectural spaces. The speaker includes flexible mounting options and is also available in a transformer version (SIGMA-XV5T) for 70V/100V systems.

    • 5 × 3″ full-range drivers for mid and low frequencies
    • 1″ HF compression driver with mini EVO-Fold waveguide
    • Consistent 120° horizontal × 30° vertical dispersion
    • High output with low distortion
    • Durable aluminum enclosure with modern design
    • U-bracket included for fixed mounting
    • Optional bracket supports rotation and tilt

    Acoustics:

    • Power Handling (Continuous): 180 W AES

    • Power Handling (Program): 360 W

    • Power Handling (Peak): 720 W

    • Max SPL: 123 dB @ 1 m

    • Frequency Response (±3 dB): 160 Hz – 18 kHz

    • Frequency Response (-10 dB): 150 Hz – 20 kHz

    • Sensitivity: 95 dB (2.83 V / 1 m)

    • Impedance: 8 Ohms

    • Crossover Frequency: 2.5 kHz

    • Recommended HPF: 160 Hz, 18 dB/oct Butterworth

    Coverage:

    • Horizontal Coverage: 120°

    • Vertical Coverage: 30°

    Enclosure & Construction:

    • Material: Aluminum

    • Grille: 1.2 mm steel, painted

    • Finish Options: Black or white paint

    • Connectors: 1 × speakON, 1 × barrier strip

    Mounting Options:

    • Included: U-bracket

    • Optional: WPB-SV bracket (15° tilt, 180° rotation)

    Weight7.6 kg
    Dimensions14.5 × 12.6 × 72 cm
