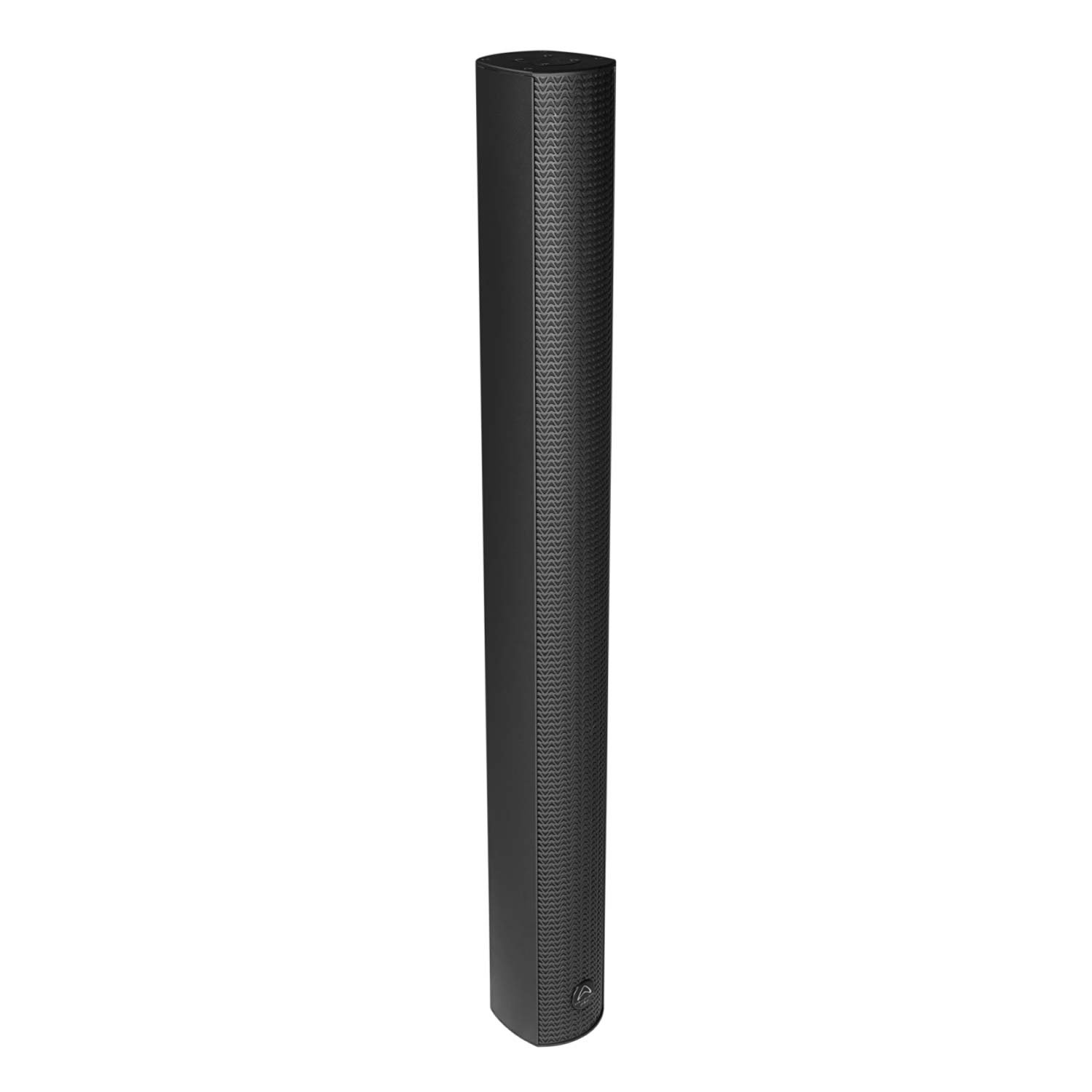

The Wharfedale SIGMA-XV9T is a passive column array loudspeaker specifically designed for fixed installation applications that require clean visuals and highly intelligible audio. It includes nine 3-inch full-range drivers and two 1-inch high-frequency compression drivers loaded with Wharfedale’s mini EVO-Fold waveguides. The “T” version of the SIGMA-XV9 incorporates 70V/100V transformer taps, allowing it to be easily integrated into constant voltage systems. With a sturdy aluminum enclosure and multiple mounting options, it’s perfect for commercial venues, houses of worship, and conference spaces.
Wharfedale SIGMA-XV9T Passive Wall Speaker
31,500 EGP
✔️ Passive column speaker with transformer taps for 70V/100V systems
✔️ 9 × 3″ drivers and 2 × 1″ HF compression drivers
✔️ Precise 120° horizontal and 20° vertical dispersion
✔️ Ideal for commercial installs and public spaces
- Top Brands
- Secure Payments
- Cash On Delivery Available
- 9 × 3″ full-range drivers
- 2 × 1″ HF compression drivers with mini EVO-Fold waveguides
- 120° horizontal × 20° vertical coverage
- Integrated 70V/100V transformer taps
- Durable aluminum housing with sleek design
- U-bracket included, optional WPB-SV bracket for tilt and rotation
Acoustics:
Power Handling (Continuous): 360 W
Power Handling (Program): 720 W
Power Handling (Peak): 1440 W
Max SPL: 128 dB @ 1 m
Frequency Response (±3 dB): 130 Hz – 18 kHz
Frequency Response (-10 dB): 120 Hz – 20 kHz
Sensitivity: 97 dB (2.83 V / 1 m)
Impedance: 4 Ohms
Crossover Frequency: 2.5 kHz
Recommended HPF: 160 Hz, 18 dB/oct Butterworth
Coverage:
Horizontal Coverage: 120°
Vertical Coverage: 20°
Transformer Taps:
70V: 15 W, 30 W, 60 W, 120 W
100V: 30 W, 60 W, 120 W
Enclosure & Construction:
Material: Aluminum
Grille: 1.2 mm steel, painted
Finish Options: Black or white paint
Connectors: Barrier strip
Mounting Options:
Included: U-bracket
Optional: WPB-SV bracket (15° tilt, 180° rotation)
| Weight | 15.4 kg |
|---|---|
| Dimensions | 14.5 × 12.6 × 121 cm |
